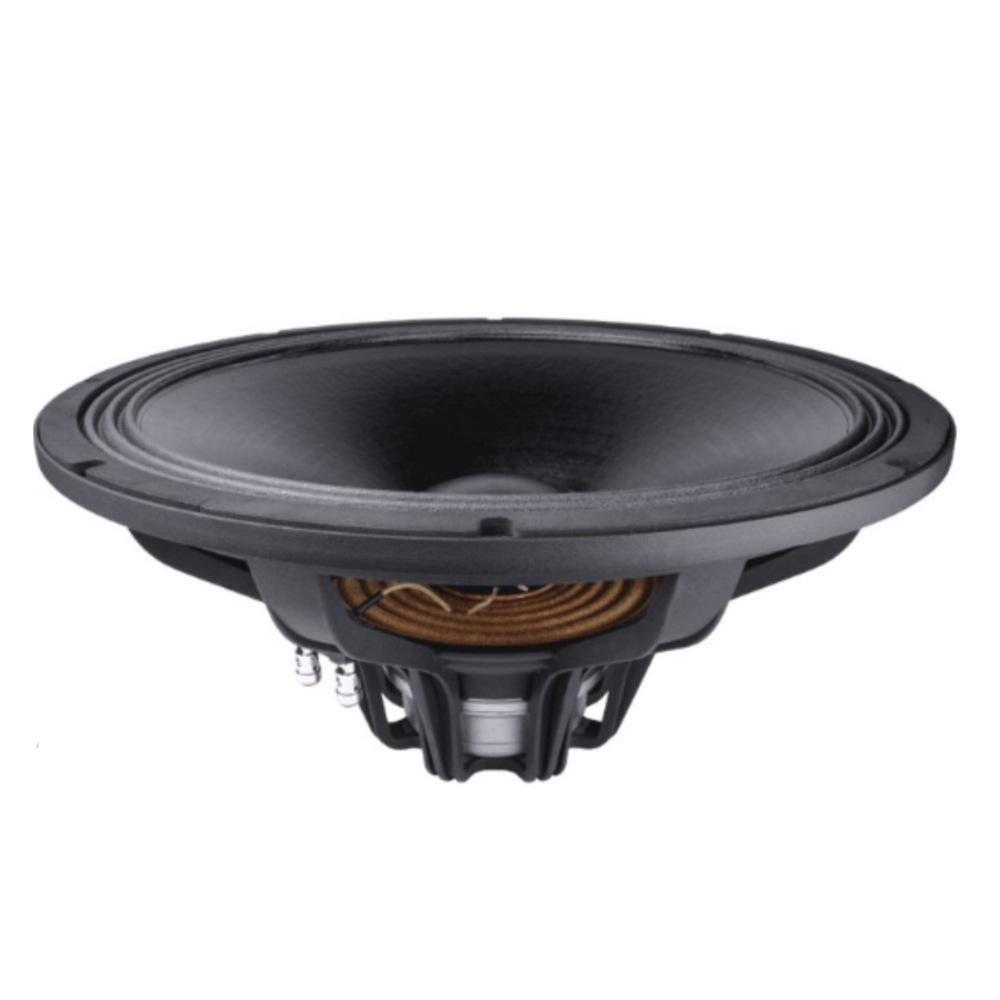

Faital Pro 18FX600 8ohm 18″ 700 watt Neo Speaker

Faital Pro 18FX600 8ohm 18″ 700 watt Neo Speaker

Product specifications:

• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.6 Ohm
• AES Power Handling: 700 W
• Maximum Power Handling: 1400 W
• Sensitivity (1W/1m): 99 dB
• Frequency Range: 35÷2500 Hz
• Voice Coil Diameter: 77 mm (3 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 26.5 mm (1.04 in)
• Magnetic Gap Depth: 12 mm (0.47 in)
• Flux Density: 1.26 T
• Magnet: Neodymium Ring
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround: Triple Roll
• NET Air Volume filled by Loudspeaker: 5.3 dm^3 (0.187 ft^3)
• Spider Profile: 1x variable height waves

Thiele and small parameters:

• Fs: 32 Hz
• Re: 5 Ohm
• Qes: 0.31
• Qms: 9.8
• Qts: 0.30
• Vas: 257.3 dm^3 (9.08 ft^3)
• Sd: 1213 cm^2 (188.02 in^2)
• Xmax: 11.25 mm
• Xdamage: 22.9 mm
• Mms: 175.0 g
• Bl: 24.5 N/A
• Le: 1.35 mH
• Mmd: 127.3 g
• Cms: 0.13 mm/N
• Rms; 3.8 kg/s
• Eta Zero: 2.92 %
• EBP: 110 Hz

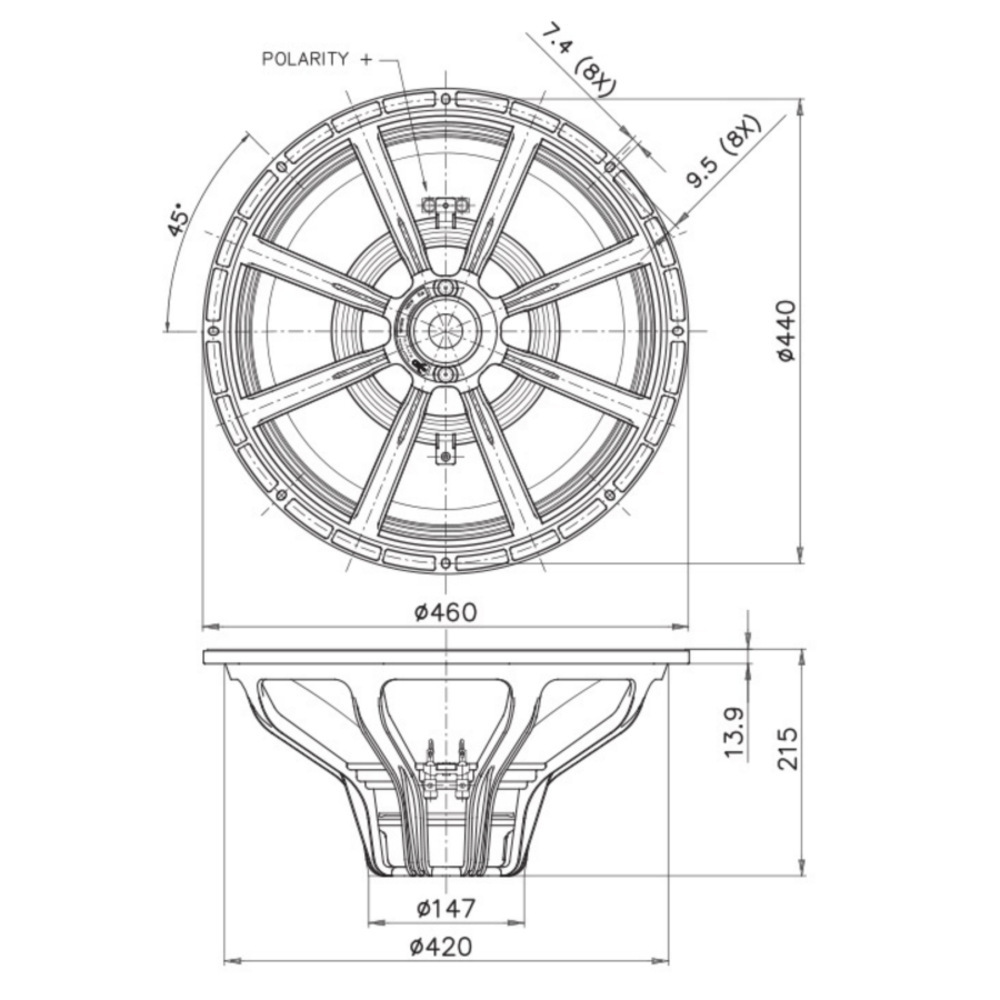

Dimensions:
