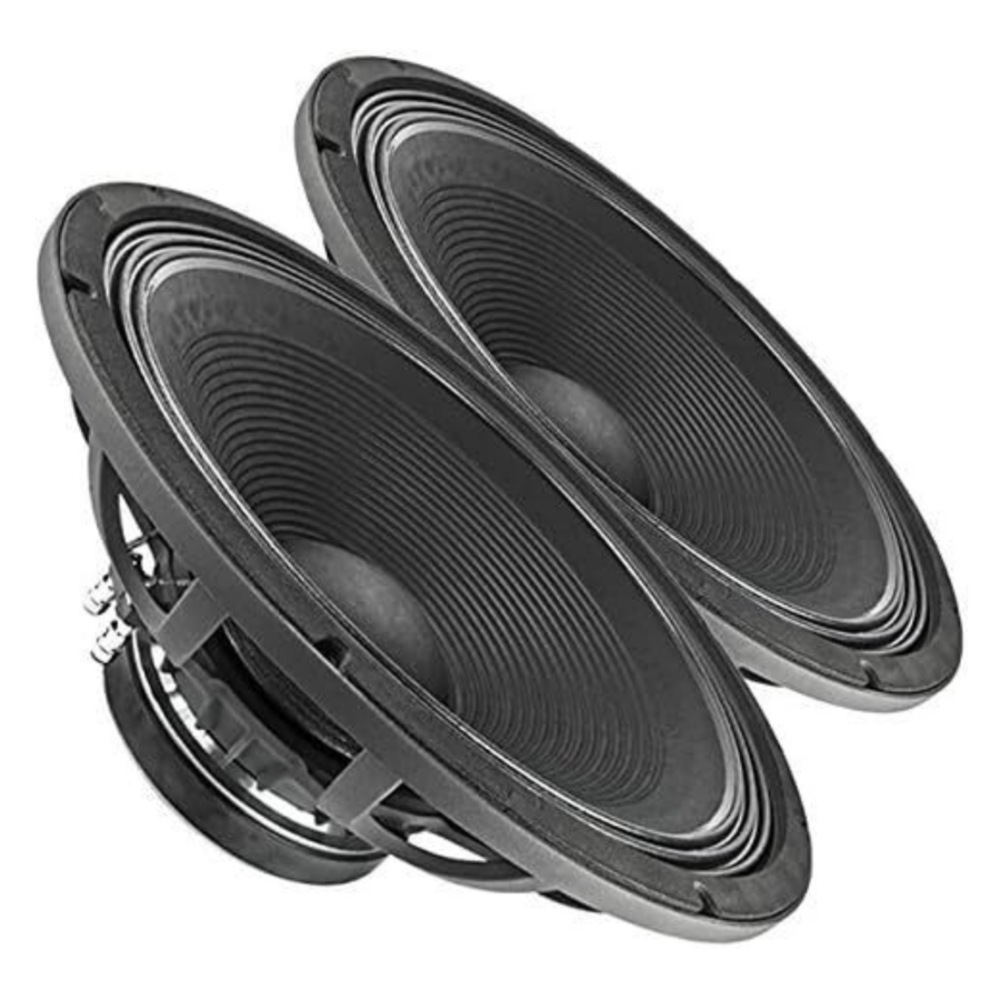

Faital Pro 18HP1010 4ohm 18″ 1000 watt Ferrite Speaker

Faital Pro 18HP1010 4ohm 18″ 1000 watt Ferrite Speaker

Product specifications:

• Nominal Impedance; 4 Ohm
• Minimum Impedance: 3.5 Ohm
• AES Power Handling: 1000 W
• Maximum Power Handling: 2000 W
• Sensitivity (1W/1m): 98 dB
• Frequency Range: 35÷2000 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 23 mm (0.91 in)
• Magnetic Gap Depth; 10.5 mm (0.41 in)
• Flux Density: 1.05 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround: Triple Roll
• NET Air Volume filled by Loudspeaker: 7.1 dm^3 (0.251 ft^3)
• Spider Profile: 2x non-adjacent symmetrical constant height waves

Thiele and small parameters:

• Fs: 35 Hz
• Re: 2.7 Ohm
• Qes: 0.32
• Qms: 7.8
• Qts: 0.31
• Vas: 225.9 dm^3 (7.98 ft^3)
• Sd: 1207 cm^2 (187.09 in^2)
• Xmax: 9.75 mm
• Xdamage: 21.9 mm
• Mms: 186.2 g
• Bl: 18.4 N/A
• Le: 1.26 mH
• Mmd: 138.8 g
• Cms: 0.11 mm/N
• Rms: 5.2 kg/s
• Eta Zero: 2.88 %
• EBP: 109 Hz

Dimensions:

• Nominal Diameter:460 mm (18 in)
• Overall Diameter:460 mm (18.11 in)
• Bolt Circle Diameter:440 mm (17.32 in)
• Baffle Cutout Diameter:421 mm (16.57 in)
• Depth: 203.5 mm (8.01 in)
• Flange and Gasket Thickness: 13.7 mm (0.54 in)
• Net Weight: 10.1 kg (22.3 lb)
• Shipping Box
• (Single Carton Box): 503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in)
• Shipping Weight: 11.5 kg (25.4 lb)
