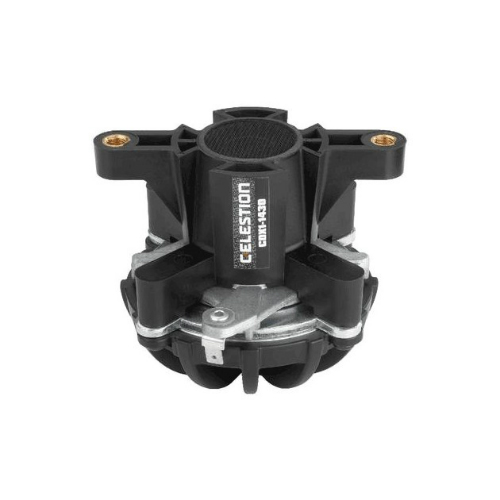

Celestion CDX1-1430 8 Ohm 1″ 50W Compression Driver

Celestion CDX1-1430 8 Ohm 1″ 50W Compression Driver

General Specifications:

• The CDX1-1430 delivers an impressive 50 W (rms) power with a nominal impedance of 8Ω and a sensitivity of 108 dB.
• The aluminium heatsink isn’t just beautiful, it’s carefully designed for rapid conduction of heat away from the magnet to ensure optimum performance.
• Therefore the 50 W performance is achieved without a significant weight penalty, opening up the use of this Neodymium compression driver to high power application areas.

Key Features:

• 1″ exit neodymium compression driver with 1.4″ copper clad aluminium voice coil.
• 50 W rms power handling (AES standard) and 108 dB sensitivity.
• Copper sleeve on pole reduces inductive rise for improved HF performance.
• Ferrofluid in magnet gap prevents sensitivity loss through thermal compression.
• Aluminium diaphragm combined with elastomer surround delivers lower
  distortion performance.
• Finite Element Analysis (FEA) used to optimise both magnet and acoustic design.
• Screw mounting adaptor available.
