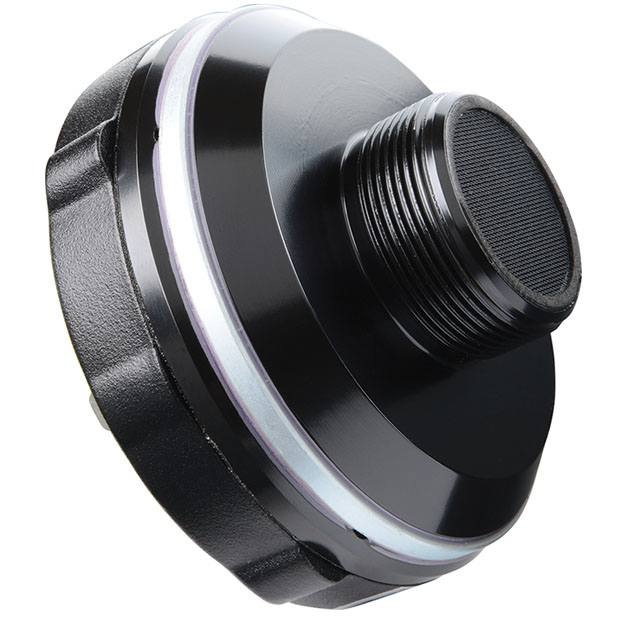

Celestion CDX1-1731 8 Ohm 1″ 40W Compression Driver

Celestion CDX1-1731 8 Ohm 1″ 40W Compression Driver

General Specifications:

• Diaphragm Material PETP film
• Power Rating 75 W
• Nominal impedance 8Ω
• Sensitivity 110 dB
• Min. Crossover (Hz) 2200
• Voice coil diameter 1.75”, 44.5mm
• Magnet Material NEO
• Fitting Fitting Screw 1.38”, 35 mm diameter
• Frequency Range 1200 Hz – 20000 Hz
• Width, Depth (mm) w 120, d 56
• Unit Weight 1.7 lb, 0.75 kg.

Key Features:

• A scew-mountable version of the Celestion CDX1-1730, this compact and lightweight compression driver features an edgewound voice coil and exceptional heat management via an its aluminium heatsink.
• In addition, Celestion’s proprietary Sound Castle™ technology is employed to reduce distortion and enabling superior lower mid band distortion.
• CDX1-1731 represents a cost-effective, high performance solution for a wide variety of applications.
• The CDX1-1731 high power compression driver is suitable for use in 2-way and 3-way systems and are field repairable.
• Throat exit / diameter (mm/in) 25.4/1.
