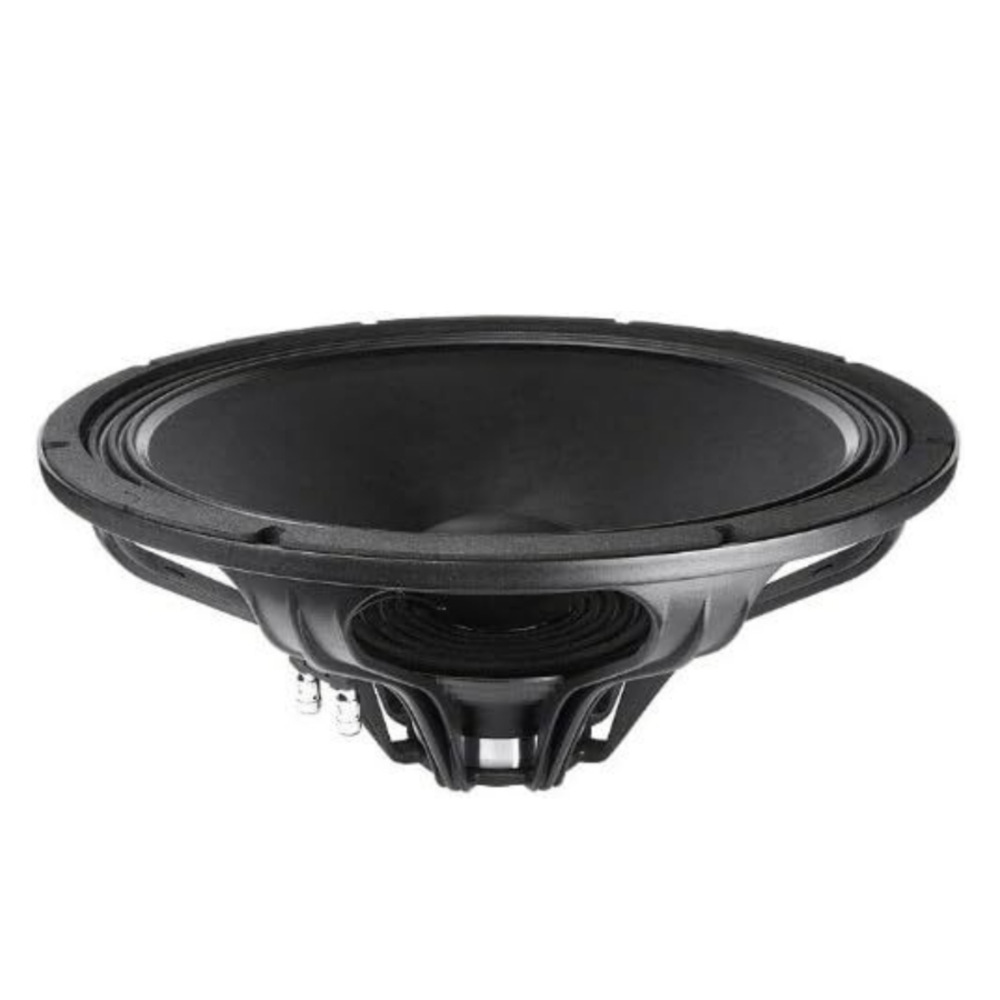

Faital Pro 18FH500 4ohm 18″ 600 watt Neo Speaker
£259.15
18″ Bass Speaker
Lightweight Neodymium Magnet
4 Ohms
30Hz-3.15kHz
600 Watts AES
1,200 Watts Program
High 99dB SPL
Very High 9.25mm Xmax For A Clean Strong Bass Sound
Designed For Bass Reflex Front Load Cabinets
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands
Available on back-order
Email when stock available
Faital Pro 18FH500 4ohm 18″ 600 watt Neo Speaker
Product description:
Optimised for heavy-duty professional audio applications, the 18FH500 is part of the coverted Five Hundred range from FaitalPRO – offering excellent performance and astonishing value. The 18FH500 offers a wide frequency 30hz-3150hz and a 9.25mm Xmax ideal for bass reflex cabinets.
Nominal Specifications
| Nominal Diameter | 460 mm (18 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 424 mm (16.7 in) |
| Depth | 202 mm (7.95 in) |
| Flange and Gasket Thickness | 13.9 mm (0.55 in) |
| Net Weight | 4.6 kg (10.1 lb) |
| Shipping Box (Single Carton Box) |
503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in) |
| Shipping Weight | 6 kg (13.2 lb) |
Technical Parameters
| Nominal Impedance | 4 Ohm |
| Minimum Impedance | 3.95 Ohm |
| AES Power Handling (1) | 600 W |
| Maximum Power Handling (2) | 1200 W |
| Sensitivity (1W/1m) | 98 dB |
| Frequency Range | 30÷3150 Hz |
| Voice Coil Diameter | 77 mm (3 in) |
| Winding Material | Cu |
| Former Material | Glass Fiber |
| Winding Depth | 22,4 mm (0.88 in) |
| Magnetic Gap Depth | 10.5 mm (0.41 in) |
| Flux Density | 1.2 T |
| Magnet | Neodymium Slug |
| Basket Material | Aluminum |
| Demodulation | No |
| Cone Surround (3) | Triple Roll |
| NET Air Volume filled by Loudspeaker | 5.7 dm^3 (0.201 ft^3) |
| Spider Profile | 1x variable height waves |
Thiele and small parameters
| Fs | 28 Hz |
| Re | 3.3 Ohm |
| Qes | 0.3 |
| Qms | 7.2 |
| Qts | 0.29 |
| Vas | 456.7 dm^3 (16.13 ft^3) |
| Sd | 1207 cm^2 (187.09 in^2) |
| Xmax (4) | 9.45 mm |
| Xdamage (5) | 17.5 mm |
| Mms | 143.9 g |
| Bl | 16.7 N/A |
| Le | 1.07 mH |
| Mmd | 96.5 g |
| Cms | 0.22 mm/N |
| Rms | 3.5 kg/s |
| Eta Zero | 3.25 % |
| EBP | 93 Hz |
PART NUMBER (P/N)
| Push Terminals – 4 Ohm Version | 04604288 |
Designed & manufactured in Italy and provided exclusively by Lean Business, this FaitalPRO speaker comes complete with 2 years warranty.
Why Choose Lean Business Audio?
50 years of experience of designing, building and supplying Home, Car and Professional Audio.
Huge stocks of leading loudspeakers and audio brands
KEF, Celestion, Eminence, WGS, Montage, BMS Speakers, Faital Pro, Eighteen Sound, Ciare
Low Worldwide shipping rates.
Free Delivery on selected brands with the UK.
Price matching.
For more information please contact us at: +44(0)1473 744089
Or Email us at: sales@lean-business.co.uk
| Weight | 10 kg |
|---|---|
| Brand | FaitalPRO |
| Magnet type | Neodymium |
| Size | 18" |
