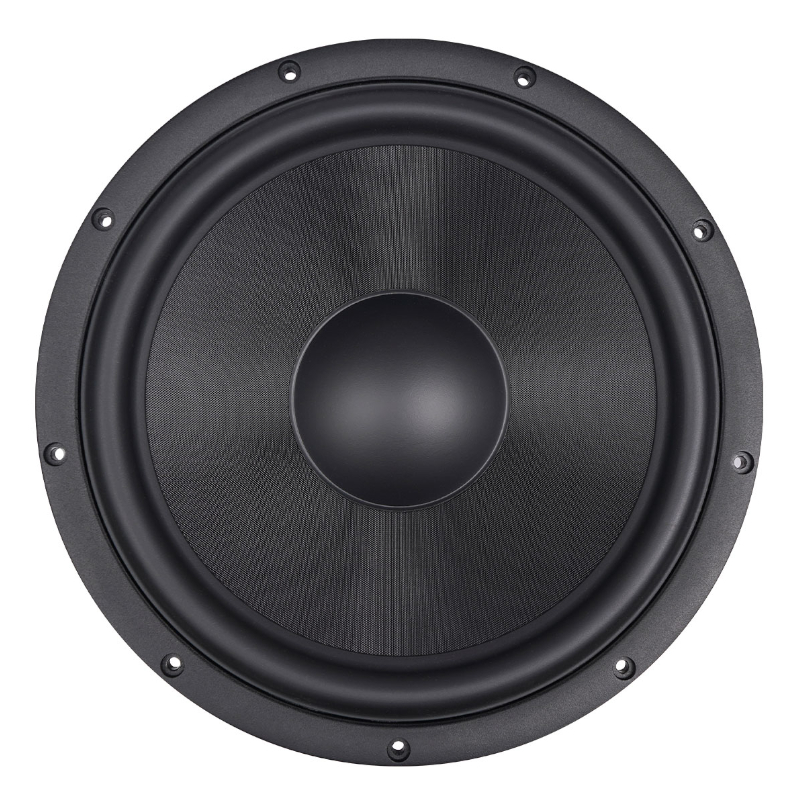

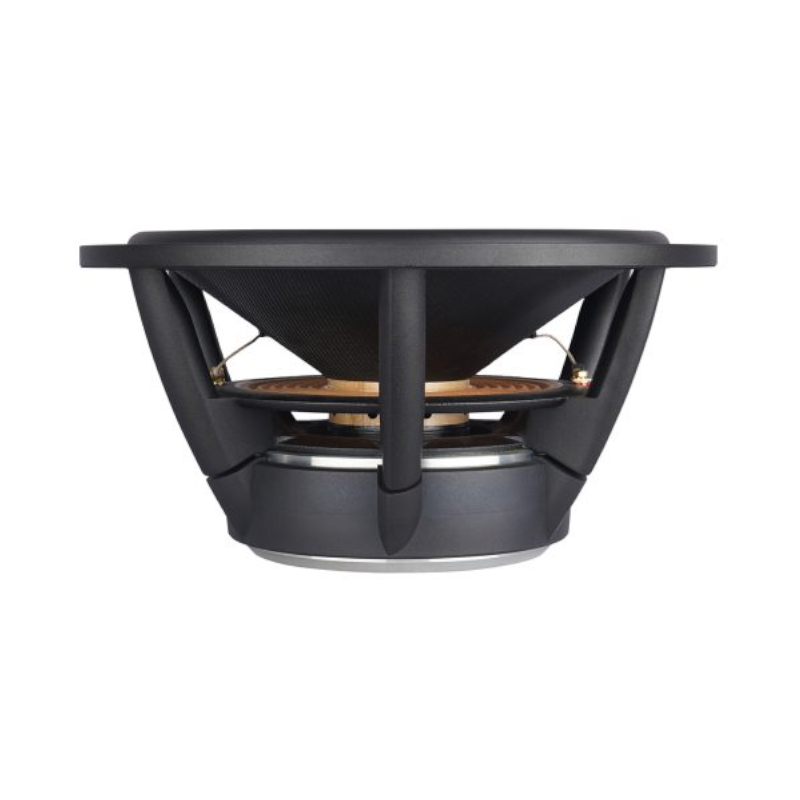

SB ACOUSTICS SATORI WO34HC-8 8 Ohm 13.5″ SUBWOOFER Loudspeaker
£279.42
- Light weight rigid honeycomb cone (hard paper honeycomb with fiber glass skin layers)
- 3″ copper voice coil for improved power handling
- Long life silver lead wires
- Vented pole piece for minimum compression
- Vented cast aluminum chassis for optimum strength and low compression
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands.
Only 2 left in stock (can be backordered)
SB ACOUSTICS SATORI WO34HC-8 13.5″ 8ohm Ferrite 75.6mm Voice coil, honeycomb cone, rubber surround, ferrite motor, aluminum chassis, dual shorting rings
Key Features:
- Rigid honeycomb cone (black fiberglass skin layers)
- Large vented motor system with undercut pole piece and dual shorting rings
- Vented cast aluminum chassis
- Linear symmetric suspension
- Soft low damping rubber surround
- 3″ copper voice coil with non-conductive fiberglass former
- Long life silver lead wires
SATORI WO34HC-4 Specifications:
- Nominal Impedance 8 Ω
- DC resistance, Re 6.8 Ω
- Voice coil inductance, Le 1.00 mH
- Effective piston area, Sd 585 cm2
- Voice coil diameter 75.6 mm
- Voice coil height 24.6 mm
- Air gap height 8 mm
- Linear coil travel (p-p) 16.6 mm
- Magnetic flux density 1.17 T
- Magnet weight 3.52 kg
- Net weight 9.52 kg
- Free air resonance, Fs 20.2 Hz
- Sensitivity (2.83V/1m) 89.5 dB
- Mechanical Q-factor, Qms 5.37
- Electrical Q-factor, Qes 0.30
- Total Q-factor, Qts 0.29
- Moving mass incl. air,Mms 127 g
- Force factor, Bl 19.0 Tm
- Equivalent volume, Vas 238 liters
- Compliance, Cms 0.49 mm/N
- Mechanical loss, Rms 3.0 kg/s
- Rated power handling* 200 W
Why Choose Lean Business Audio?
50 years of experience of designing, building and supplying Home, Car and Professional Audio.
Huge stocks of leading loudspeakers and audio brands
KEF, Celestion, Eminence, WGS, Montage, BMS Speakers, Faital Pro, Eighteen Sound, Ciare
Low Worldwide shipping rates.
Free Delivery on selected brands with the UK.
Price matching.
For more information please contact us at: +44(0)1473 744089
Or Email us at: sales@lean-business.co.uk
| Weight | 4 kg |
|---|---|
| Brand | SB ACOUSTICS |
| Magnet type | Ferrite |
