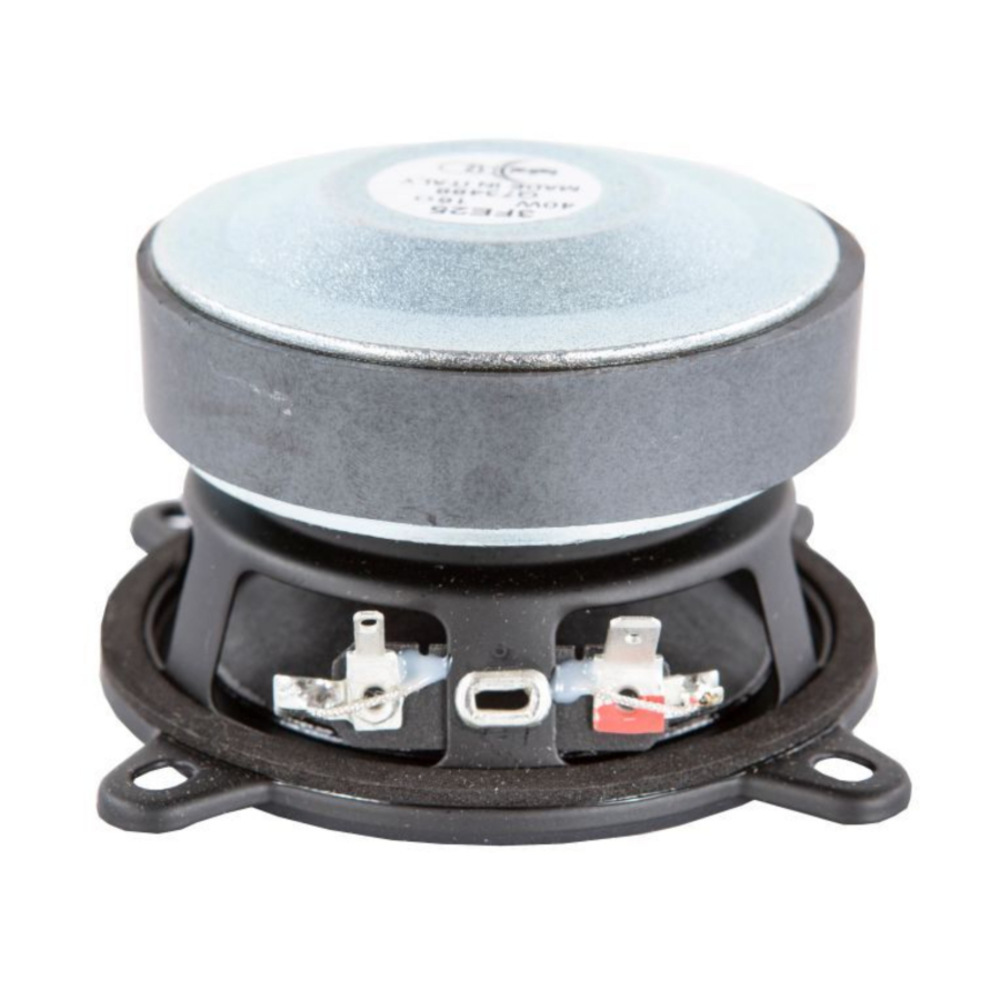

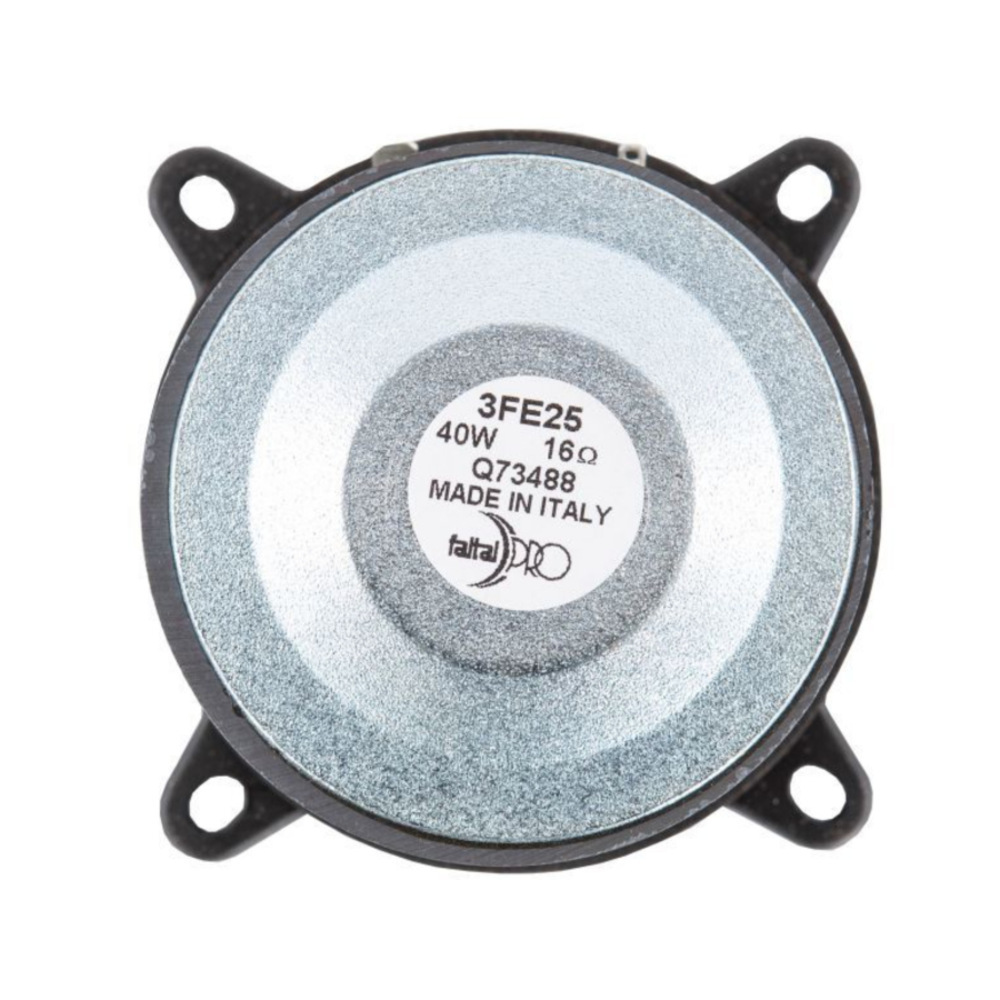

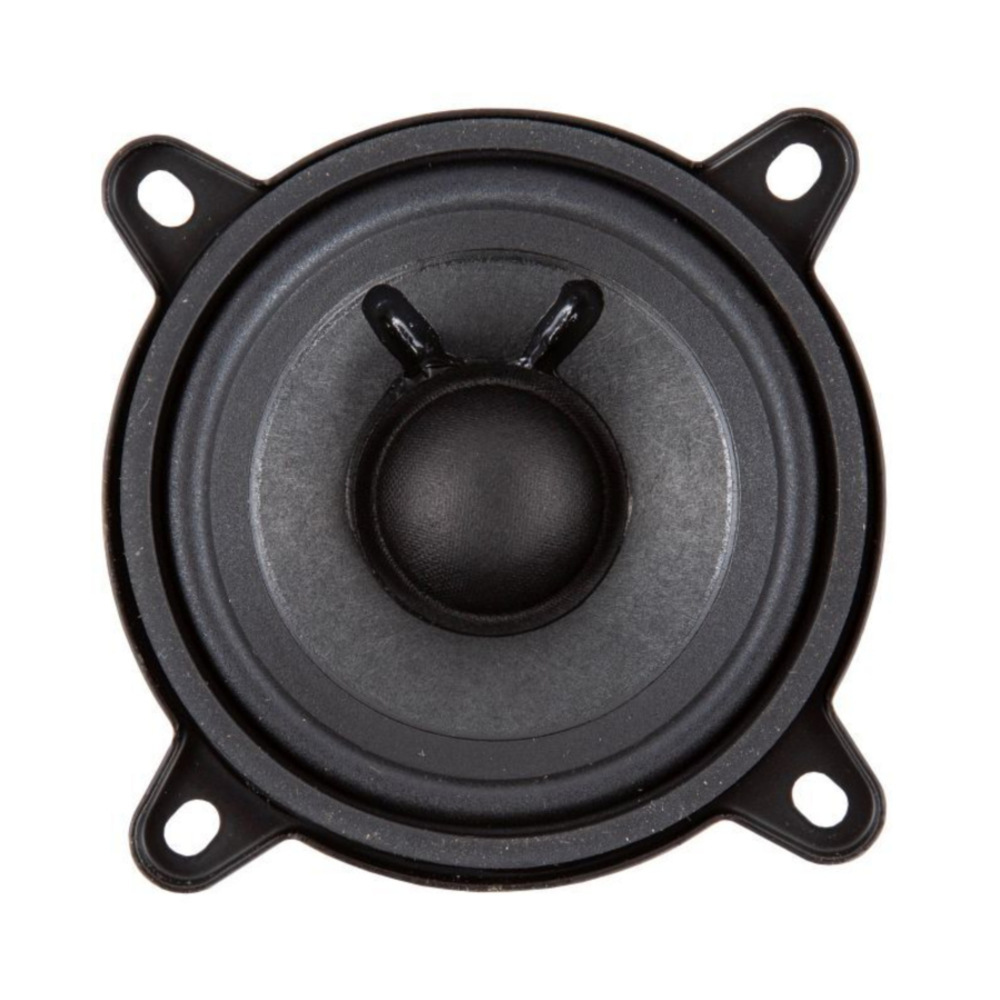

Faital Pro 3FE25 16ohm 3″ 20 watt Ferrite Speaker

Faital Pro 3FE25 16ohm 3″ 20 watt Ferrite Speaker

Product specifications:

• Nominal Impedance: 16 Ohm
• Minimum Impedance: 13.4 Ohm
• AES Power Handling: 20 W
• Maximum Power Handling: 40 W
• Sensitivity (1W/1m): 90 dB
• Frequency Range: 100÷20000 Hz
• Voice Coil Diameter: 19 mm (0.75 in)
• Winding Material: Al
• Former Material: Kapton
• Winding Depth: 5 mm (0.20 in)
• Magnetic Gap Depth: 4 mm (0.16 in)
• Flux Density: 1.1 T
• Magnet: Ferrite Ring
• Basket Material:Steel
• Demodulation: Copper Cap
• Cone Surround: Half Roll
• NET Air Volume filled by Loudspeaker: 0.125 dm^3 (0.004 ft^3)
• Spider Profile: 1x constant height waves

Thiele and small parameters:

• Fs: 110 Hz
• Re; 12.3 Ohm
• Qes: 1.0
• Qms: 4.9
• Qts: 0.83
• Vas: 1.3 dm^3 (0.05 ft^3)
• Sd: 33 cm^2 (5.12 in^2)
• Xmax: 1.83 mm
• Xdamage: 7.9 mm
• Mms: 2.4 g
• Bl: 4.5 N/A
• Le: 0.1 mH
• Mmd: 2.2 g
• Cms: 0.88 mm/N
• Rms: 0.34 kg/s
• Eta Zero: 0.17 %
• EBP: 110 Hz

Dimensions:

• Nominal Diameter:80 mm (3 in)
• Overall Diameter: 105.6/81 mm (4.16/3.19 in)
• Bolt Circle Diameter: 92 mm (3.62 in)
• Baffle Cutout Diameter: 73.6 mm (2.90 in)
• Depth: 54.5 mm (2.15 in)
• Flange and Gasket Thickness: 6.5 mm (0.26 in)
• Net Weight: 545 g (1.2 lb)
• Shipping Box
• (Single Carton Box – 36 units): 285 x 285 x 255 mm (11.2 x 11.2 x 10.0 in)
• Shipping Weight (36 units): 20.8 kg (45.9 lb)
