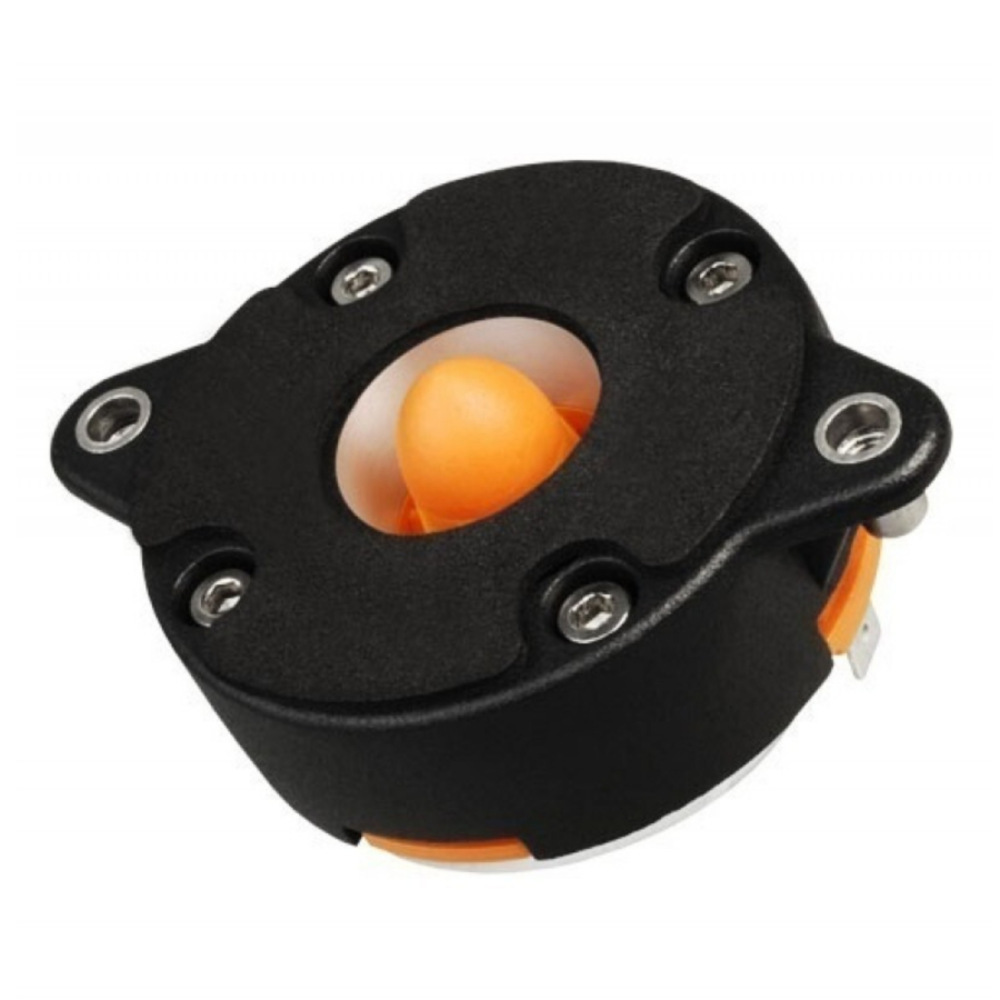

Faital Pro HF102 8ohm 1″ 30 watt Neo Compression Driver

Faital Pro HF102 8ohm 1″ 30 watt Neo Compression Driver

HF102 specifications:

• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.6 Ohm
• AES Power Handling:30 W
• Maximum Power Handling: 60 W
• Minimum Crossover Frequency: 2.6 kHz
• Sensitivity (1W/1m): 107 dB
• Frequency Range: 1.8÷20 kHz
• Voice Coil Diameter: 25 mm (0.98 in)
• Winding Material: Al
• Former Material: Kapton
• Diaphragm Material: Ketone Polymer
• Diaphragm Shape: Dome
• Winding Depth: 1.7 mm (0.07 in)
• Magnetic Gap Depth: 2 mm (0.08 in)
• Flux Density: 1.3 T
• Magnet: Neodymium Ring
• Re: 6 Ohm
• Phase Plug Design: Radial
• Exit Angle: 9° Conical
• NET Air Volume filled by HF Driver: .1 dm^3 (0.004 ft^3)

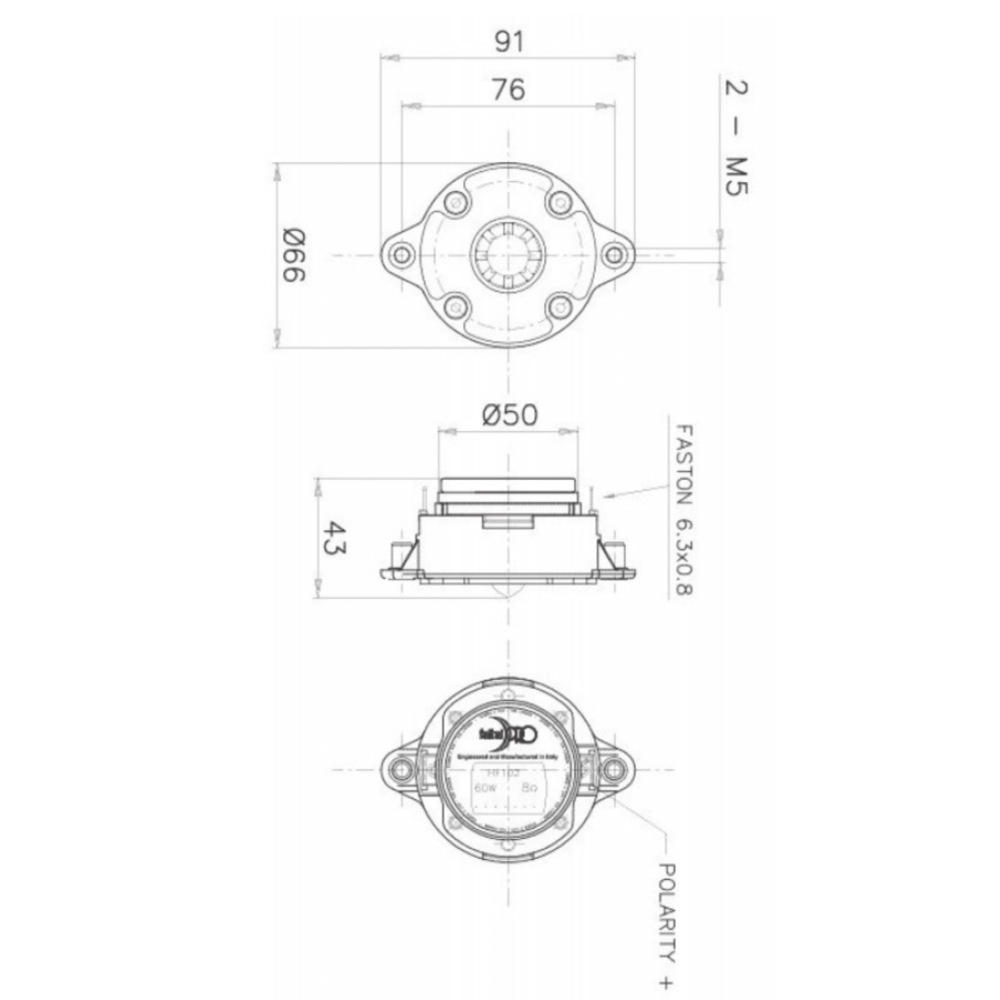

Nominal Specifications:

• Throat Diameter: 25.4 mm (1 in)
• Overall Diameter: 91 mm (3.58 in)
• 180° Mounting Holes Diameter: (2xM6) 76 mm (2.99 in)
• Depth: 43 mm (1.69 in)
• Net Weight: 300 g (0.7 lb)
• Shipping Box
• (Single carton box): 98 x 90 x 64 mm (3.9 x 3.5 x 2.5 in)
• Shipping Weight: 330 g (0.72 lb)
