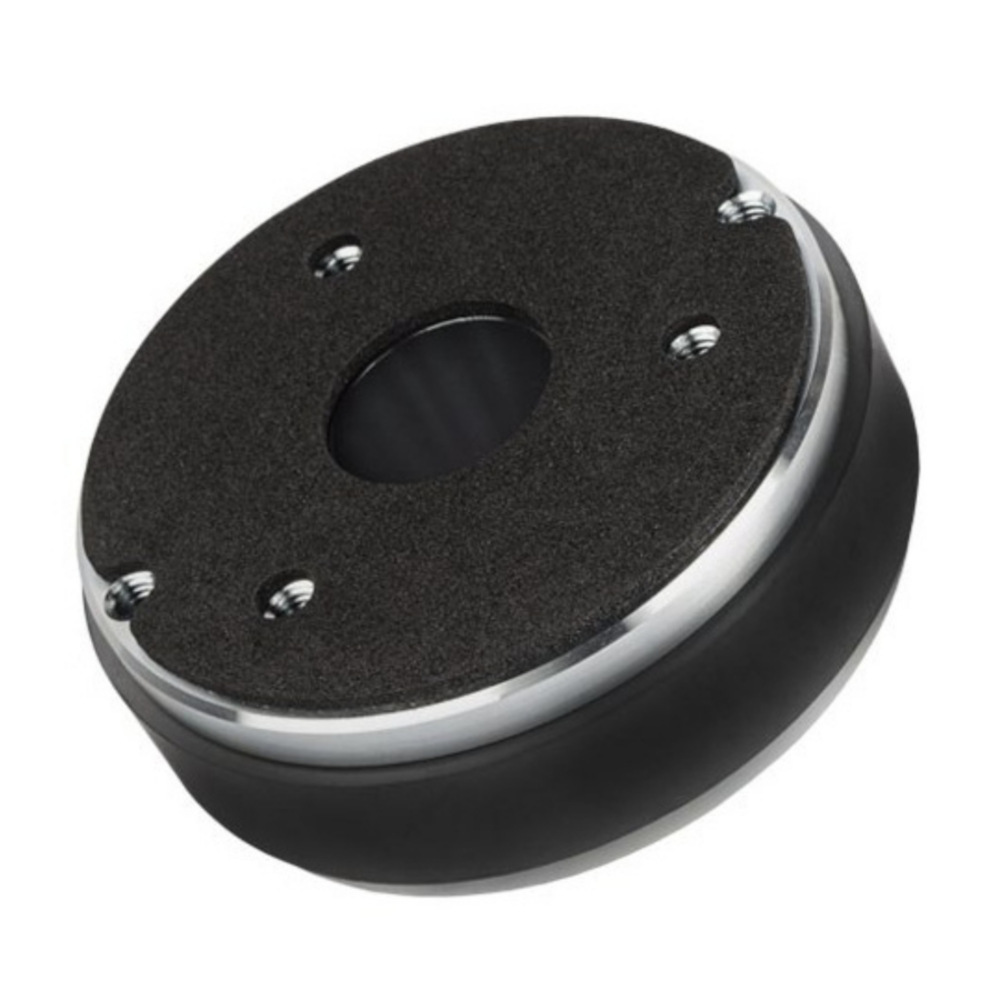

Faital Pro HF111 16ohm 1″ 40 watt Ferrite Compression

Faital Pro HF111 16ohm 1″ 40 watt Ferrite Compression

HF111 specifications:

• Nominal Impedance: 16 Ohm
• Minimum Impedance: 9.4 Ohm
• AES Power above: 0.9 kHz 70 W
• AES Power above: 0.65 kHz 50 W
• Maximum Power above: 0.9 kHz 140 W
• Maximum Power above: 0.65 kHz 100 W
• Minimum Crossover Frequency: 0.9 kHz
• Sensitivity (1W/1m): 109 dB

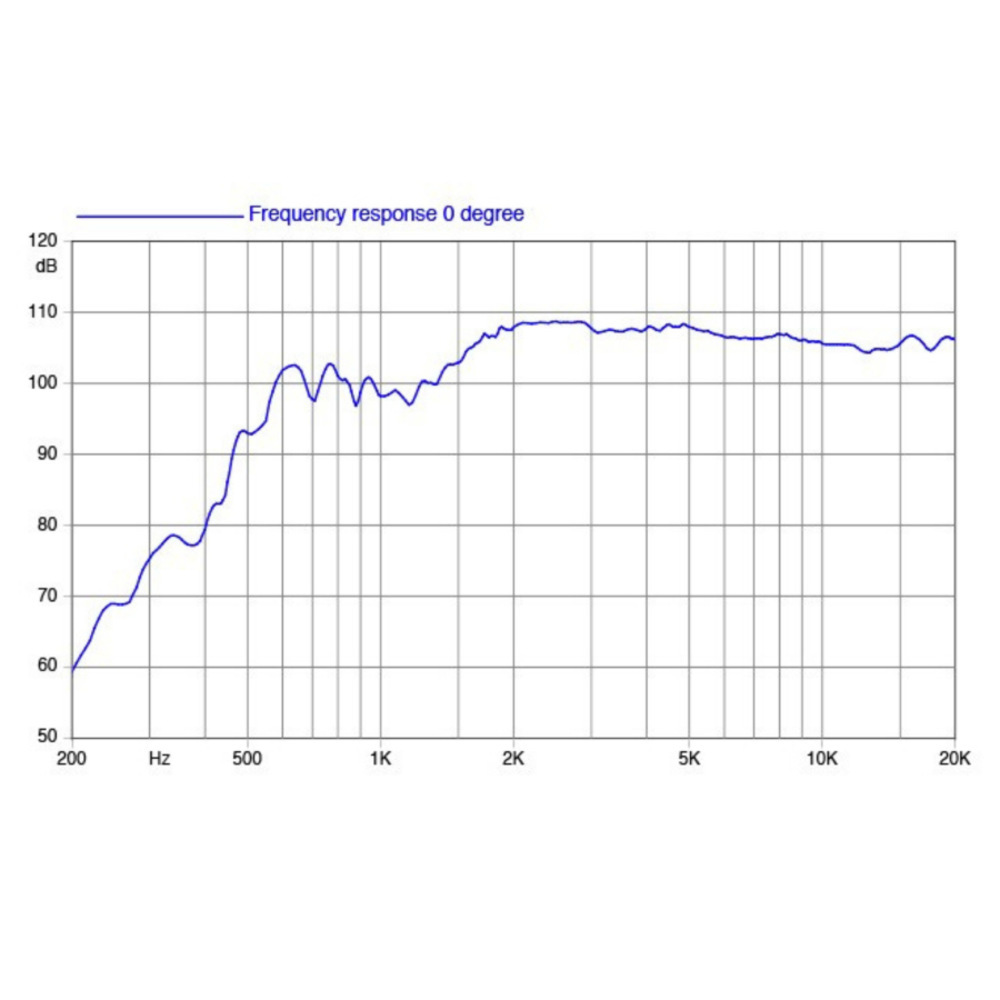

• Frequency Range: 0.5÷18 kHz
• Voice Coil Diameter: 74 mm (2.91 in)
• Winding Material: Al
• Former Material: Kapton
• Diaphragm Material: Titanium
• Diaphragm Shape: Dome
• Winding Depth: 2.45 mm (0.10 in)
• Magnetic Gap Depth: 2.8 mm (0.11 in)
• Flux Density: 1.8 T
• Magnet: Neodymium Slug Crown
• Re: 8.2 Ohm
• Phase Plug Design: Annular
• Exit Angle: 7° Conical
• NET Air Volume filled by HF Driver: 0.7 dm^3 (0.025 ft^3)

Nominal Specifications:

• Throat Diameter: 35.6 mm (1.4 in)
• Overall Diameter: 130.5 mm (5.14 in)
• 90° Mounting Holes Diameter: (4xM6) 102 mm (4.02 in)
• Depth: 62 mm (2.44 in)
• Net Weight: 2.9 kg (6.4 lb)
• Shipping Box
• (Single carton box): 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in)
• Shipping Weight: 3.1 kg (6.8 lb)

Designed & manufactured in Italy and provided exclusively by Lean Business, this FaitalPRO compression driver comes complete with 2 years warranty.
