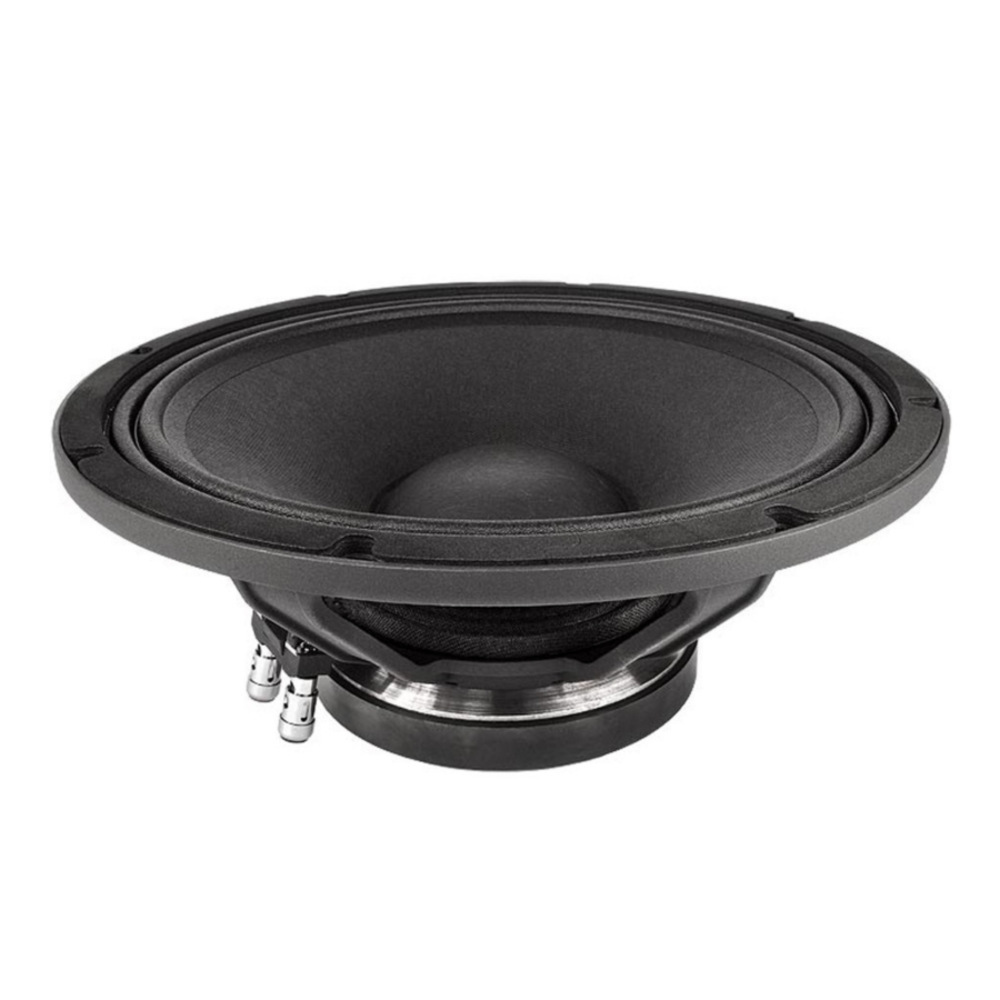

Faital Pro 12PR330 8ohm 12″ 300 watt Ferrite Speaker
£125.21
- Nominal Impedance: 8 Ohm
- Minimum Impedance: 6.6 Ohm
- AES Power Handling: 300 W
- Maximum Power Handling: 600 W
- Sensitivity (1W/1m): 98 dB
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands.
Available on back-order
Email when stock available
Faital Pro 12PR330 8ohm 12″ 300 watt Ferrite Speaker
12PR330 specifications:
- Nominal Impedance: 8 Ohm
- Minimum Impedance: 6.6 Ohm
- AES Power Handling: 300 W
- Maximum Power Handling: 600 W
- Sensitivity (1W/1m): 98 dB
- Frequency Range: 50÷4000 Hz
- Voice Coil Diameter: 65 mm (2.56 in)
- Winding Material: Al
- Former Material: Glass Fiber
- Winding Depth: 17.4 mm (0.69 in)
- Magnetic Gap Depth: 8 mm (0.31 in)
- Flux Density: 1.2 T
- Magnet: Ferrite Ring
- Basket Material: Aluminum
- Demodulation: No
- Cone Surround: M-Roll
- NET Air Volume filled by Loudspeaker: 1.9 dm^3 (0.067 ft^3)
- Spider Profile: 1x variable height waves
Thiele and small parameters:
- Fs: 50 Hz
- Re: 5.3 Ohm
- Qes: 0.42
- Qms: 10.9
- Qts: 0.40
- Vas: 79.1 dm^3 (2.79 ft^3)
- Sd: 533 cm^2 (82.62 in^2)
- Xmax: 7.37 mm
- Xdamage: 15.25 mm
- Mms: 50.8 g
- Bl: 14.2 N/A
- Le: 0.76 mH
- Mmd: 36.9 g
- Cms: 0.20 mm/N
- Rms: 1.5 kg/s
- Eta Zero: 2.29 %
- EBP: 119 Hz
Dimmensions:
- Nominal Diameter: 300 mm (12 in)
- Overall Diameter: 316 mm (12.44 in)
- Bolt Circle Diameter: 298.5 mm (11.75 in)
- Baffle Cutout Diameter: 282 mm (11.10 in)
- Depth: 135 mm (5.31 in)
- Flange and Gasket Thickness: 12 mm (0.47 in)
- Net Weight: 4.3 kg (9.5 lb)
- Shipping Box
- (Single Carton Box): 350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in)
- Shipping Weight: 5 kg (11.0 lb)
Why Choose Lean Business Audio?
50 years of experience of designing, building and supplying Home, Car and Professional Audio.
Huge stocks of leading loudspeakers and audio brands
KEF, Celestion, Eminence, WGS, Montage, BMS Speakers, Faital Pro, Eighteen Sound, Ciare
Low Worldwide shipping rates.
Free Delivery on selected brands with the UK.
Price matching.
For more information please contact us at: +44(0)1473 744089
Or Email us at: sales@lean-business.co.uk
| Weight | 5 kg |
|---|---|
| Brand | FaitalPRO |
| Magnet type | Ferrite |
| Size | 12" |
