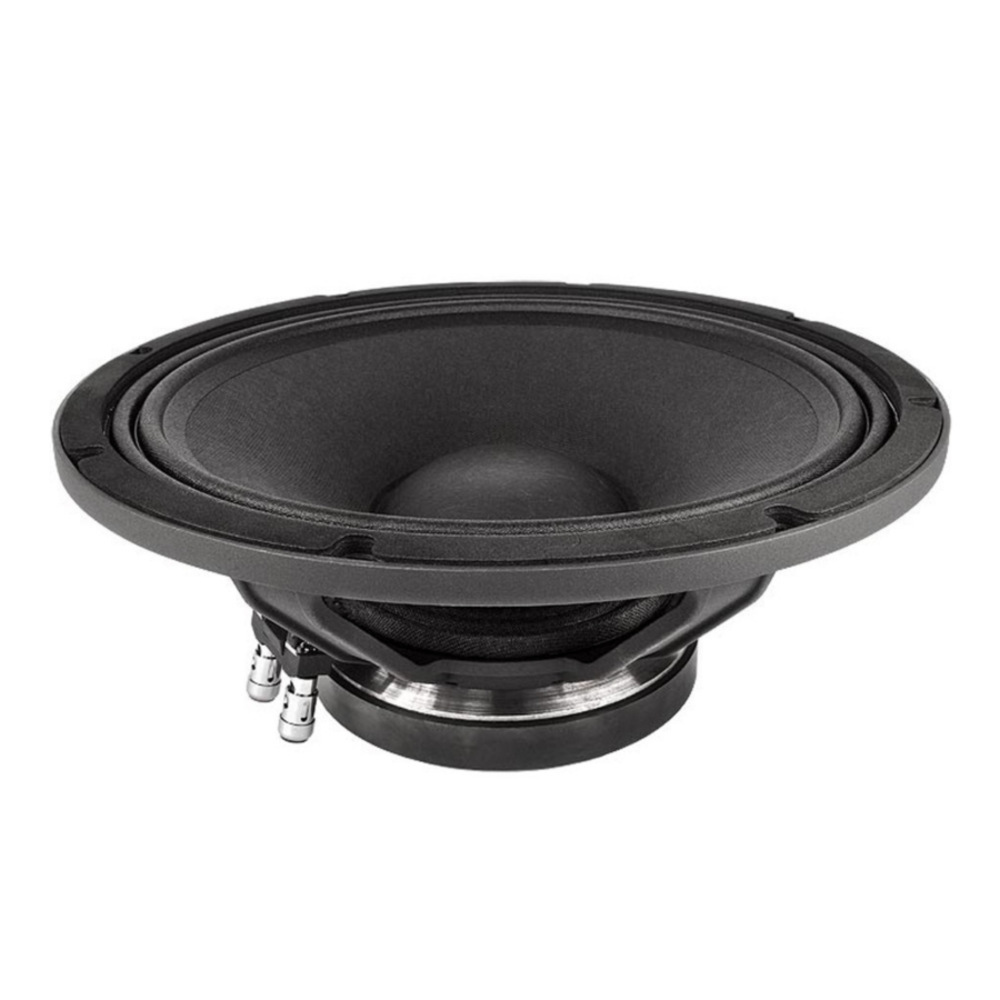

Faital Pro 12PR330 16ohm 12″ 300 watt Ferrite Speaker
£125.21
12″ Mid-Bass / Bass Speaker
Cast Aluminum Frame
8 Ohms
50Hz-4kHz
300 Watts RMS
600 Watts Program
98dB SPL
High 7.37mm Xmax
Aluminum Voice Coil
Good Midrange & Strong Tight Bass Sound
Designed For Bass Reflex Front Loaded Cabinets
Great In Bass Guitar Cabinets
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands.
Available on backorder
Email when stock available
Faital Pro 12PR330 16ohm 12″ 300 watt Ferrite Speaker
12PR330 specifications:
| Nominal Diameter | 300 mm (12 in) |
| Overall Diameter | 316 mm (12.44 in) |
| Bolt Circle Diameter | 298.5 mm (11.75 in) |
| Baffle Cutout Diameter | 282 mm (11.10 in) |
| Depth | 135 mm (5.31 in) |
| Flange and Gasket Thickness | 12 mm (0.47 in) |
| Net Weight | 4.3 kg (9.5 lb) |
| Shipping Box (Single Carton Box) |
350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in) |
| Shipping Weight | 5 kg (11.0 lb) |
Technical Parameters
| Nominal Impedance | 16 Ohm |
| Minimum Impedance | 13.2 Ohm |
| AES Power Handling (1) | 300 W |
| Maximum Power Handling (2) | 600 W |
| Sensitivity (1W/1m) | 97 dB |
| Frequency Range | 50÷4000 Hz |
| Voice Coil Diameter | 65 mm (2.56 in) |
| Winding Material | Al |
| Former Material | Glass Fiber |
| Winding Depth | 17.2 mm (0.68 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.2 T |
| Magnet | Ferrite Ring |
| Basket Material | Aluminum |
| Demodulation | No |
| Cone Surround (3) | M-Roll |
| NET Air Volume filled by Loudspeaker | 1.9 dm^3 (0.067 ft^3) |
| Spider Profile | 1x variable height waves |
Thiele and small parameters
| Fs | 52 Hz |
| Re | 11.3 Ohm |
| Qes | 0.53 |
| Qms | 5.8 |
| Qts | 0.49 |
| Vas | 76.3 dm^3 (2.69 ft^3) |
| Sd | 533 cm^2 (82.62 in^2) |
| Xmax (4) | 7.27 mm |
| Xdamage (5) | 15.25 mm |
| Mms | 48.7 g |
| Bl | 18.5 N/A |
| Le | 1.34 mH |
| Mmd | 34.8 g |
| Cms | 0.19 mm/N |
| Rms | 2.7 kg/s |
| Eta Zero | 1.98 % |
| EBP | 98 Hz |
PART NUMBER (P/N)
| Push Terminals – 16 Ohm Version | 03004313 |
Why Choose Lean Business Audio?
50 years of experience of designing, building and supplying Home, Car and Professional Audio.
Huge stocks of leading loudspeakers and audio brands
KEF, Celestion, Eminence, WGS, Montage, BMS Speakers, Faital Pro, Eighteen Sound, Ciare
Low Worldwide shipping rates.
Free Delivery on selected brands with the UK.
Price matching.
For more information please contact us at: +44(0)1473 744089
Or Email us at: sales@lean-business.co.uk
| Weight | 5 kg |
|---|---|
| Brand | FaitalPRO |
| Magnet type | Ferrite |
| Size | 12" |
