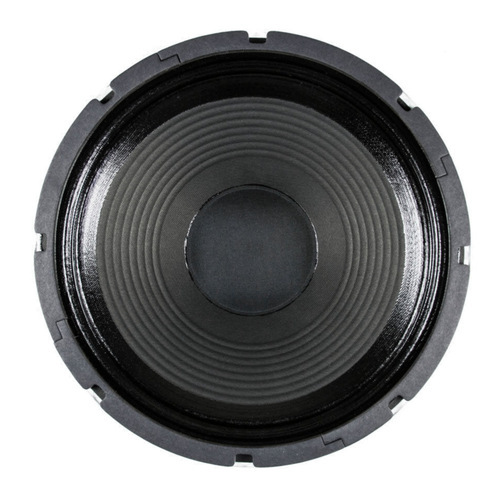

WGS ET90 4ohm 12″ 90 watt Guitar Speaker

WGS ET90 4ohm 12″ 90 watt Guitar Speaker

Product description:

The ET90 is Warehouse Guitar Speaker’s lastest addition to the ET65 lineage.
Taking it’s core sound from the ET65, the ET90 gives you more all the way around. WGS went to larger motor and a beefier voice coil on this model.
The result is more headroom, more power handling and a bigger feel.
If you’ve been looking for classic British tone with an “open” feel and a lot of power, the ET90 is your new favorite.

Mounting information:

• Diameter 12 3/16”
• Overall depth 5 3/16”
• Cut-out diameter 11”
• Mounting slot dimensions 1/4”
• Number of mounting slots: 8
• Mounting slot PCD 11 3/4”

ET90 specification:

• Nominal diameter: 12″, 305mm
• Power rating: 90 Watt
• Nominal impedance: 4ohm
• Chassis type: Pressed steel
• Magnet type: ceramic
• Weight: 4.4 kg

Thiele small parameters:

• Resonant Frequency (Fs) 100.14 Hz
• DC Resistance (Re) 4.04 Ohm
• Coil Inductance (Le) 0.33 mH
• Mechanical Q (Qms) 6.08
• Electromagnetic Q (Qes) 0.78
• Total Q (Qts) 0.69
• Compliance Equivalent Volume (Vas) 16.03cu ft
• Mechanical Compliance of Suspension (Cms) 0.08 mm/N
• BL Product (BL) 13.95 T-M
• Diaphragm Mass Inc. Airload (Mms) 29.95 grams
• Surface Area of Cone (Sd) 366.10 cm squared
• Sound Pressure Level (spl) 99.94 db
• Mechanical Compliance of Suspension (Cms) 108.332 mm/N
• BL Product (BL) 13.95 T-M
• Diaphragm Mass Inc. Airload (Mms) 29.95 grams
• Surface Area of Cone (Sd) 366.10 cm squared
• Sound Pressure Level (spl) 99.94 db
