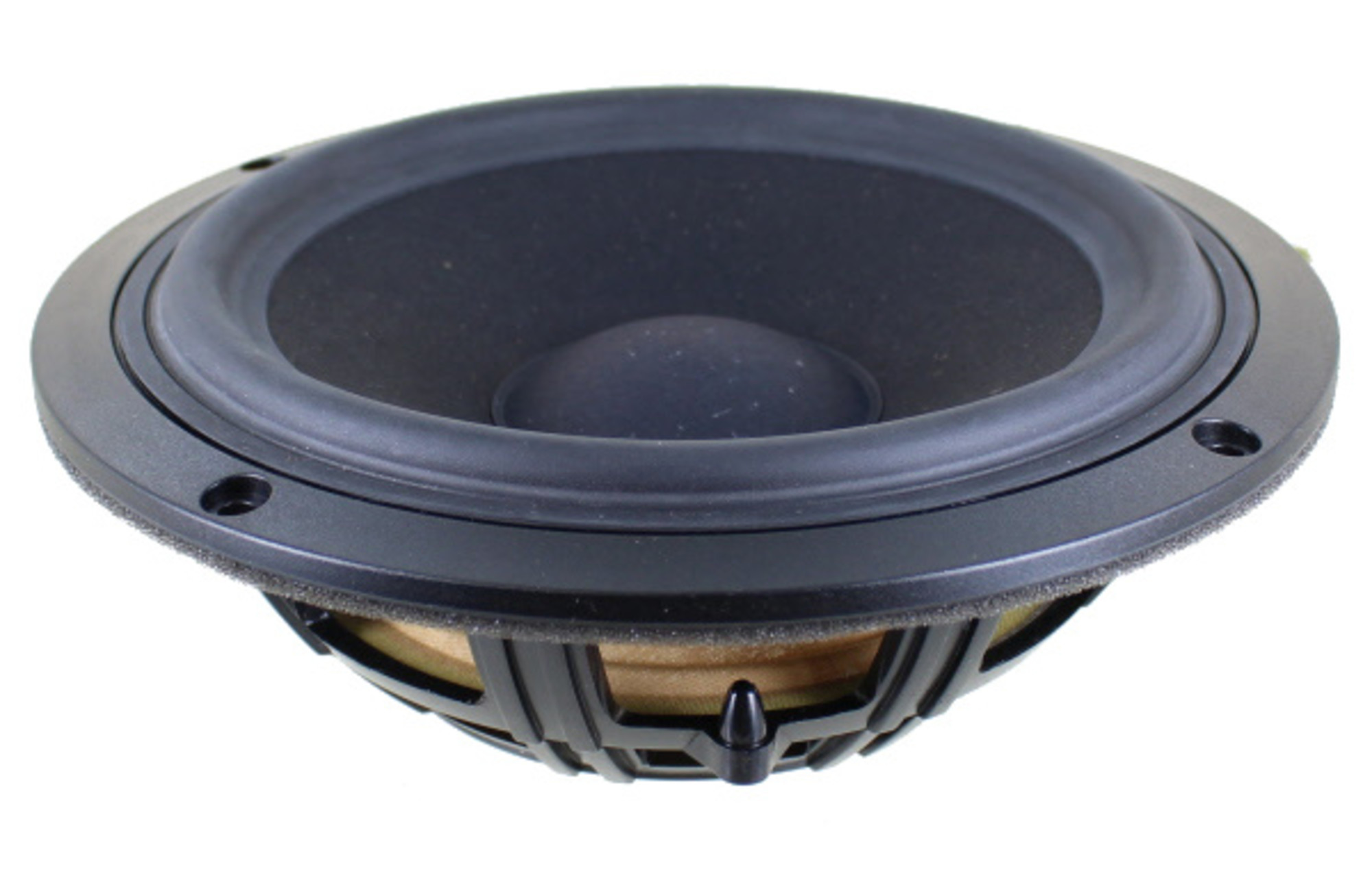

SB ACOUSTICS SB16PFCR-00 6” Passive Radiator

SB ACOUSTICS SB16PFCR-00 6” Passive Radiator

Product Description:

The SB Acoustics SB16PFCR-00 is a perfect match for the PFCR series drivers.
Both with its specifications and compatible visual style.
A passive radiator can be used as an alternative to the port in a bass reflex cabinet, together with an active woofer of similar size or smaller.
In many applications the traditional bass reflex port may produce high speed air noise or even have poor effect due to a small port area or a large port length.
In such cases, a passive radiator may bring about an improvement

Key Features:

• Vented reinforced plastic chassis
• Proprietary cone material with natural fibers made in-house
• Soft low damping surround
• Easily adjustable moving mass

SB16PFCR-00 Specifications:

• Woofer Type: Passive radiator
• Nominal Diameter: 6”
• Resonant Frequency (Fs): 22 Hz
• Mechanical Q (Qms): 4.4
• Diaphragm Mass Inc. Airload (Mms): 38 g
• Mechanical Compliance of Suspension (Cms): 1.4 mm/N
• Surface Area of Cone (Sd): 124 cm2
• Maximum Linear Excursion (Xmax): 10 mm (p-p)
• Driver’s Mechanical Losses (Rms): 1.2 kg/s
• Cone / Diaphragm Material: Paper
• Surround Material: Rubber
• Overall Outside Diameter: 178 mm
• Baffle Cutout Diameter: 144.5 mm
• Mounting Holes: 4
