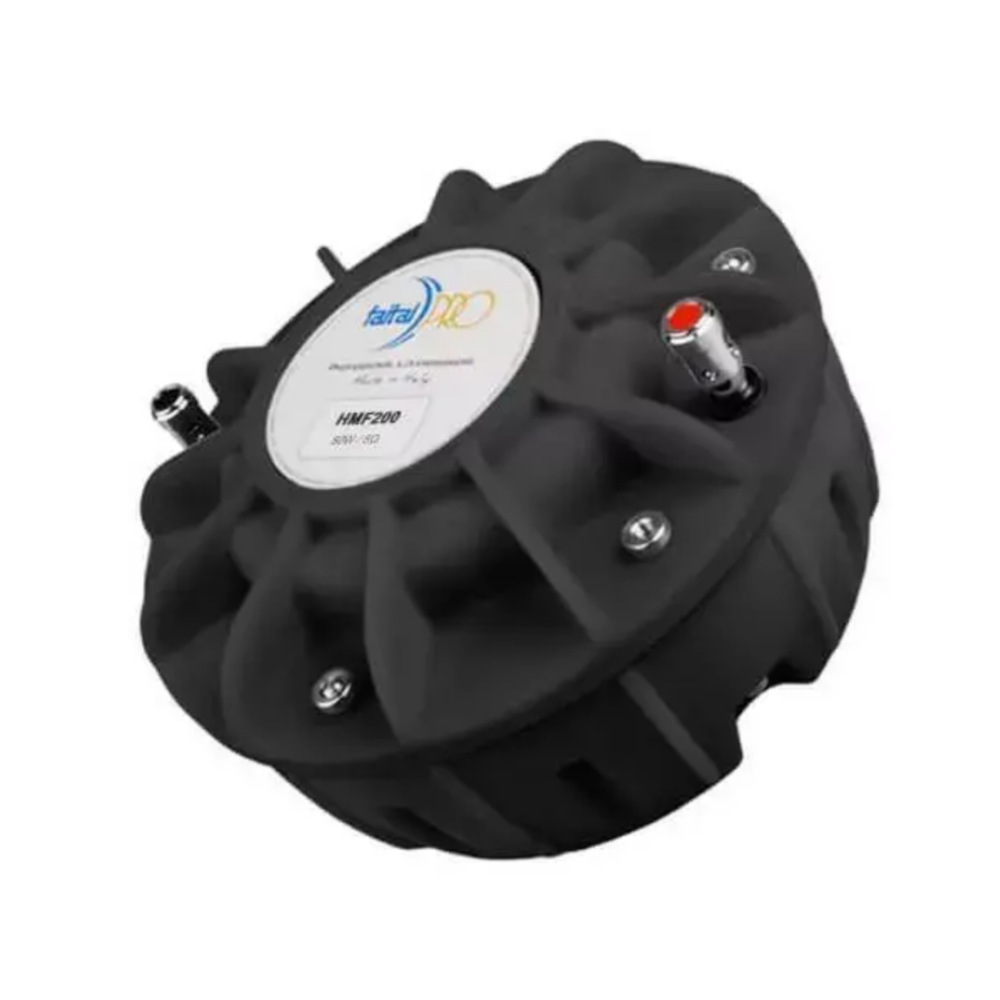

Faital Pro HMF200 8ohm 2″ 80 watt Neo Mid Range Driver

Faital Pro HMF200 8ohm 2″ 80 watt Neo Mid Range Driver

HMF200 specifications:

• Nominal impedance: 8 ohm
• Minimum impedance: 7 ohm
• AES power handling: 40 W
• Maximum power handling: 80 W
• Minimum crossover frequency: 0.45 kHz
• Sensitivity (1w/1m): 108 dB

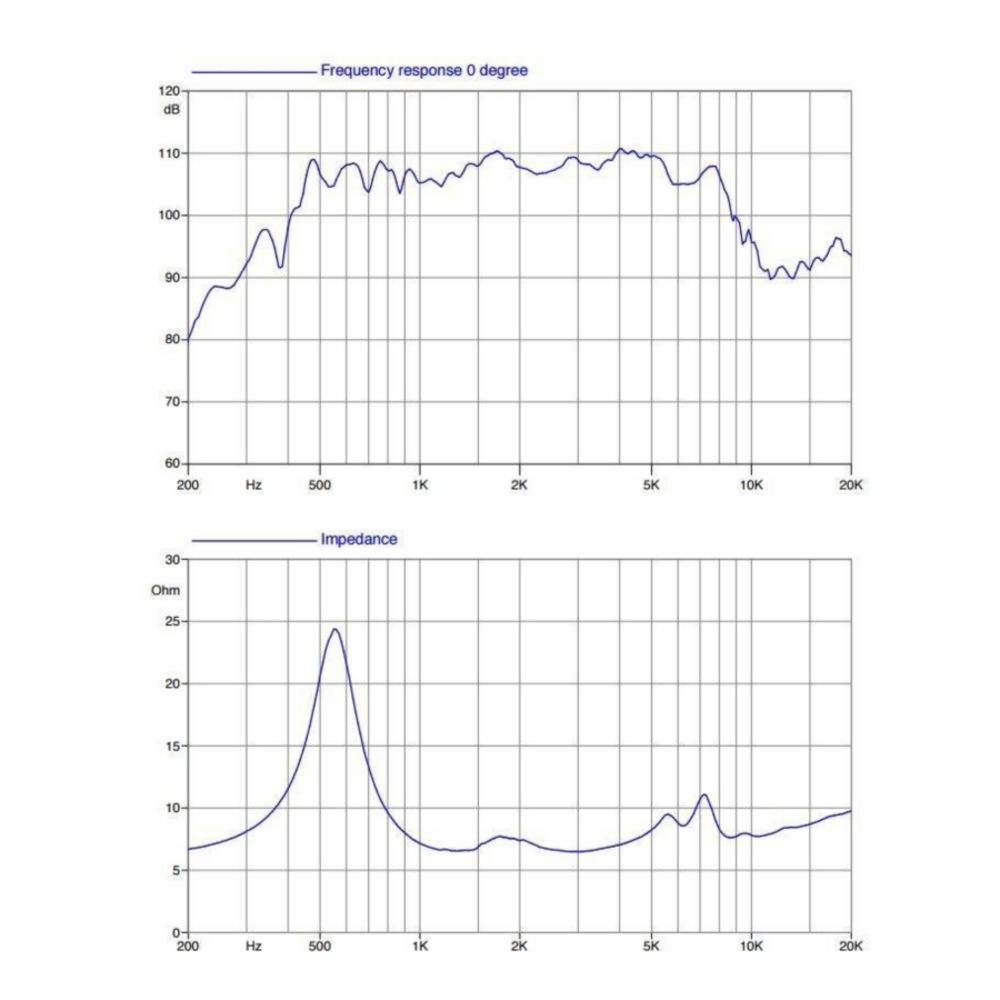

• Frequency range: 0.45÷9 kHz
• Voice coil diameter: 37 mm (1.46 in)
• Winding material: AI
• Former material: Kapton
• Diaphragm material: Paper
• Diaphragm shape: Double edge cone
• Winding Depth: 2.6 mm (0.10 in)
• Magnetic Gap Depth: 3.6 mm (0.14 in)
• Flux Density: 2.1 T
• Magnet: Neodymium Ring
• Re: 5.5 Ohm
• Phase Plug Design: Annular
• Exit Angle: Combined Exit
• NET Air Volume filled by HF Driver: 1.25 dm^3 (0.044 ft^3)

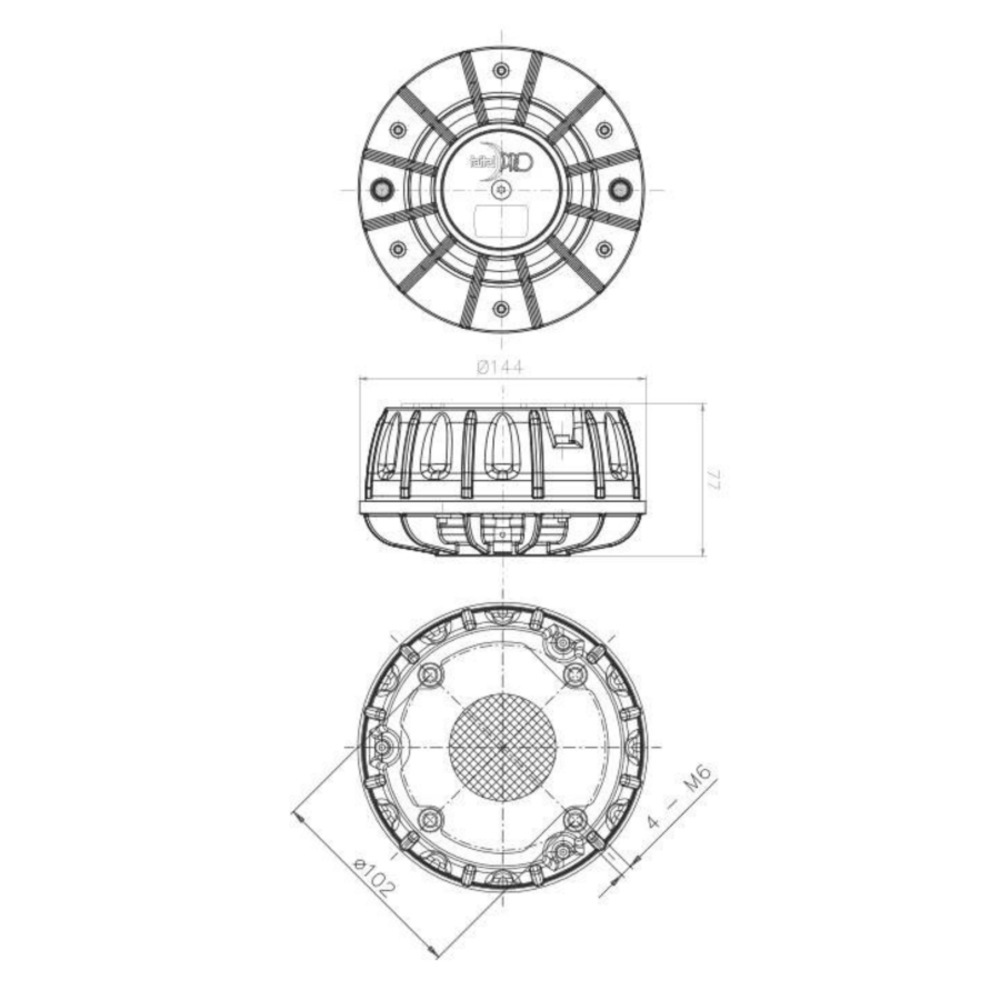

Nominal parameters:

• Throat Diameter: 50.8 mm (2 in)
• Overall Diameter144 mm (5.67 in)
• 90° Mounting Holes Diameter (4xM6): 102 mm (4.02 in)
• Depth: 77 mm (3.03 in)
• Net Weight: 1.65 kg (3.6 lb)
• Shipping Weight1.9 kg (4.2 lb)

Designed & manufactured in Italy and provided exclusively by Lean Business, this FaitalPRO compression driver comes complete with 2 years warranty.
