High Quality Horn Loudspeaker Systems by Bjørn Kolbrek and Thomas Dunker
Eminence APT200 Supertweeter with Horn
£25.22
- Waveguide: Bi-Radial
- Throat Diameter: 25.4 Inches (1 in)
- Impedance: 8 ohm
- Minimum Impedance: 7.3 ohm
- Power: 35W
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands.
Available on back-order
Email when stock available

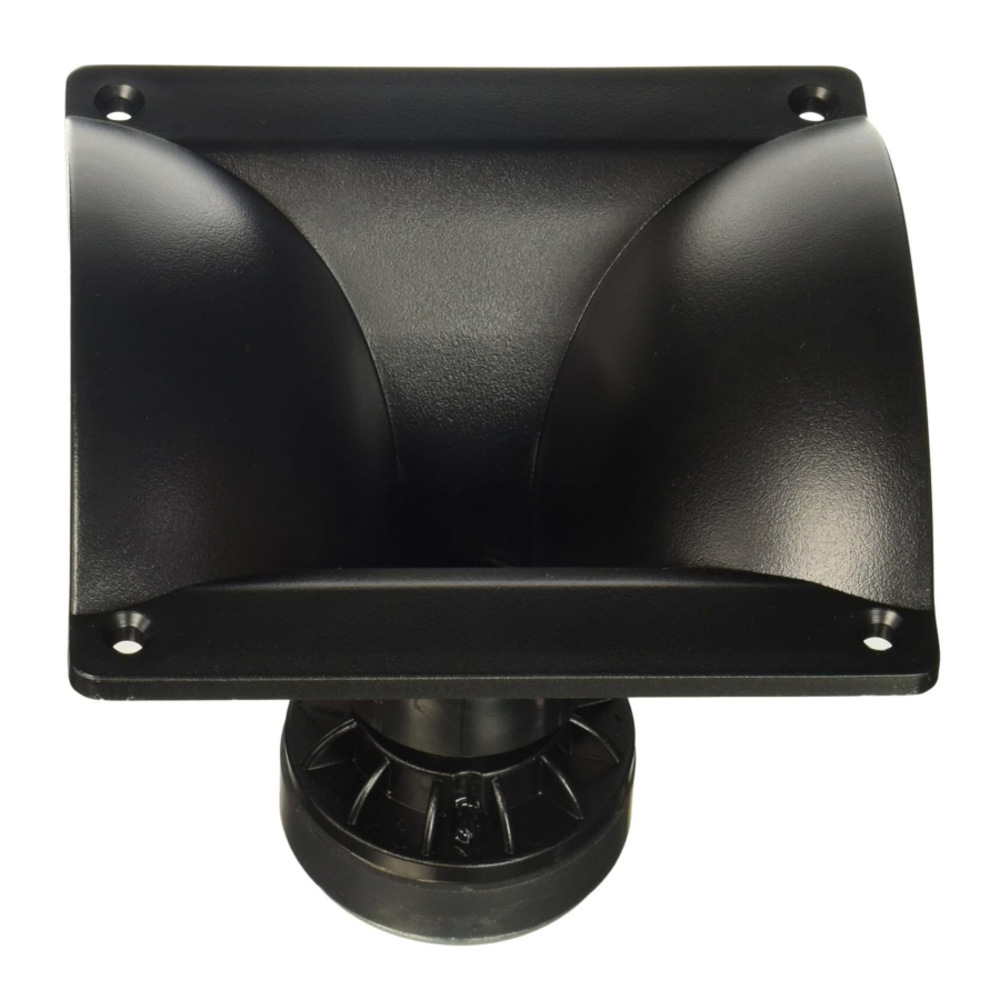

Eminence APT200 Supertweeter with Horn
Product description:
Eminence APT200 high-power super tweeter possesses extraordinary sensitivity thanks to a phenolic diaphragm, which has unique properties of stiffness and damping.
By fluid cooling the voice coil, increased power handling, controlled low frequency behavior and long-term reliability are assured.
The APT-150 super tweeter is a Mk3 APT50 compression driver with external 1 3/8″ screw thread pre-mounted on a 90 H x 90 V horn.
By fluid cooling the voice coil, increased power handling, controlled low frequency behavior and long-term reliability are assured.
The APT-150 super tweeter is a Mk3 APT50 compression driver with external 1 3/8″ screw thread pre-mounted on a 90 H x 90 V horn.
APT200 specifications:
- Power handling: 45 watts RMS (crossover frequency 3.5 kHz, 18 dB/octave)
- Power handling: 85 watts RMS (crossover frequency 5 kHz, 18 dB/octave)
- Impedance: 8 ohms
- Useable range: 3,500-20,000 Hz
- Fs: 2,500 Hz
- Recommended crossover: 3,500 Hz
- Dimensions 5.9″ x 5.9″, 150 mm x 150 mm
- Cut- out 4.25″ x 4.5″, 108 mm x 114 mm
- Depth 5.1″, 129.5 mm
Technical specifications:
- Waveguide: Bi-Radial
- Throat Diameter: 25.4 Inches (1 in)
- Impedance: 8 ohm
- Minimum Impedance: 7.3 ohm
- Power: 35W
- Sensitivity: 103.0 dB
- Frequency Range: 3500 Hz – 20 kHz Hz
- Minimum Crossover Frequency: 3.5 kHz
- Dispersion: 90 x 90 °
- Dimensions: 152.4 x 149.9 x 160 mm
- Cut Out Dimensions: 109 x 112 mm
- Horn Material: ABS
Why Choose Lean Business Audio?
50 years of experience of designing, building and supplying Home, Car and Professional Audio.
Huge stocks of leading loudspeakers and audio brands
KEF, Celestion, Eminence, WGS, Montage, BMS Speakers, Faital Pro, Eighteen Sound, Ciare
Low Worldwide shipping rates.
Free Delivery on selected brands with the UK.
Price matching.
For more information please contact us at: +44(0)1473 744089
Or Email us at: sales@lean-business.co.uk
| Weight | 1 kg |
|---|---|
| Brand | Eminence |
| Magnet type | Ferrite |
