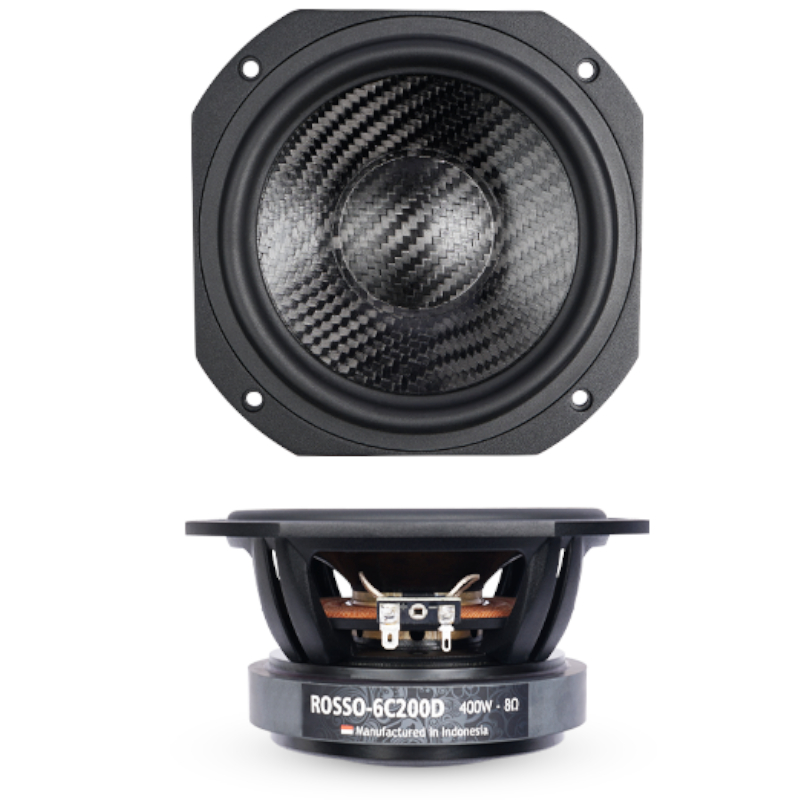

SB AUDIENCE ROSSO-6C200D 6″ 8ohm Midwoofer Loudspeaker
£85.81
- Cast aluminum chassis
- Extended midrange performance
- Pure carbon fiber cone made in house
- Minimum damping fiber glass voice coil former
- Shorting ring in motor system for reduced distortion
- Proprietary cone coating for controlled breakup (rear side)
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands.
Only 2 left in stock (can be backordered)
SB AUDIENCE ROSSO-6C200D 6″ 8ohm Midwoofer, 200 Watt, 50mm VC, Carbon Fibre, Demodulation ring

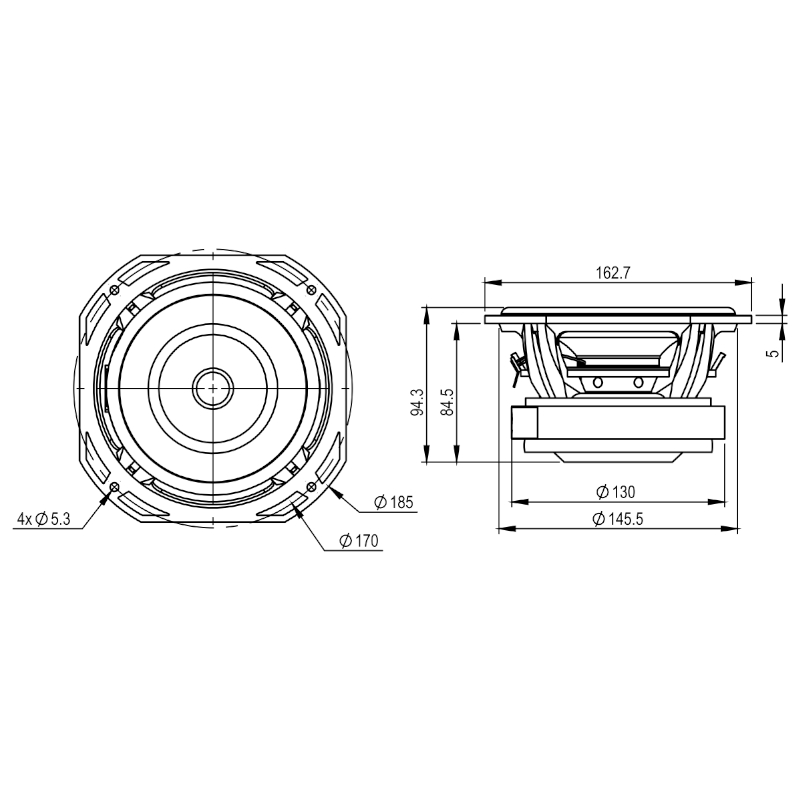

| Overall Diameter | 185 mm (7.28 in) |
| Bolt Circle Diameter | 170 mm (6.69 in) |
| Baffle Cutout Diameter | 147.5 mm (5.81 in) |
| Mounting Depth | 84.5 mm (3.32 in) |
| Flange and Gasket Thickness | 5.0 mm (0.2 in) |
| Net Weight | 2.7 Kg (5.95 lb) |
| Shipping Box | 178 x 178 x 135 mm (7.0 x 7.0 x 5.31 in) |
| Gross Weight | 2.9 Kg (6.39 lb) |
| Nominal Impedance | 8 Ohm |
| Minimum Impedance (Re) | 6.4 Ohm |
| AES Power Handling | 200 W |
| Maximum Power Handling | 400 W |
| Sensitivity (1W/1m) | 93 dB |

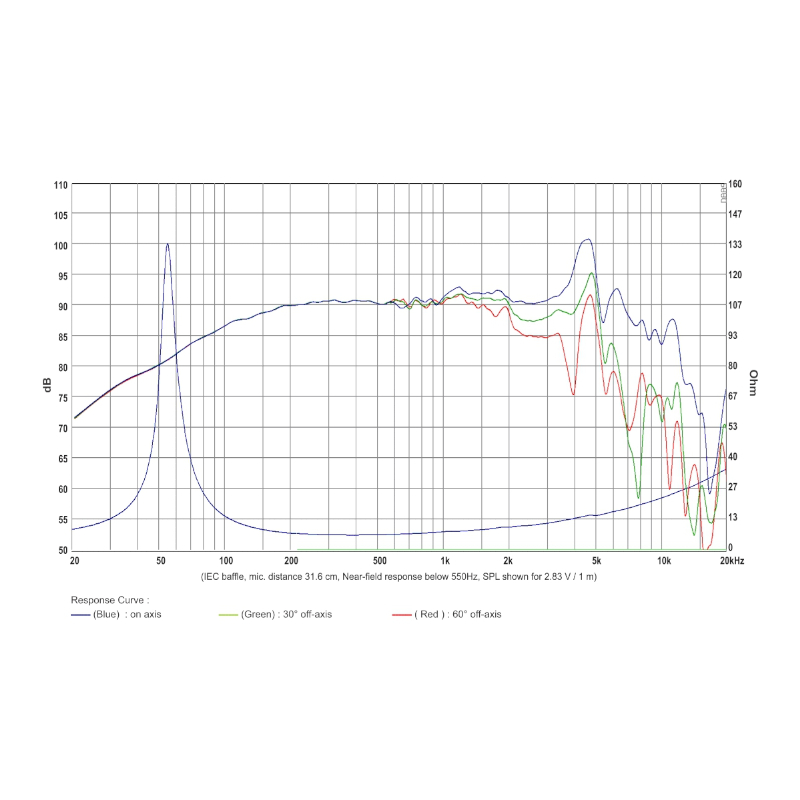

| Frequency Range | 58 – 5000 Hz |
| Voice Coil Diameter | 49.5 mm (1.95 in) |
| Winding Material | Copper |
| Former Material | Till |
| Winding Depth | 12.9 mm |
| Magnetic Gap Depth | 5 mm (0.19 in) |
| Flux Density | 1.31 T |
| Magnet Material | Ferrite |
| Basket Material | Aluminium die cast |
| Demodulation / Shorting Ring | Aluminium shorting ring |
| Surround Type | Rubber single half roll |
| Volume Displaced by Driver | 0.92 liters |
| Spider Profile | Single constant height waves |
| Water Resistant Front / Rear Side | Yes (Proprietary cone coating rear side) |
Thiele Small Parameters
| Fs | 61 Hz |
| Re | 5.4 Ohm |
| Qes | 0.35 |
| Qms | 12 |
| Qts | 0.34 |
| Vas | 8.8 liters |
| Sd | 145.3 cm² |
| Xmax | 5.24 mm |
| Xdamage | 16 mm |
| Mms | 23 g |
| Bl | 11.7 Tm |
| Le | 0.42 mH |
| Cms | 0.3 mm/N |
| Rms | 0.74 Kg/s |
| Eta Zero | 0.55% |
| EBP | 174 |
The
ROSSO-6C200D
is very unique midrange loudspeaker with a powerful neodymium motor, high sensitivity and very low distortion that is further reduced by the use of full copper cap on the pole piece.
Using a carbon fibre cone with inverted dust cap enables easy integration with a phase plug for midrange compression applications, with added strength and durability due to the carbon fibre diaphragm.
Ideal for applications such as multiple entry horns, compact line arrays, compact point source sound reinforcement systems, and even high efficiency high end hifi due to the low distortion profile and versatility with the fully removable rear chamber.
Why Choose Lean Business Audio?
50 years of experience of designing, building and supplying Home, Car and Professional Audio.
Huge stocks of leading loudspeakers and audio brands
KEF, Celestion, Eminence, WGS, Montage, BMS Speakers, Faital Pro, Eighteen Sound, Ciare
Low Worldwide shipping rates.
Free Delivery on selected brands with the UK.
Price matching.
For more information please contact us at: +44(0)1473 744089
Or Email us at: sales@lean-business.co.uk
| Weight | 3 kg |
|---|---|
| Brand | SB AUDIENCE |
| Size | 5" |
| Magnet type | -, Alnico, Aluminium, Ceramic, Ferrite, Neodymium, Xover |
