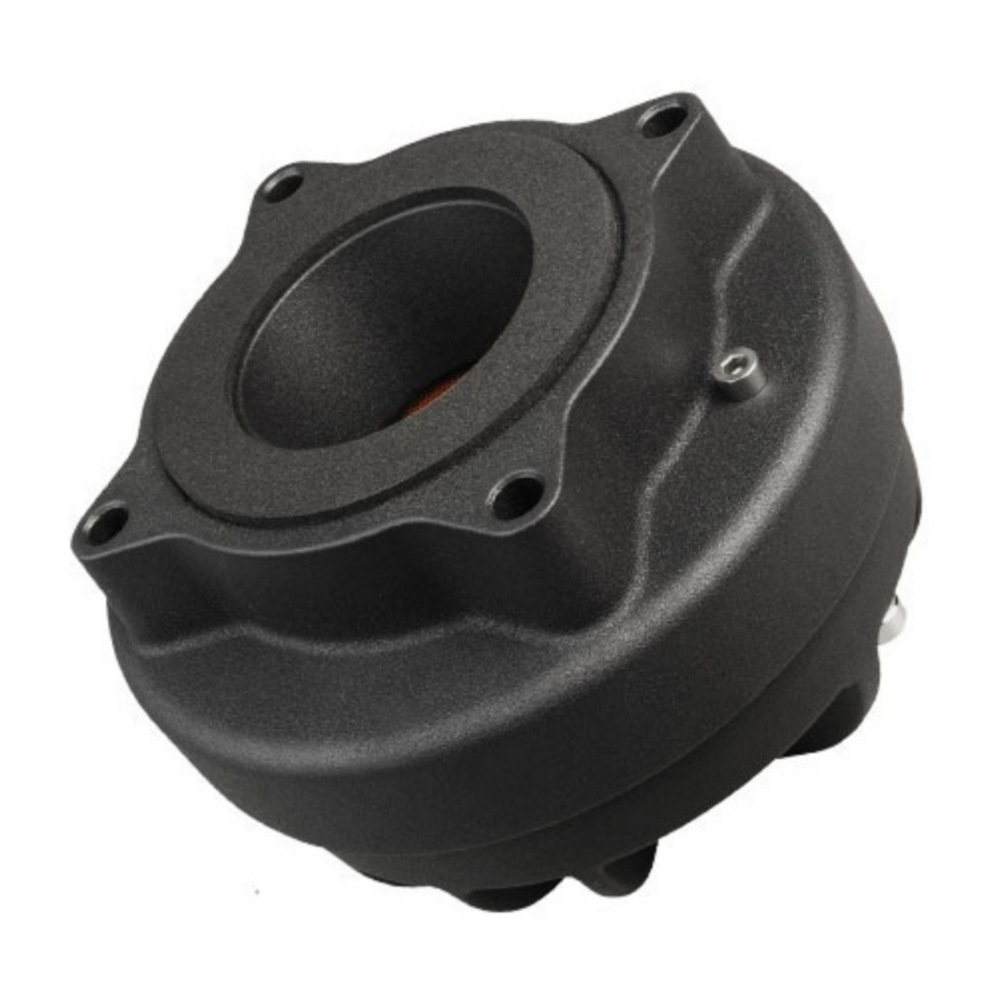

Faital Pro HF204 8ohm 2″ 80 watt Neo Compression Driver

Faital Pro HF204 8ohm2″ 80 watt Neo Compression Driver

HF204 specifications:

• Throat Diameter: 50.8 Inches (2 in)
• Exit Angle: 30 °
• Overall Diameter: 130.5 mm (5.14 in)
• Mounting Holes Diameter: 102 mm (90° 4xM6)
• Overall Depth: 91.5 mm (3.60 in)
• Impedance: 8 ohm
• Minimum Impedance: 7.2 ohm
• DC Resistance: 5.5 ohm
• Sensitivity: 108 dB
• Frequency Range: 0.5:18 kHz
• Voice Coil Diameter: 65 mm (2.56 in)
• Voice Coil Material: Al
• Voice Coil Former: Kapton
• Voice Coil Depth: 3 mm (0.12 in)
• Magnetic Gap Depth: 4.2 mm (0.17 in)
• Diaphragm Material: Ketone
• Diaphragm Shape: Dome
• Phase Plug Design: Annular
• Magnet Material: Neodymium Slug Crown
• Flux Density: 1.7 T
• Driver Displacement Volume: 0.75 L (0.026 ft^3)
• Minimum Crossover Frequency: 0.9 kHz

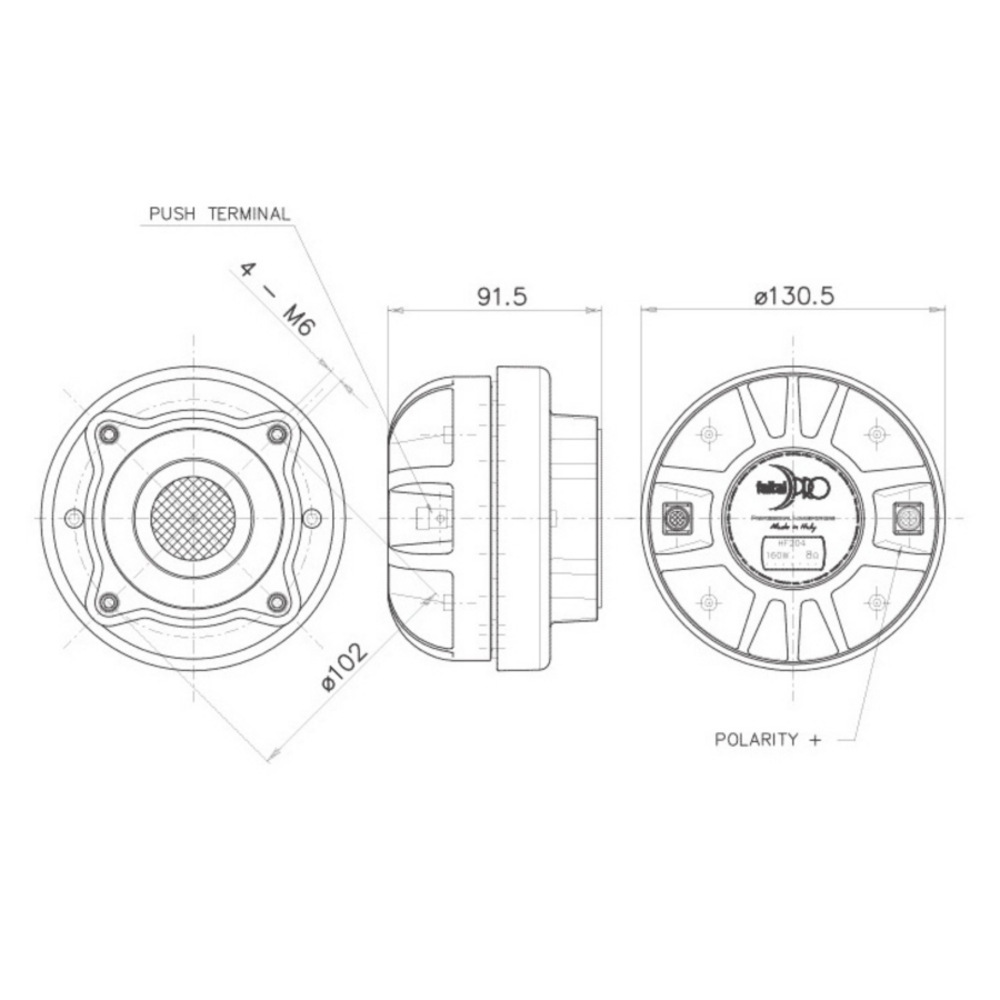

Nominal parameters:

• Throat Diameter – 50.8 mm (2 in)
• Overall Diameter – 130.5 mm (5.14 in)
• 90° Mounting Holes Diameter (4xM6) – 102 mm (4.02 in)
• Depth – 91.5 mm (3.60 in)
• Net Weight – 2.3 Kg (5.1 lb)
• Shipping Box – 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in)
• Shipping Weight – 2.6 Kg (5.7 lb)

Designed & manufactured in Italy and provided exclusively by Lean Business, this FaitalPRO compression driver comes complete with 2 years warranty.
