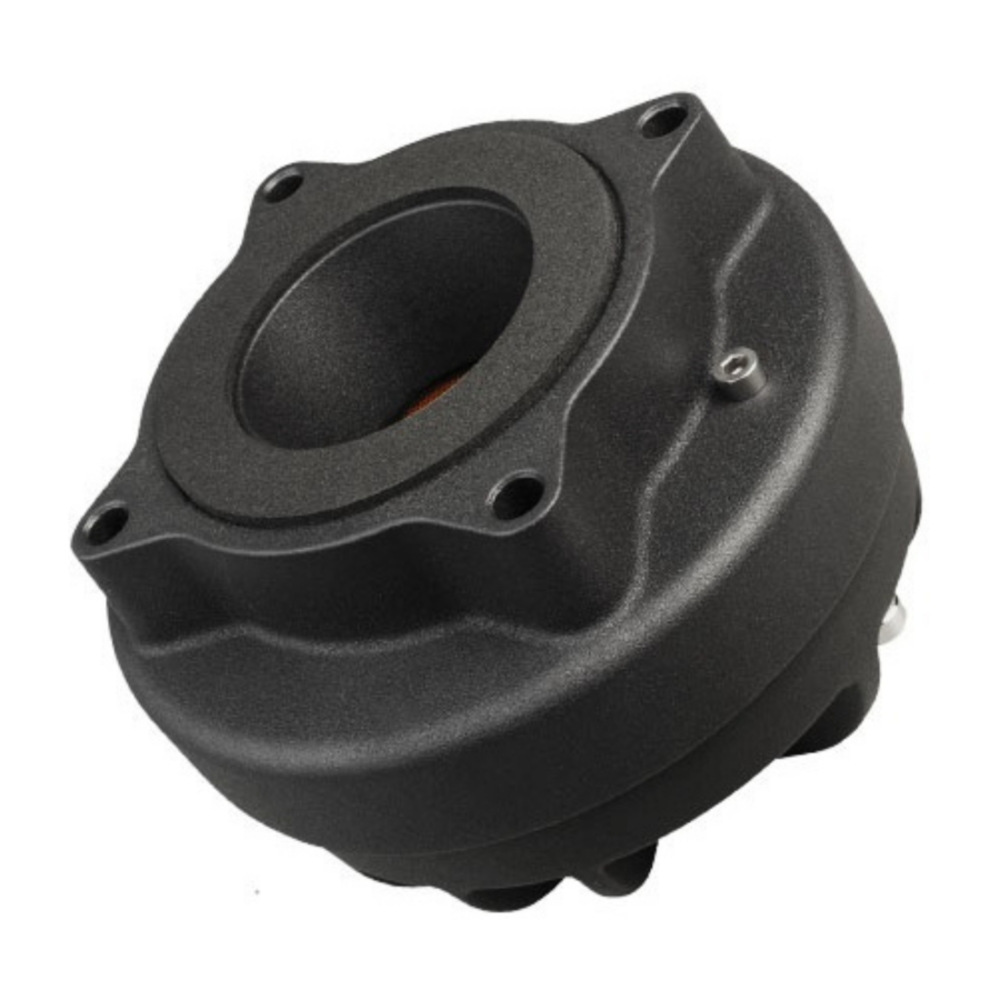

Faital Pro HF204 16ohm 2″ 80 watt Neo Compression Driver

Faital Pro HF204 16ohm 2″ 80 watt Neo Compression Driver

Product description:

Faital Pro HF204 first special feature is an annular phase plug equipped with four slots that improves performance in high frequencies.
FaitalPRO have based the magnet assembly for the HF204 on neodymium slugs this translates into signicant cost advantages whilst guaranteeing final performance. A high-frequency compression driver with a 65mm voice coil, 2” throat, and a Ketone Polymer diaphragm.

Key features:

• The extended response up to 18kHz and the minimum crossover frequency advised, equal to 900Hz.
• Therefore make it universally suited for use in two-way or three-way acoustic systems and enclosures.
• The strong 80W nominal power (AES) and 160W maximum makes it preferred choice in almost any configuration
• The polymer diaphragm is very light and dampened compared to similar products that rely on metals, such as aluminium and titanium, and works to positively characterize the resonance, making its sound less aggressive.

 HF204 specifications:

• Throat Diameter: 50.8 Inches (2 in)
• Exit Angle: 30 °
• Overall Diameter: 130.5 mm (5.14 in)
• Mounting Holes Diameter: 102 mm (90° 4xM6)
• Overall Depth: 91.5 mm (3.60 in)

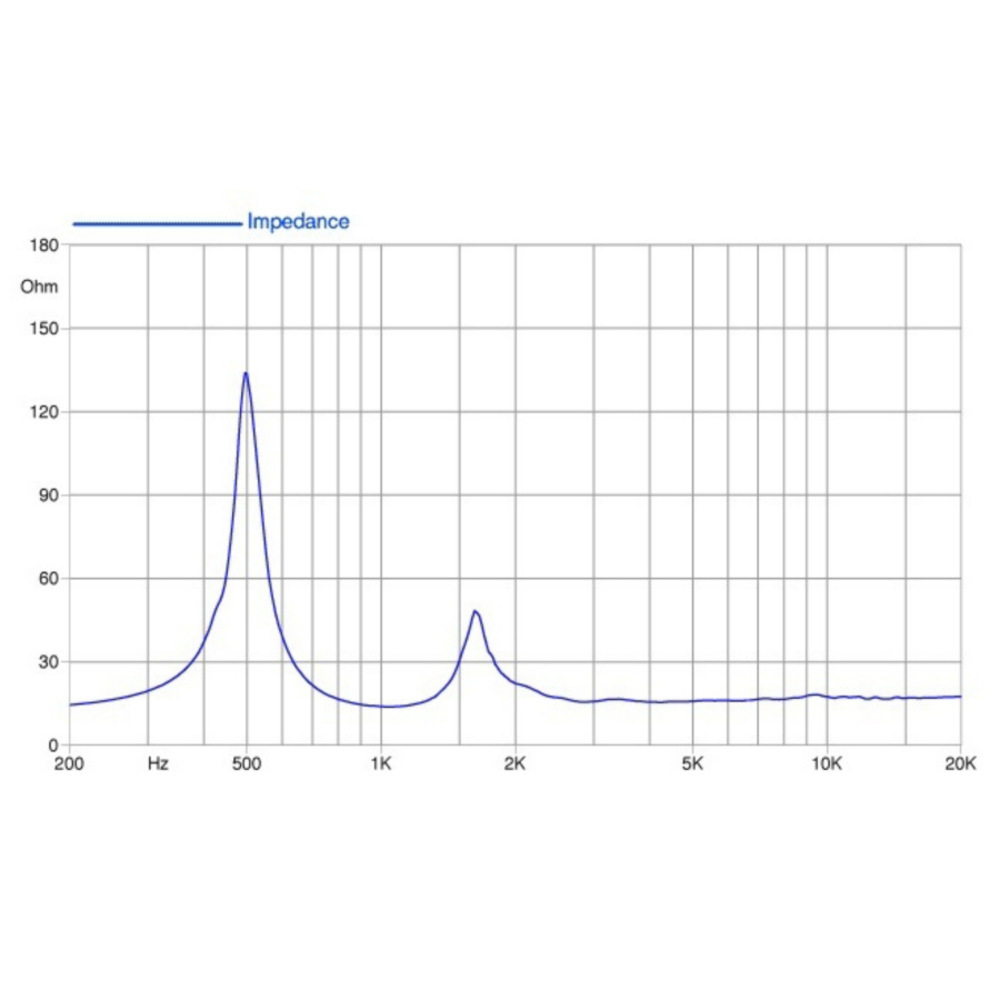

• Impedance: 16 ohm
• Minimum Impedance: 14.4 ohm
• DC Resistance: 11 ohm
• Sensitivity: 109 dB

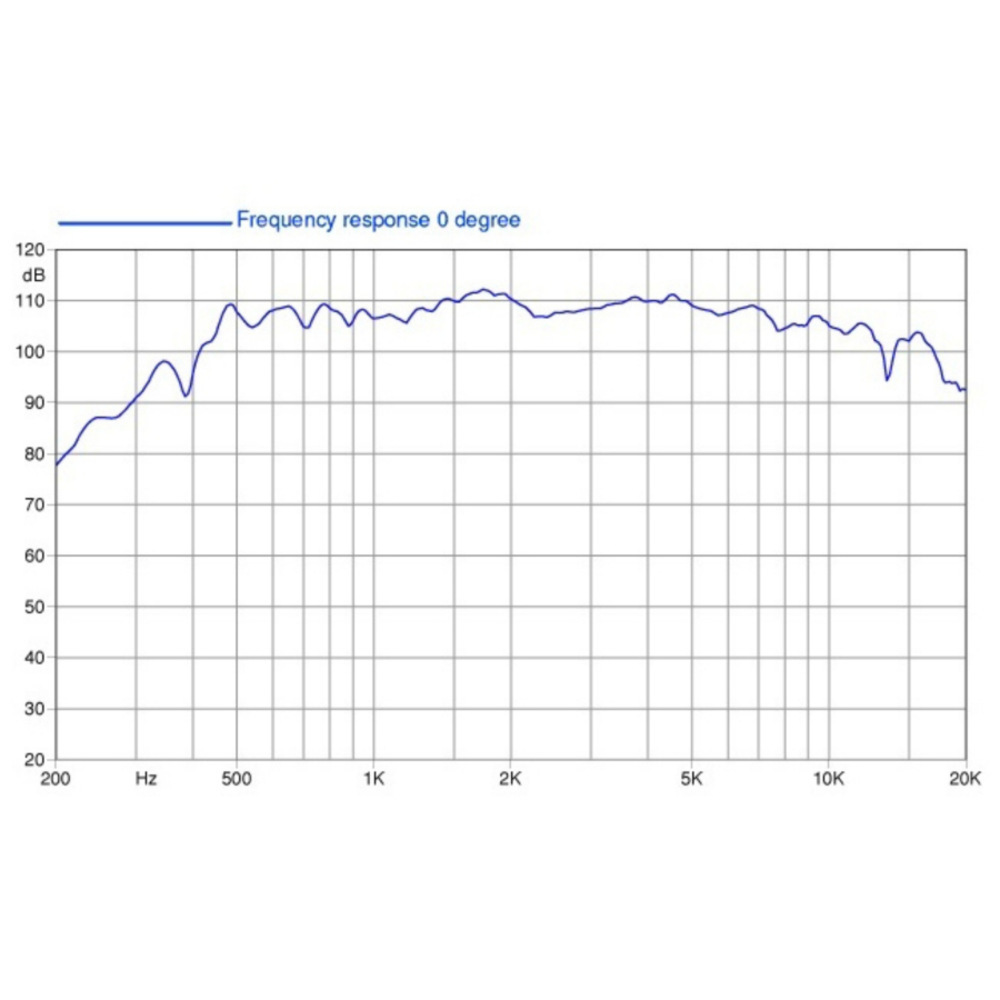

• Frequency Range: 0.7:18 kHz
• Voice Coil Diameter: 65 mm (2.56 in)
• Voice Coil Material: Al
• Voice Coil Former: Kapton
• Voice Coil Depth: 3.75 mm (0.15 in)
• Magnetic Gap Depth: 4.2 mm (0.17 in)
• Diaphragm Material: Ketone
• Diaphragm Shape: Dome
• Phase Plug Design: Annular
• Magnet Material: Neodymium Slug Crown
• Flux Density: 1.7 T
• Driver Displacement Volume: 0.75 L (0.026 ft^3)
• Minimum Crossover Frequency: 0.9 kHz

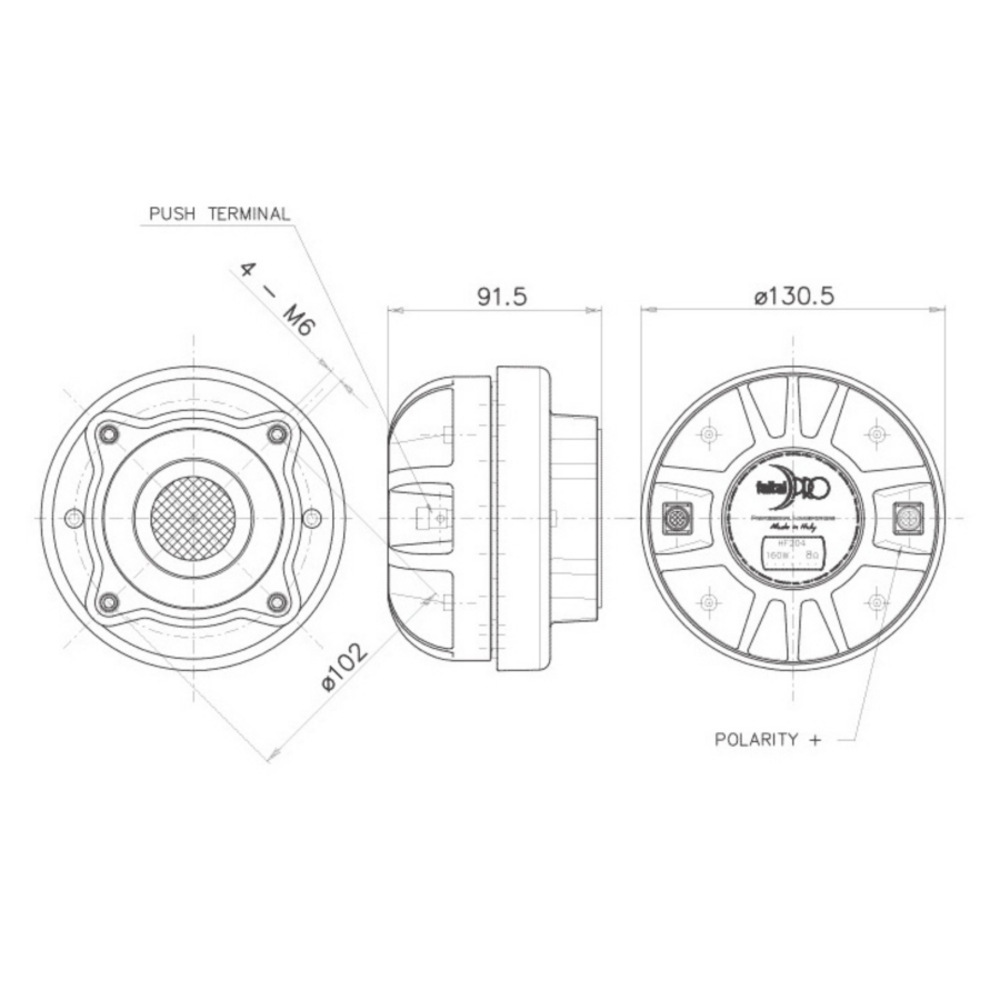

Nominal parameters:

• Throat Diameter – 50.8 mm (2 in)
• Overall Diameter – 130.5 mm (5.14 in)
• 90° Mounting Holes Diameter (4xM6) – 102 mm (4.02 in)
• Depth – 91.5 mm (3.60 in)
• Net Weight – 2.3 Kg (5.07 lb)
• Shipping Box – 185 x 170 x 122 mm (7.3 x 6.6 x 4.8 in)
• Shipping Weight – 2.6 Kg (5.73 lb)

Designed & manufactured in Italy and provided exclusively by Lean Business, this FaitalPRO compression driver comes complete with 2 years warranty.
