Faital Pro HF200 16ohm 2″ 80 watt Neo Compression Driver

Faital Pro HF200 16ohm 2″ 80 watt Neo Compression Driver

HF200 specifications:

• Exit Angle: 24 °
• Overall Diameter: 130.5 mm (5.14 in)
• Mounting Holes Diameter: 102 mm (90° 4xM6)
• Overall Depth: 95 mm (3.74 in)

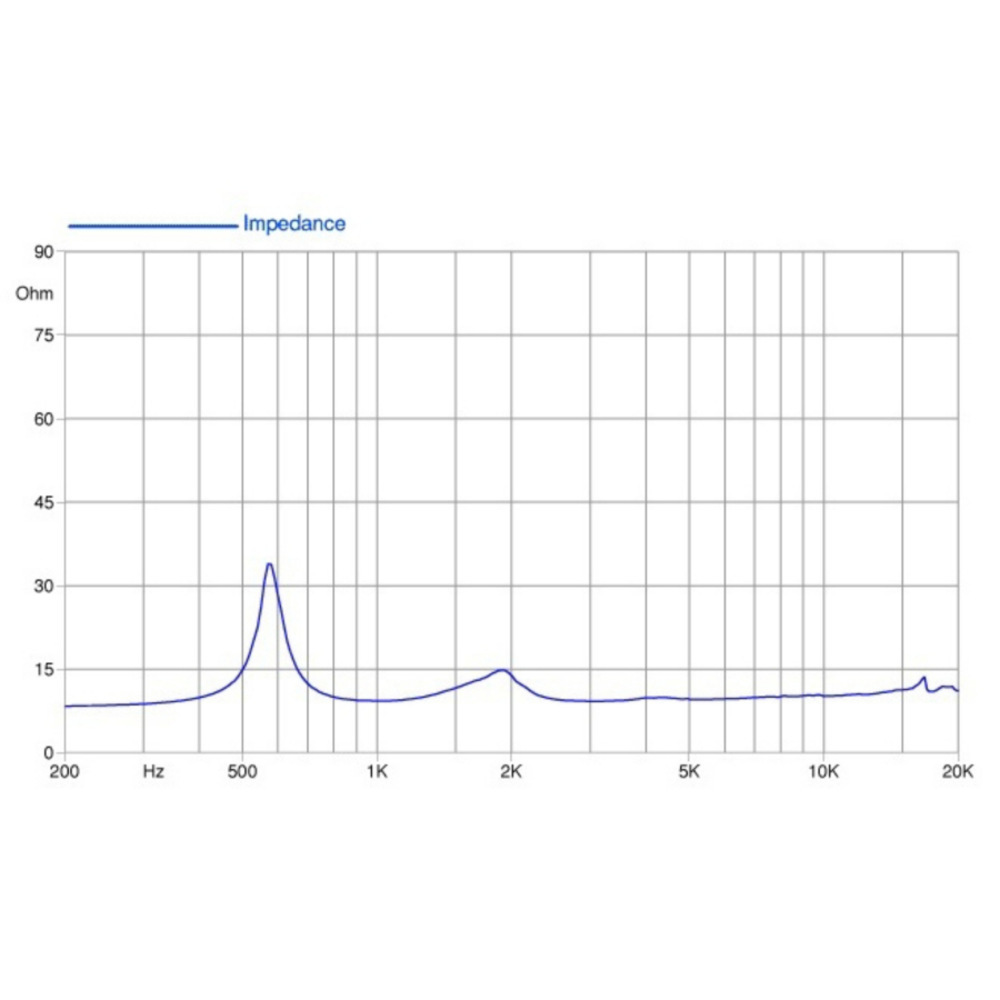

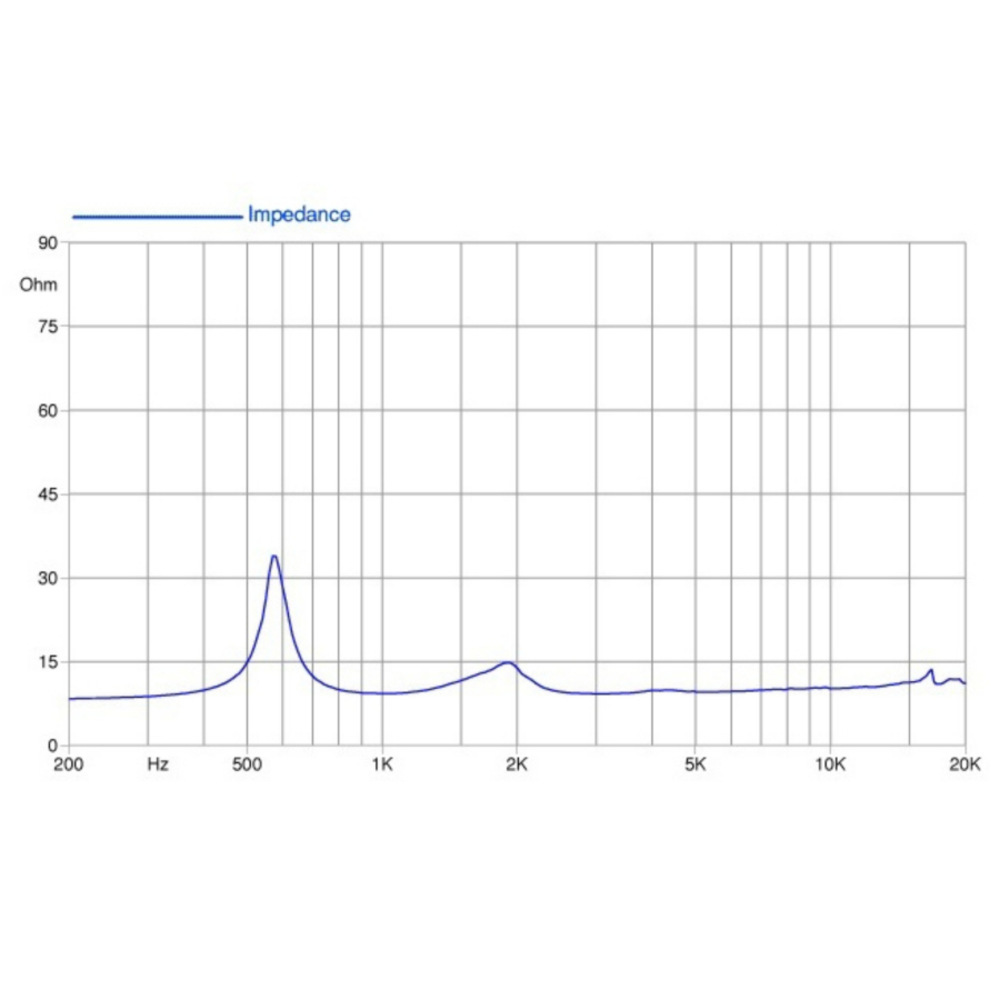

• Impedance: 16 ohm
• Minimum Impedance: 9.4 ohm
• DC Resistance: 8.2 ohm
• Sensitivity: 109 dB
• Frequency Range: 0.5:18 kHz
• Voice Coil Diameter: 74 mm (2.91 in)
• Voice Coil Material: Al
• Voice Coil Former: Kapton
• Voice Coil Depth: 2.45 mm (0.10 in)
• Magnetic Gap Depth: 2.8 mm (0.11 in)
• Diaphragm Material: Titanium
• Diaphragm Shape: Dome
• Phase Plug Design: Annular
• Magnet Material: Neodymium Slug Crown
• Flux Density: 1.95 T
• Driver Displacement Volume: 1.1 L (0.039 ft^3)
• Minimum Crossover Frequency: 0.9 kHz

Nominal parameters:

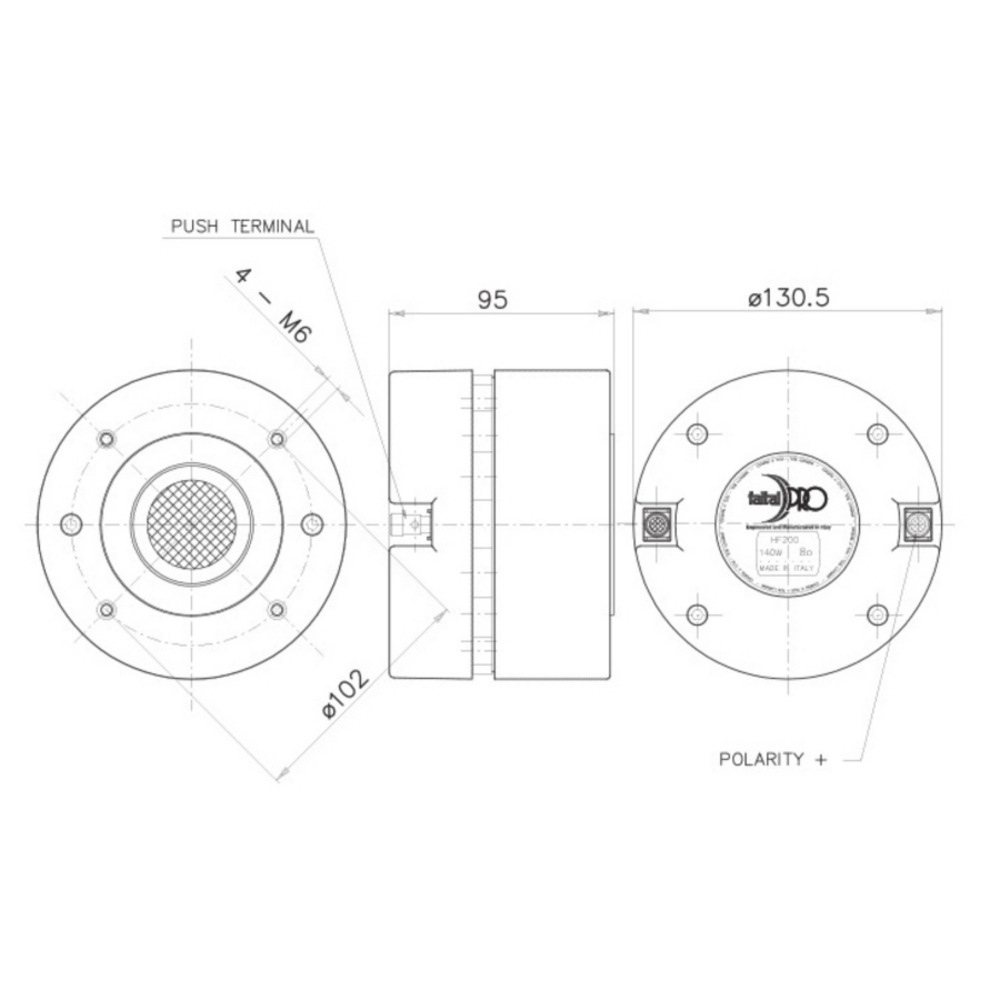

• Throat Diameter – 50.8 mm (2 in)
• Overall Diameter – 130.5 mm (5.14 in)
• 90° Mounting Holes Diameter (4xM6) – 102 mm (4.02 in)
• Depth – 95 mm (3.74 in)
• Net Weight – 3.2 Kg (7.05 lb)
• Shipping Box – 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in)
• Shipping Weight – 3.4 Kg (7.49 lb)

Designed & manufactured in Italy and provided exclusively by Lean Business, this FaitalPRO compression driver comes complete with 2 years warranty.
