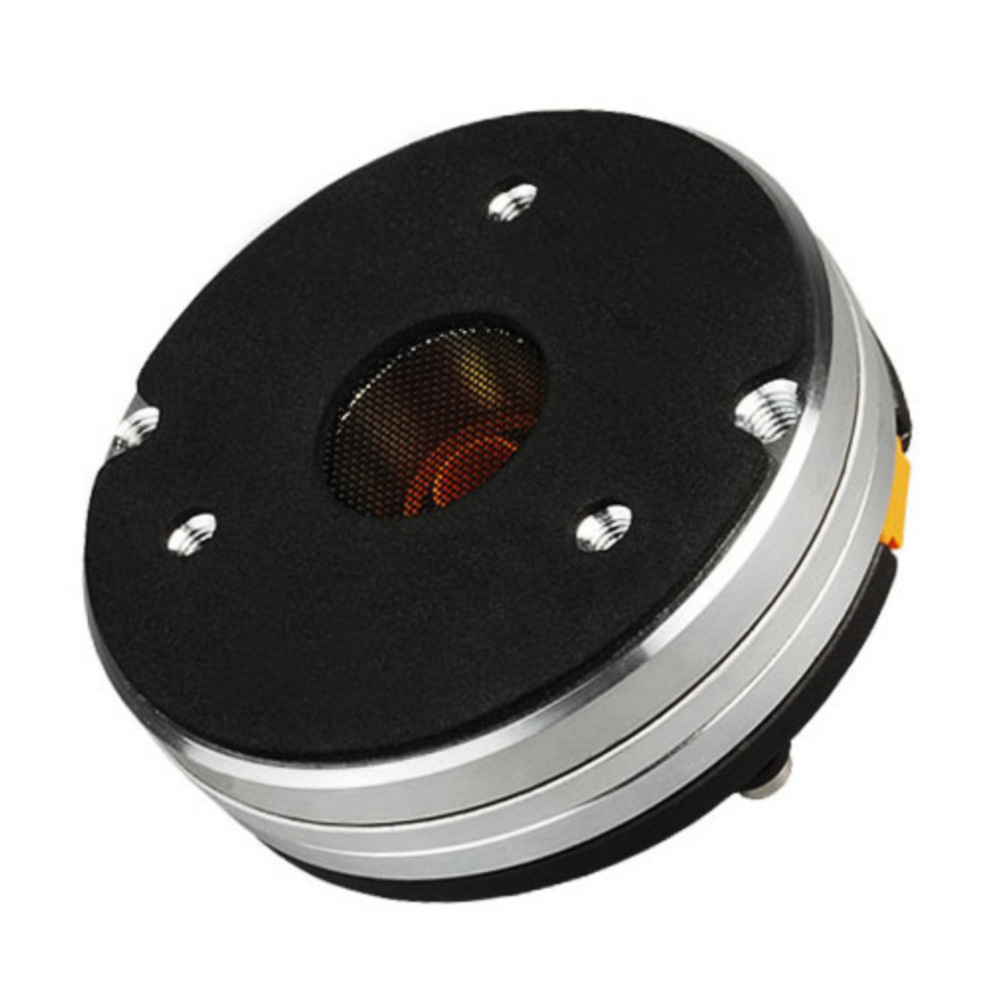

Faital Pro HF108R 8ohm 1″ 60 watt Neo Compression Driver

Faital Pro HF108R 8ohm 1″ 60 watt Neo Compression Driver

HF108R specifications:

• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.5 Ohm
• AES Power Handling: 60 W
• Maximum Power Handling: 120 W
• Minimum Crossover Frequency: 1.3 kHz
• Sensitivity (1W/1m): 109 dB
• Frequency Range: 1÷20 kHz
• Voice Coil Diameter: 44 mm (1.73 in)
• Winding Material: Al
• Former Material: Kapton
• Diaphragm Material: Ketone Polymer
• Diaphragm Shape: Dome
• Winding Depth: 2.3 mm (0.09 in)
• Magnetic Gap Depth: 2.85 mm (0.11 in)
• Flux Density: 2.1 T
• Magnet: Neodymium Ring
• Re: 5.8 Ohm
• Phase Plug Design: Annular
• Exit Angle: 31° Conical
• NET Air Volume filled by HF Driver: 0.195 dm^3 (0.007 ft^3)
• Nominal Specifications
• Throat Diameter: 25.4 mm (1 in)
• Overall Diameter: 87 mm (3.43 in)
• 180° Mounting Holes Diameter: (2xM5) 76 mm (2.99 in)
• Depth: 41 mm (1.61 in)
• Net Weight: 800 g (1.8 lb)
• Shipping Box
• (Single carton box): 147 x 130 x 82 mm (5.8 x 5.1 x 3.2 in)
• Shipping Weight: 1.2 kg (2.6 lb)
