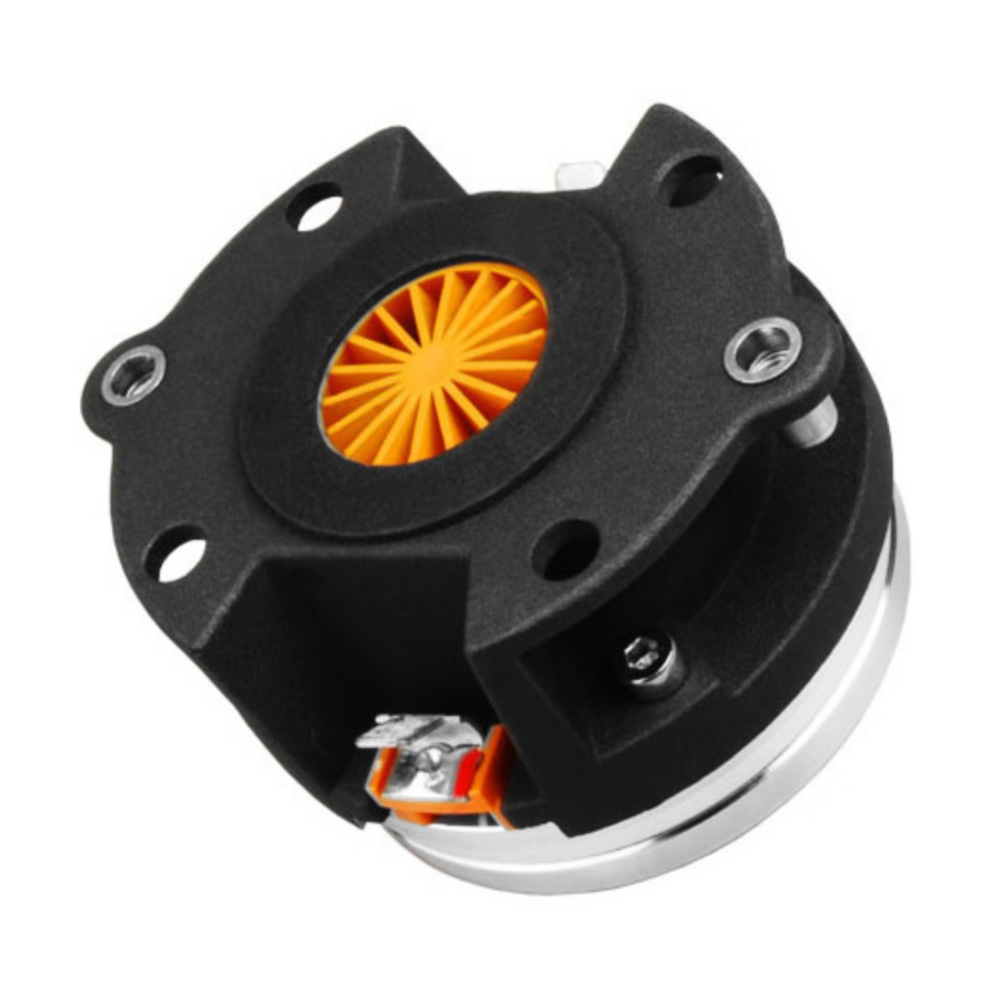

Faital Pro HF104 16ohm 1″ 40 watt Neo Compression Driver

Faital Pro HF104 16ohm 1″ 40 watt Neo Compression Driver

HF104 specifications:

• Nominal Impedance: 16 Ohm
• Minimum Impedance: 13.9 Ohm
• AES Power Handling: 40 W
• Maximum Power Handling: 80 W
• Minimum Crossover Frequency: 1.7 kHz
• Sensitivity (1W/1m): 108 dB
• Frequency Range: 1.5÷20 kHz
• Voice Coil Diameter: 37 mm (1.46 in)
• Winding Material: Al
• Former Material: Kapton
• Diaphragm Material: Ketone Polymer
• Diaphragm Shape: Annular
• Winding Depth: 2.6 mm (0.10 in)
• Magnetic Gap Depth: 2.6 mm (0.10 in)
• Flux Density: 1.85 T
• Magnet: Neodymium Ring
• Re: 11 Ohm
• Phase Plug Design: Radial
• Exit Angle: Combined Exit
• NET Air Volume filled by HF Driver: 0.16 dm^3 (0.006 ft^3)

Nominal Specifications:

• Throat Diameter: 25.4 mm (1 in)
• Overall Diameter: 91 mm (3.58 in)
• 180° Mounting Holes Diameter: (2xM5) 77.5 mm (3.05 in)
• Depth: 51 mm (2.01 in)
• Net Weight: 670 g (1.5 lb)
• Shipping Box
• (Single carton box): 98 x 90 x 64 mm (3.9 x 3.5 x 2.5 in)
• Shipping Weight: 700 g (1.5 lb)

Designed & manufactured in Italy and provided exclusively by Lean Business, this FaitalPRO compression driver comes complete with 2 years warranty.
