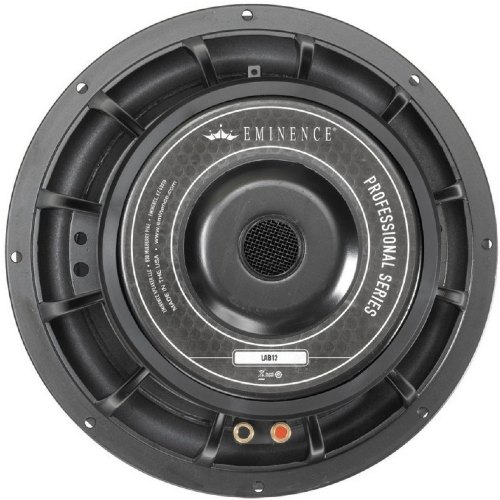

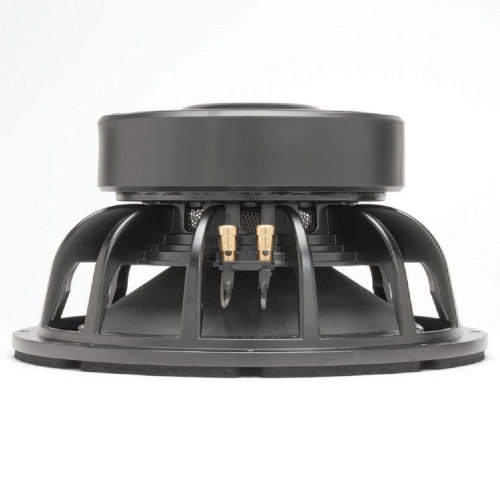

Eminence LAB 12 – 12″ Subwoofer 400 W 6 Ohms

Eminence LAB 12 – 12″ Subwoofer 400 W 6 Ohms

General Specifications:

• Nominal Basket Diameter 12”, 304.8 mm
• Nominal Impedance 6Ω
• Power Rating 400 W (rms)
• Power Rating Music Program 800 W
• Resonance 22 Hz
• Usable Frequency Range 25 Hz – 125 kHz
• Sensitivity 89.2 dB
• Magnet Weight 160 oz
• Gap Height 0.375”, 9.53 mm
• Voice Coil Diameter 2.5”, 63.5 mm
• Coil Construction Copper Polymide
• Magnet Composition Double stacked 80 oz. ferrite magnets
• Core Details Vented and extended
• Basket Materials Die-cast aluminium
• Cone Composition Paper Cone
• Cone edge Composition Kevlar – reinforced paper cone
• Dust Dome Composition Dual inverted dust caps
• Unit Weight 22 lbs, 10 kg

Key Features:

• Eminence recommend the LAB 12 speaker for vented, sealed, and horn loaded, professional audio enclosures as a subwoofer.
• The LAB 12s also makes a great automotive sub.
• As used in the legendary LABHORNS and other high performance loaded horn speaker plans.
• The LAB 12 was specifically designed for use in a horn loaded enclosures, however the LAB 12 woofer has proved also suitable for more conventional applications where extended Xmax is desired.
• The Eminence LAB 12 is a 12″ subwoofer speaker that handles 400 W.
• Features a Die Cast Aluminium Basket for strength.
• Double stacked 80 oz. ferrite magnets.
• In a horn loaded cabinet the LAB12 can produce bass output comparable to 6 to 8 conventional 18″ woofers.
