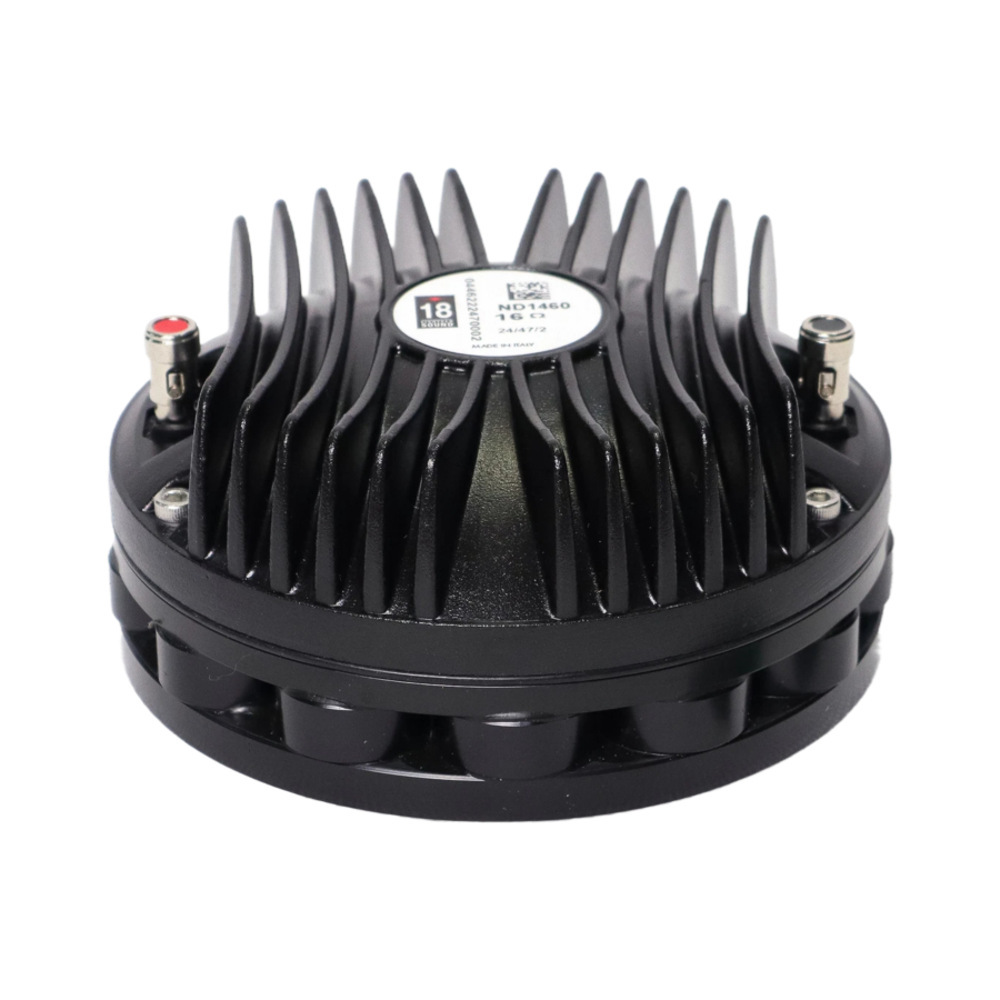

Eighteen Sound ND1460A 16 Ohm 1.4″ 80W Compression Driver

Eighteen Sound ND1460A 16 Ohm 1.4″ 80W Compression Driver

Key features:

• 110 dB 1W/1m average sensitivity
• 1,4 inch exit throat
• 3 inch edgewound aluminum voice coil
• 160W program power handling
• Aluminum PEN diaphragm
• High grade neodymium magnetic structure
• Excellent thermal exchange

ND1460A specifications:

• Throat Diameter: 35 mm (1.4 in)
• Nominal Impedance: 16 Ω
• Minimum Impedance: 10.0 Ω
• Nominal Power Handling: 80 W
• Continuous Power Handling: 160 W
• Sensitivity: 110.0 dB
• Frequency Range: 0.5 – 20.0 kHz
• Recommended Crossover: 0.8 kHz
• Voice Coil Diameter: 75 mm
• Winding Material: Aluminum
• Diaphragm Material: Aluminum – Pen
• Flux Density: 1.9 T
• Magnet Material: Neodymium

Mounting and Shipping Info:

• Overall Diameter: 132 mm (5.2 in)
• Depth: 62 mm (2.44 in)
• Net Weight: 3.2 kg (7.05 lb)
• :Shipping Weight 3.4 kg (7.5 lb)
• Shipping Box: 132x132x68 mm (5.20×5.20×2.6 8 in)
