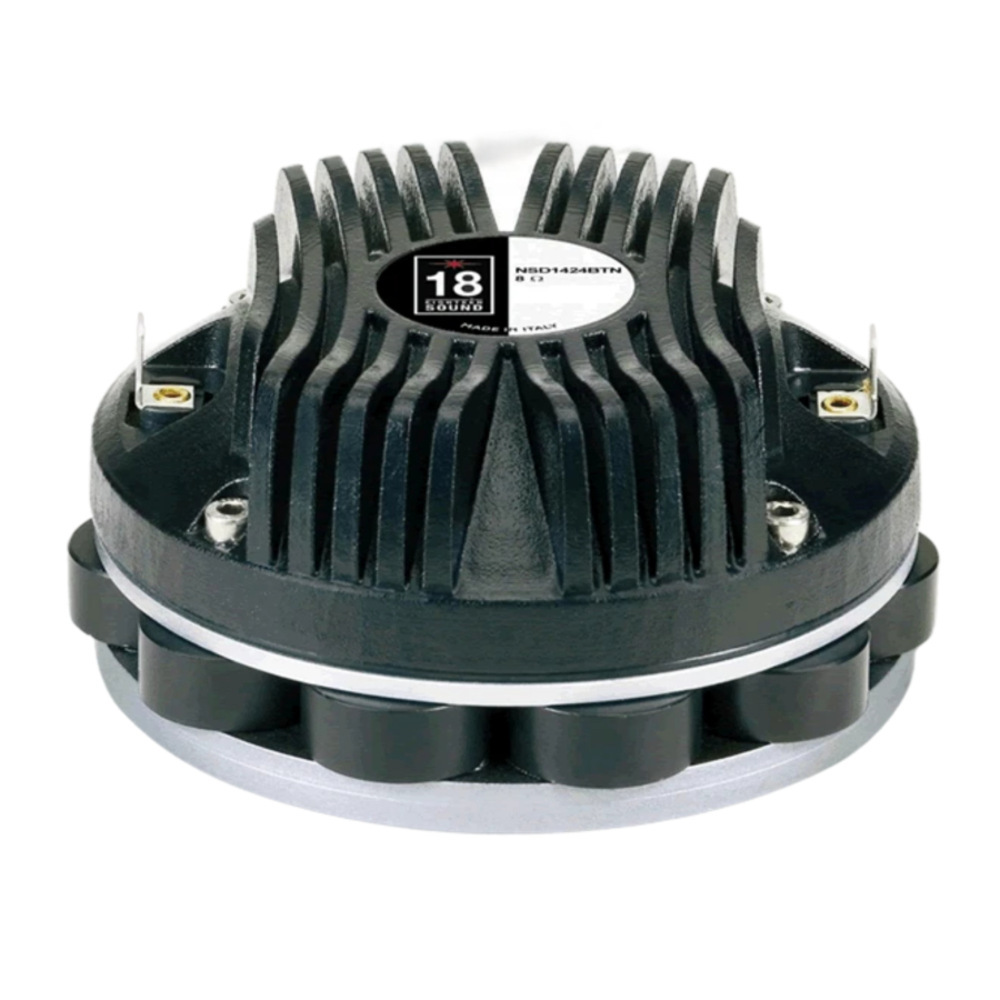

Eighteen Sound NSD1424BTN 16 Ohm 1.4″ 70W Compression Driver

Eighteen Sound NSD1424BTN 16 Ohm 1.4″ 70W Compression Driver

Key features:

• 110 dB 1W / 1m average sensitivity
• 140 W program power handling
• 1,4 inches exit throat
• 64mm (2,4 in) edgewound aluminum voice coil
• True Piston Motion TiN coated titanium diaphragm
• Proprietary phase plug design
• High grade neodymium magnetic structure
• Excellent thermal exchange

NSD1424BTN specifications:

• Throat Diameter: 35 mm (1.4 in)
• Nominal Impedance; 16 Ω
• Minimum Impedance: 12.0 Ω
• Nominal Power Handling: 70 W
• Continuous Power Handling: 140 W
• Sensitivity: 110.0 dB
• Frequency Range: 0.8 – 20.0 kHz
•  Recommended Crossover: 1.2 kHz
• Voice Coil Diameter: 61 mm (2.4 in)
• Flux Density: 1.9 T

Mounting and Shipping Info:

• Overall Diameter: 116 mm (4.57 in)
• Depth: 54 mm (2.13 in)
• Net Weight: 1.7 kg (3.75 lb)
• Shipping Weight: 1.9 kg (4.19 lb)
• Shipping Box: 132x132x68 mm (5.20×5.20×2.6 8 in)
