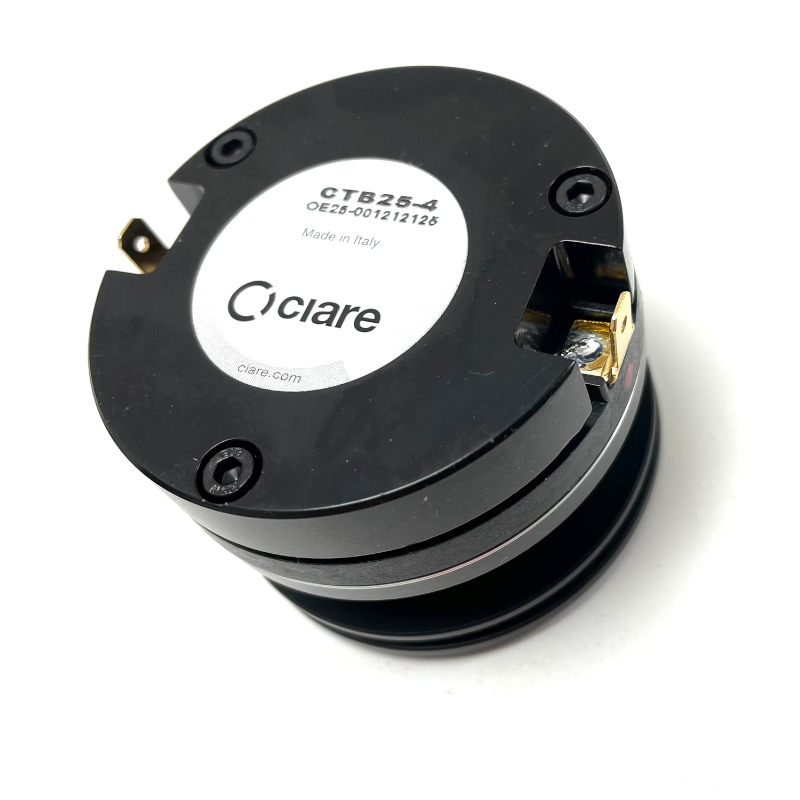

Ciare CTB25 4ohm 1″ Neo Bullet Tweeter
£102.79
Shallow mount bullet tweeter
Very light
Suitable for car, PA and Hifi
Super tweeter performance
Very compact
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands.
In stock (can be backordered)
Ciare CTB25 4ohm 1″ Neo Bullet Tweeter
Program Power 250 W
Rated impedance 4 Ohm
Nominal diameter 1”- 26 mm
Sensitivity (2,83V/1m) 107 dB
Voice coil diameter 1 in – 26 mm
Frequency Range 4000-20000 Hz
| MOUNTING INFORMATION | |
| Overall Diameter | 58 mm – 2,28 in |
| Bolt Circle Diameter | 4.57″ / 116mm |
| Baffle Cutout Diameter | 44 mm – 1,73 in |
| Depth | 41 mm – 1,61 in |
| Net Weight | 0,35 Kg – 0,77 lb |
| MATERIALS | |
| Horn Material | Aluminum |
| Cone Shape | Planar |
| Diaphragm | Aluminum |
| Former | Kapton |
| Magnet | Neodymium |
| Diaphragm Shape | Planar |
| Surround | Nomex Fabric |
| Ferrofluid | Yes |
| Connection | Faston |
| THIELE-SMALL PARAMETERS | |
| Resonant Frequency (Fs) | 2.1 kHz |
| Voice Coil Impedance (Re) | 3.2 ohms |
| Flux Density | 1.65 TM |
About Ciare:
Ciare is a company that is constantly on the cutting edge of technological innovations and constantly meeting market requirements, remaining absolutely true to its original ideals and, above all, constantly looking for outstanding products.
The experience gained over years of activity and the ability to fully autonomously manage all stages of product realization allow the company to achieve the highest quality standards in the realization of each component.
Why choose Lean Business Audio?
50 years of experience of designing, building and supplying Home, Car and Professional Audio.
Huge stocks of leading loudspeakers and audio brands
KEF, Celestion, Eminence, WGS, Montage, BMS Speakers, Faital Pro, Eighteen Sound, Ciare
Low Worldwide shipping rates.
Free Delivery on selected brands with the UK.
Price matching.
For more information please contact us at: +44(0)1473 744089
Or Email us at: sales@lean-business.co.uk
| Weight | 2 kg |
|---|---|
| Brand | Ciare |
| Size | 44mm |
| Magnet type | Neodymium |
| Ohm | 8ohm |
| Power | 75W |
| Condition | New |
