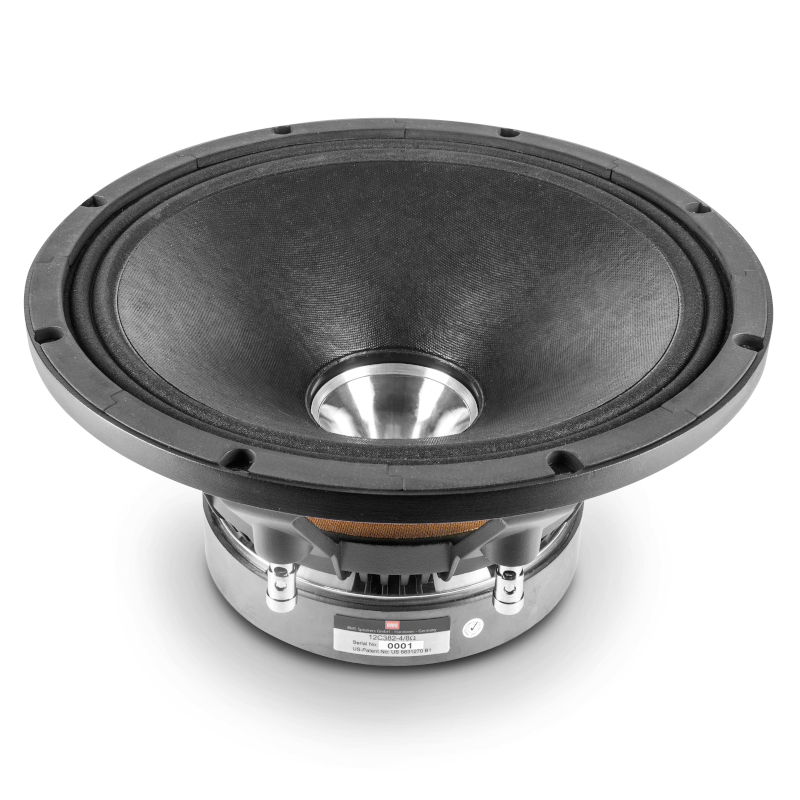

BMS 12C382 8 Ohm 12″ 500W / 80W Coaxial Loudspeaker

BMS 12C382 8 Ohm 12″ 500W / 80W Coaxial Loudspeaker

General Specifications:

• Nominal Impedance 2-way Transducer
• Power Handling AES Noise 8Ω
• Sensitivty (1 W / 1 m) 500 W (rms)
• Frequency response 98 dB
• Voice Coil Diameter 45 – 20.000 Hz
• Voice Coil Material 3″, 77 mm
• Cu mm Voice Coil winding Depth
• Magnet Gap Depth 19 mm
• Cast Aluminium Basket 10
• Effect. Diaphragm Diameter D 249 mm

Mounting Information:

• Overall Diameter 318 mm
• Mounting Holes Diameter 8 x (7 x 8) mm
• Bolt Circle Diameter 300 mm
• Baffle cut-out Diameter 285 mm
• Overall depth 166 mm
• Net Weight 7.75 kg

Thiele-Small Parameters:

• Resonance Frequency (Fs) 52 Hz
• DC Resistance (Re) 5.80Ω
• Mechanical Q Factor (Qms) 5.60
• Electrical Q Factor (Qes) 0.30
• Total Quality Factor (Qts) 0.29
• Equivalent Volume (Vas) 57 L
• Moving Mass (Mms) 0.055 kg
• Mechanical Complience:(Cms) 0.170 mm / N
• BL Factor (BL) 18.6 Tesla m
• Effective Piston Area (Sd) 0.0487 m²
• Max. linear Excursion (Xmax) +/- 4.5 mm

High Frequency:

• Nominal Impedance 8Ω
• Power Handling AES 80 W
• Peak Power 450 W
• Sensitivity (1 W / 1 m) 110 dB
• Frequency Range 700 – 20.000 Hz
• Recommended Crossover 1100 Hz
• Voice Coil Diameter 1.75″, 44.4 mm
• Magnet Material Ceramic
• Flux Density 1.8 T
• Voice Coil Material Copper Clad Aluminium
• (2 layers in- and outside of the VC) Kapton TM Voice Coil Former
• Basket Cast Aluminium
• Diaphragm Material Polyester

Key Features:

• 98 dB sensitivity 1 W / 1 m
• 500 W + 80 W Power Handling
• 3″ Copper Sandwich voice Coil
• Double Treated Cone for water protection
• Triple Aluminium Demodulating Rings
• Single Point Source providing coherent Wave Front
• Very high SPL, superb Quality Sound
• Optimal for compact 2-way Systems
• Light weight carbon fibre diaphragm
