SB AUDIENCE NERO-12MWN700D 12″ 8 ohm Neodymium Midwoofer Loudspeaker
£179.95
- Wide Frequency Range
- High Magnet Strength
- 3″ voice coil with APC (Advanced Polymer Coating)
- Superb in high power mid top designs
- Works well in paraflex designs
- 700 Watts RMS
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands.
Only 2 left in stock (can be backordered)
SB AUDIENCE NERO-12MWN700D 12″ 8 ohm Neodymium Mid Loudspeaker
Key Features:
- Proprietary cone paper material with manila pulp
- Strong neodymium motor
- 3″ voice coil with APC (Advanced Polymer Coating)
- Interleaved Sandwich Voice Coil technology
- Cast aluminum chassis
- Minimum damping fiber glass voice coil former
- Copper sleeve for low inductance and reduced distortion
- Vented motor for reduced compression
SB AUDIENCE NERO-12MWN700D Specifications:
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 5.2 Ohm |
| AES Power Handling (1) | 700 W |
| Maximum Power Handling (2) | 1400 W |
| Sensitivity (1W/1m) | 97 dB |

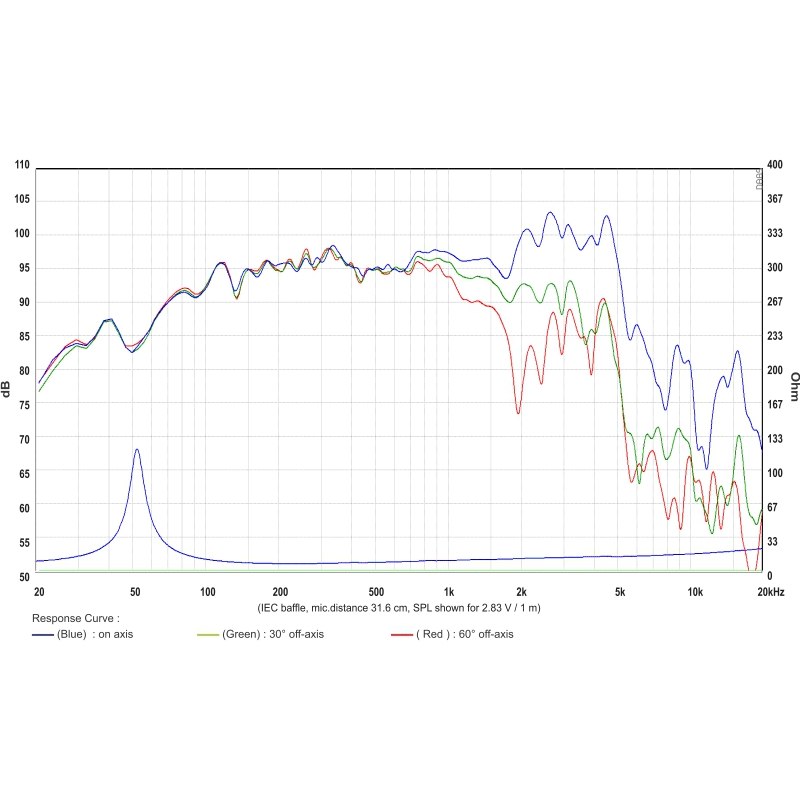

| Frequency Range | 52 – 6300 Hz |
| Voice Coil Diameter | 75.6 mm (3 in), Interleaved sandwich |
| Winding Material | Copper |
| Former Material | Till |
| Winding Depth | 17.8 mm |
| Magnetic Gap Depth | 10 mm (0.39 in) |
| Flux Density | 1.07 T |
| Magnet | Neodymium |
| Basket Material | Aluminium die cast |
| Demodulation | Extended copper cap |
| Cone Surround | Triple roll with damping glue |
| NET Air Volume filled by driver | 2.15 liters |
| Spider Profile | Single constant height waves |
| Weather Resistant | Yes |
| Thiele Small Parameters | |
| Fs | 52.7 Hz |
| Re | 5 .3 Ohm |
| Qes | 0.4 |
| Qms | 8.9 |
| Qts | 0.38 |
| Vas | 52.5 liters |
| Sd | 543.3 cm² |
| Xmax | 7.3 mm |
| Xdamage | 18 mm |
| Mms | 72.5 g |
| BI | 17.9 Tm |
| Le | 0.32 mH |
| Cms | 0.13 mm/N |
| Rms | 2.7 Kg/s |
| Eta Zero | 1.86% |
| EBP | 132 |

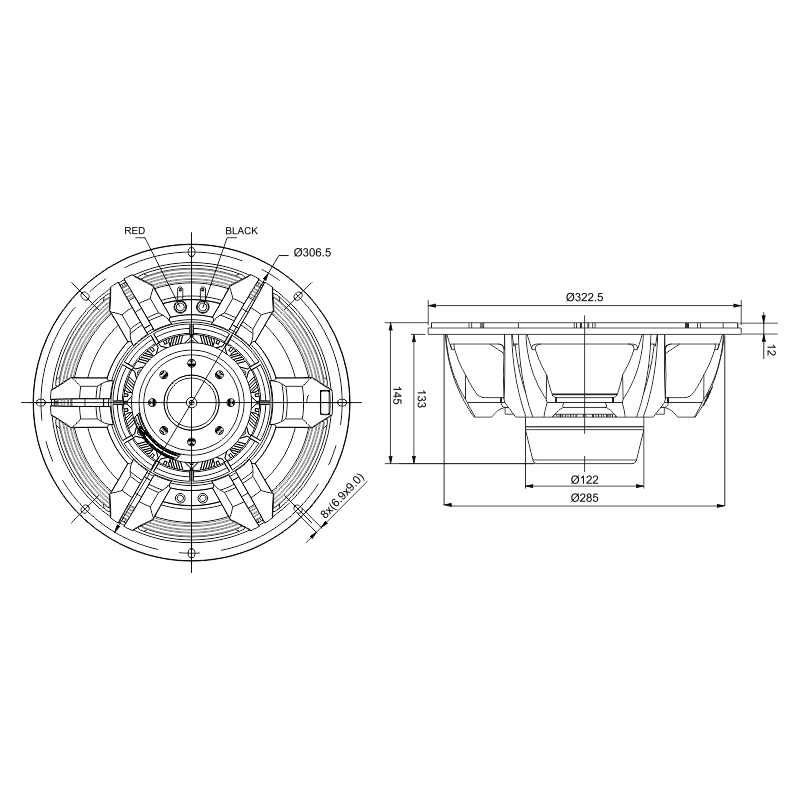

| Dimensions & Weight | |
| Overall Diameter | 322.5 mm (12.7 in) |
| Bolt Circle Diameter | 306.5 mm (12.06 in) |
| Baffle Cutout Diameter | 287 mm (11.29 in) |
| Mounting Depth | 133 mm (5.24 in) |
| Flange and Gasket Thickness | 12 mm (0.47 in) |
| Net Weight | 4.15 Kg (9.15 lb) |
| Shipping Box | 354 x 354 x 182 mm (13.93 x 13.93 x 7.16 in) |
| Gross Weight | 5.3 Kg (11.68 lb) |
Why Choose Lean Business Audio?
50 years of experience of designing, building and supplying Home, Car and Professional Audio.
Huge stocks of leading loudspeakers and audio brands
KEF, Celestion, Eminence, WGS, Montage, BMS Speakers, Faital Pro, Eighteen Sound, Ciare
Low Worldwide shipping rates.
Free Delivery on selected brands with the UK.
Price matching.
For more information please contact us at: +44(0)1473 744089
Or Email us at: sales@lean-business.co.uk
| Weight | 6 kg |
|---|---|
| Brand | SB AUDIENCE |
| Size | 12" |
| Magnet type | Neodymium |
