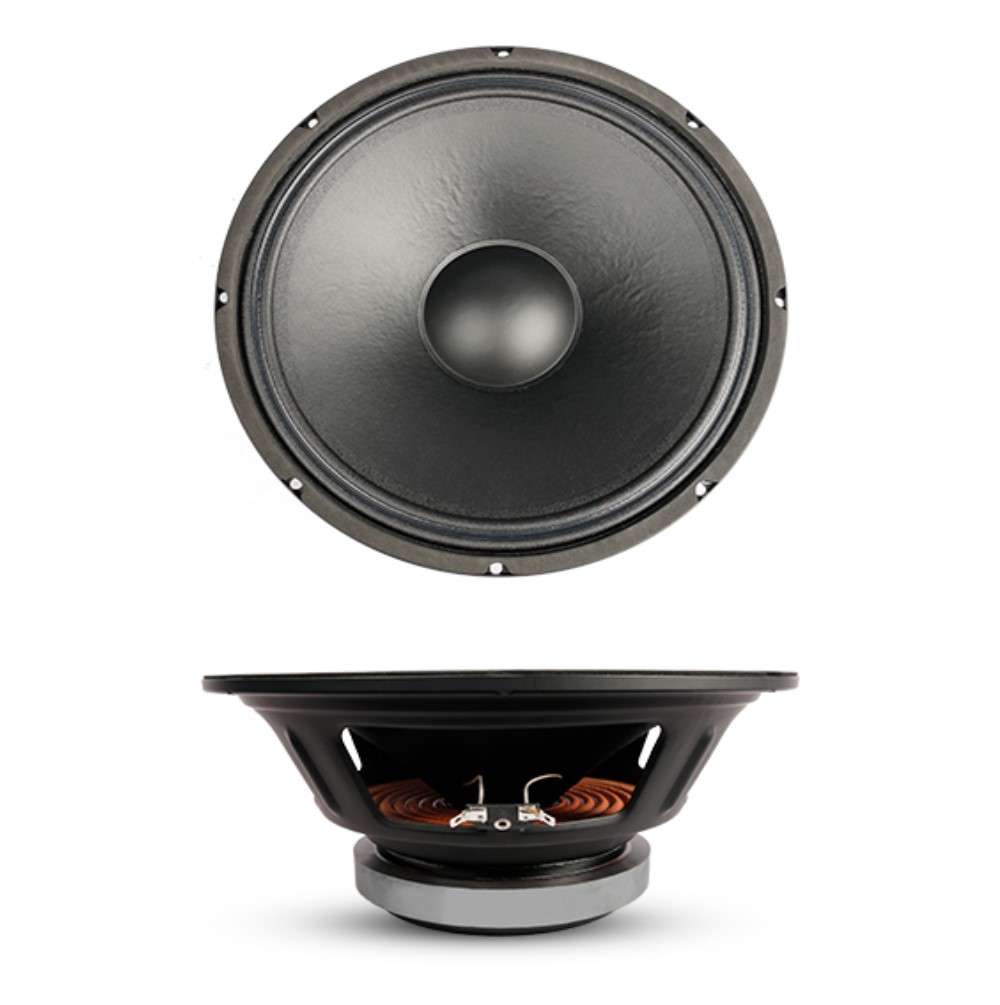

SB AUDIENCE BIANCO-12MW200 12″ 8 ohm Ferrite Midwoofer Loudspeaker
£68.29
- Proprietary cone paper material with silk cotton tree and manila pulp
- 2.4″ voice coil with APC (Advanced Polymer Coating)
- Vented pole piece for reduced compression
- Minimum damping fiber glass voice coil former
- Long life silver lead wires
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands.
Only 1 left in stock (can be backordered)
SB AUDIENCE BIANCO-12MW200 12″ 8 ohm Ferrite Midwoofer Loudspeaker
Key Features:
- Proprietary cone paper material with silk cotton tree and manila pulp
- 2.4″ voice coil with APC (Advanced Polymer Coating)
- Vented pole piece for reduced compression
- Minimum damping fiber glass voice coil former
- Long life silver lead wires
- Weather-proof coated conepaper
SB AUDIENCE BIANCO-12MW200 Specifications:
| PRO Product | BIANCO-12MW200 |
| Speaker Type | Midwoofer |
| Qty/ Box | 2 |
| Overall Diameter (mm) | 306 |
| Bolt Circle Diameter (mm) | 295 |
| Baffle Cutout Diameter (mm) | 278 |
| Mounting Depth (mm) | 126 |
| Flange and Gasket Thickness (mm) | 9.2 |
| Net Weight (kg) | 5.05 |
| Shipping Box (mm) | 354x354x182mm |
| Gross Weight (kg) | 6.59 |
| Nominal Impedance (Ohm) | 8 |
| Minimum Impedance (Ohm) | 5.2 |
| AES Power Handling (W) | 200 |
| Maximum Power Handling (W) | 400 |
| Sensitivity (1W/1m) | 99 |
| fo | 50 |
| Freq Range (Hz) | 51-5350 |
| Voice Coil Diameter (mm) | 60.5 |
| Winding Material,Former Material | Copper, Till |
| Winding Depth (mm) | 16.6 |
| Magnetic Gap Depth (mm) | 8 |
| Flux Density (T) | 1.23 |
| Magnet | Ferrite |
| SPL | 98 |
| Basket Material | Stamped Steel |
| Demodulation | – |
| Cone Surround | Double half roll with damping glue |
| NET Air Volume filled by driver (liters) | 3.33 |
| Spider Profile | Single constant height waves |
| Weather Resistant | Yes |
| Fs | 51 |
| Re | 5.3 |
| Qes | 0.51 |
| Qms | 14.33 |
| Qts | 0.49 |
| Vas | 62.9 |
| Sd | 543.3 |
| Xmax (3) | 6.97 |
| Xdmage (4) | 16 |
| Mms | 65.2 |
| BL | 14.7 |
| Le | 8.3 |
| Cms | 0.15 |
| Rms | 1.45 |
| Eta Zero | 1.56 |
| EBP | 100 |
