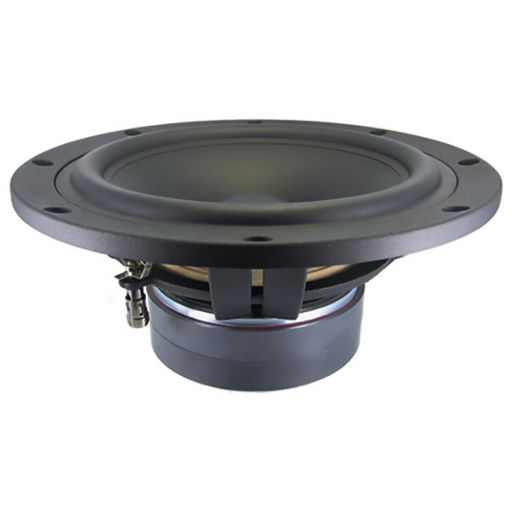

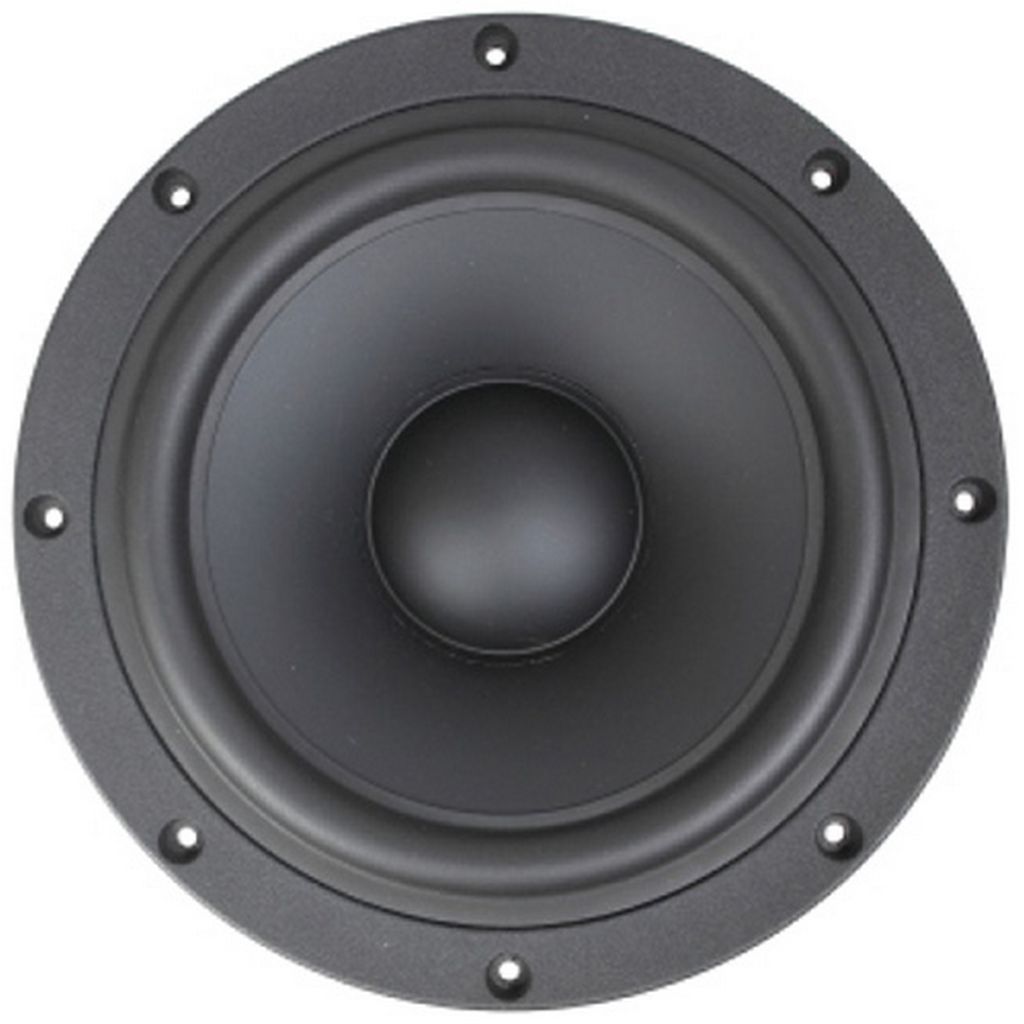

SB ACOUSTICS SB29NRX75-8 10” 8ohm Ferrite NRX Woofer Loudspeaker
Product Description:
SB ACOUSTICS SB29NRX75-8, Hard Paper proprietary cone materials made in-house for consistency.
Low damping SBR rubber surround with high exertion and resilience.
Open structure cast frame for reduced reflections and compression.
Aluminium alloy for light weight, non-magnetic and extra rigidity.
Shorting Copper cap on pole piece. Non-inductive 75mm coil former.
Key Features:
- Hard paper cone for improved piston operation (made in-house)
- Vented pole piece for minimum compression
- Vented cast aluminium chassis for optimum strength and low compression
- 3 copper voice coil for improved power handling
- Long life silver lead wires
- Low damping rubber surround for improved dynamic linearity
- Non-conducting fiber glass voice coil former for minimum damping
SB29NRX75-8 Specifications:
| Description | 75mm Voice coil, norex paper cone, rubber surround, ferrite motor, aluminium chassis |
|---|---|
| Type | Woofer |
| Size | 10″ |
| Price Type | each |
| Power | 200Wrms |
| Coil | 75.6mmØ |
| Width | 290mmØ |
| Impedance | 8Ω (Re 6.2Ω) |
| Depth | 133.1mm |
| Mag. | 2.1kg |
| Sens. | 88dB |
| Re | 6.2Ω |
| Qms | 7.06 |
| Qes | 0.39 |
| Qts | 0.37 |
| Vas | 85.6L |
| Sd | 312cm² |
| Cms | 0.63mm/N |
| Fs | 26Hz |
| Mms | 58.9g |
| Zn | 1.34mH |
| Le | 1.34mH |
| Rms | 1.4kg/s |
| Diam. | 290mmØ |
| Manufacturer | SB Acoustics |
