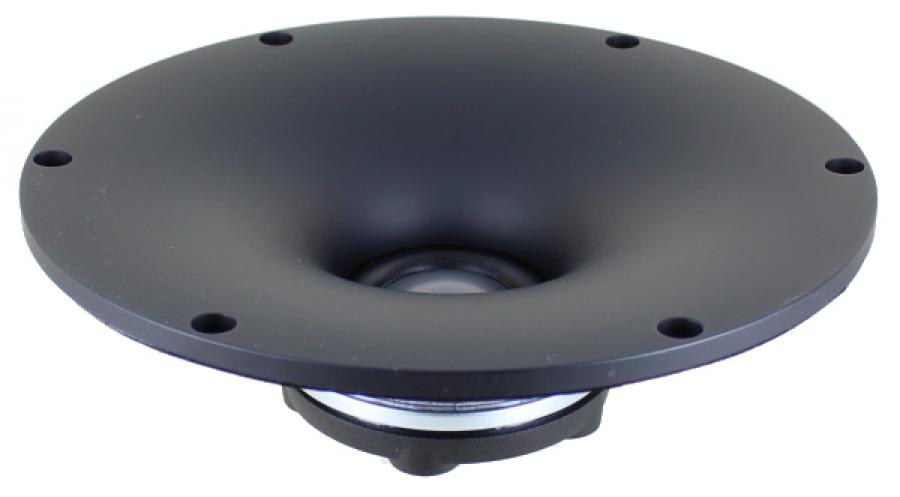

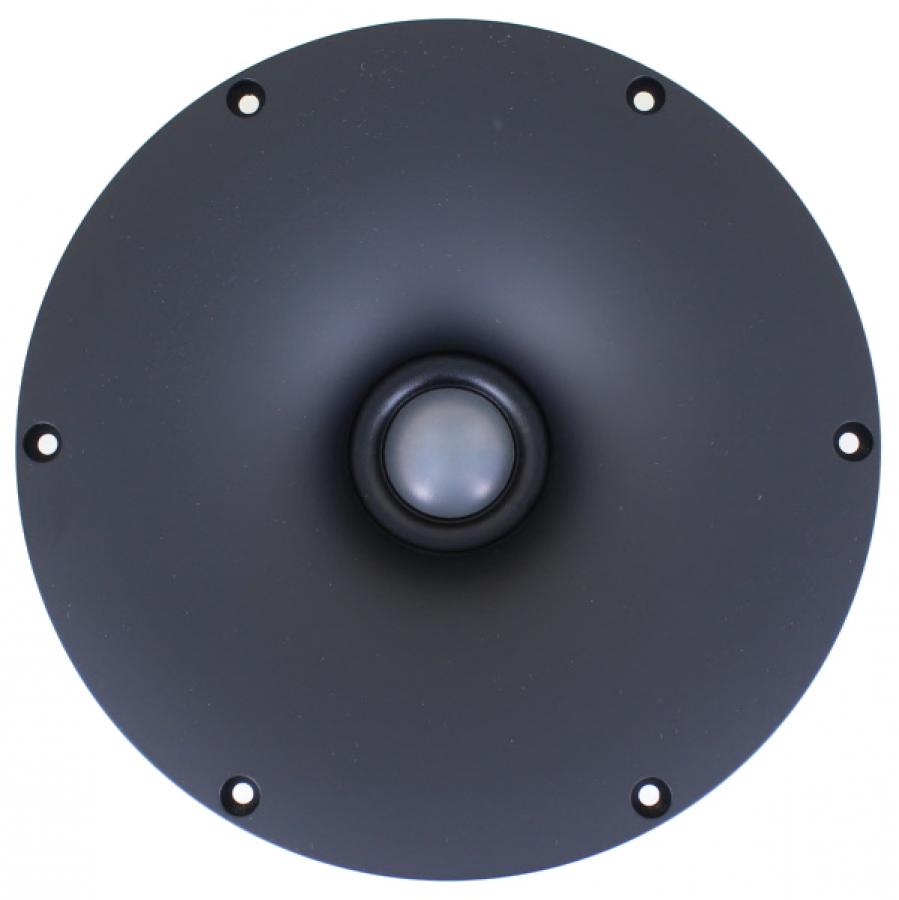

SB ACOUSTICS SATORI TW29BNWG-4 29mm 4 ohm Neodymium Beryllium Dome Tweeter

SB ACOUSTICS SATORI TW29BNWG-4 29mm 4ohm Neodymium Beryllium Dome Tweeter

Product Description:

The new Satori TW29BNWG-4 Beryllium dome tweeter has arrived!
Beryllium is known for its open and spatial sound, often described as holographic.
The self damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters.
All dome materials have a different tonal and spatial presentation. Beryllium has a real, positive difference providing a experience unlike all other dome materials.

Key Features:

• Beryllium dome for non-resonant high frequency extension
• Dual balanced compression chambers for improved dynamics
• Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
• High saturation neodymium motor system with T-shaped pole piece for lower distortion
• Non-reflective cast aluminium chamber with optimized damping for improved dynamics
• Shallow flow optimized magnet structure for optimum coupling to rear chamber
• CCAW voice coil for low moving mass
• Long life silver lead wires
• Low resonance frequency for extended range
• Solid aluminium waveguide
• Controlled directivity
• Adapter ring for bolt-less mounting to driver

Product Specifications:

• Nominal impedance: 4 Ω
• DC resistance, Re: 3.0 Ω
• Voice coil inductance, Le : 0.02 mH
• Voice coil diameter: 29.0 mm
• Voice coil height: 2.0 mm
• Air gap height: 3 mm
• Linear coil travel (p-p): 1.0 mm
• Moving mass incl. air, Mms: 0.46 g
• Free air resonance, Fs: 700 Hz
• Sensitivity (2.83 V / 1m): 97 dB
• Mechanical Q-factor, Qms: 2.1
• Electrical Q-factor, Qes: 0.60
• Total Q-factor: 0.46
• Force Factor, BI: 3.1 Tm
• Rated power handling: 80 W
• Magnetic flux density: 1.5 T
• Magnetic weight: 0.1 kg
• Net weight: 0.63 kg
