Faital Pro HF146R 16ohm 1.4″ 70 watt Neo Compression Driver

Faital Pro HF146R 16ohm 1.4″ 70 watt Neo Compression Driver

HF146R specifications:

• Nominal Impedance: 16 Ohm
• Minimum Impedance: 15 Ohm
• AES Power above 0.9 kHz (1) 80 W
• AES Power above 0.65 kHz 40 W
• Maximum Power above 0.9 kHz (2) 160 W
• Maximum Power above 0.65 kHz 80 W
• Minimum Crossover Frequency (3): 0.9 kHz
• Sensitivity (1W/1m) (4): 109 dB
• Frequency Range: 0.7÷18 kHz
• Voice Coil Diameter: 65 mm (2.56 in)
• Winding Material: Al
• Former Material: Kapton
• Diaphragm Material: Ketone Polymer
• Diaphragm Shape: Dome
• Winding Depth: 3 mm (0.12 in)
• Magnetic Gap Depth: 4.2 mm (0.17 in)
• Flux Density: 1.7 T
• Magnet Neodymium Slug Crown
• Re: 11 Ohm
• Phase Plug Design Annular
• Exit Angle (5) 29° Conical
• NET Air Volume filled by HF Driver 0.55 dm^3 (0.019 ft^3)

Technical specifications:

• Throat Diameter: 35.6 Inches (1.4 in)
• Exit Angle: 29 °
• Overall Diameter: 123 mm (4.84 in)
• Mounting Holes Diameter: 102 mm (90° 4xM6)
• Overall Depth: 63.5 mm (2.5 in)
• Impedance: 16 ohm
• Minimum Impedance: 15 ohm
• DC Resistance: 11 ohm
• Sensitivity: 109 dB
• Frequency Range: 0.7:18 kHz
• Voice Coil Diameter: 65 mm (2.56 in)
• Voice Coil Material: Al
• Voice Coil Former: Kapton
• Voice Coil Depth: 3 mm (0.12 in)
• Magnetic Gap Depth: 4.2 mm (0.17 in)
• Diaphragm Material: Ketone
• Diaphragm Shape: Dome
• Phase Plug Design: Annular
• Magnet Material: Neodymium Slug Crown
• Flux Density: 1.7 T
• Driver Displacement Volume: 0.55 L (0.019 ft^3)
• Minimum Crossover Frequency: 0.9 kHz

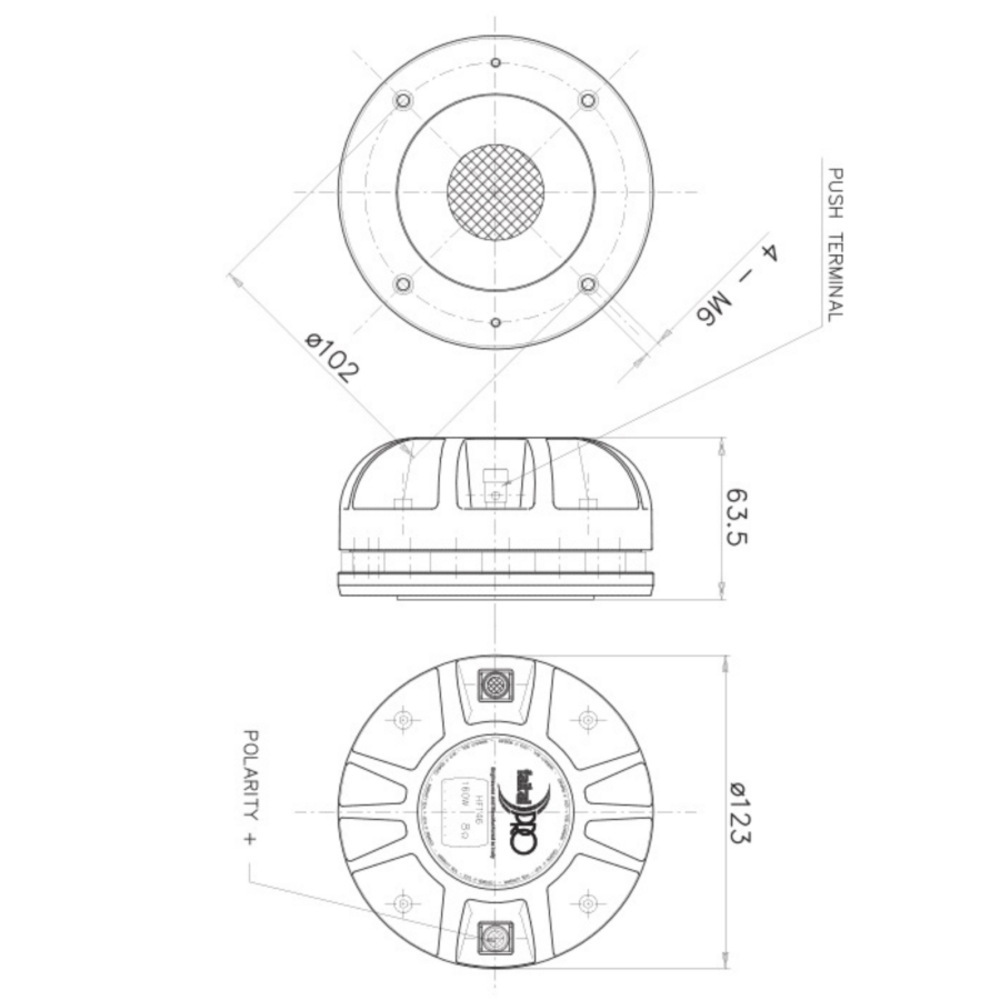

Mounting & dimensions:

• Throat Diameter 35.6 mm (1.4 in)
• Overall Diameter 123 mm (4.84 in)
• 90° Mounting Holes Diameter (4xM6) 102 mm (4.02 in)
• Depth 63.5 mm (2.5 in)
• Net Weight 2 Kg (4.4 lb)
• Shipping Box
• (Single carton box) 185 x 170 x 122 mm
• (7.3 x 6.7 x 4.8 in)
• Shipping Weight 2.3 Kg (5.1 lb)

Designed & manufactured in Italy and provided exclusively by Lean Business, this FaitalPRO compression driver comes complete with 2 years warranty.
