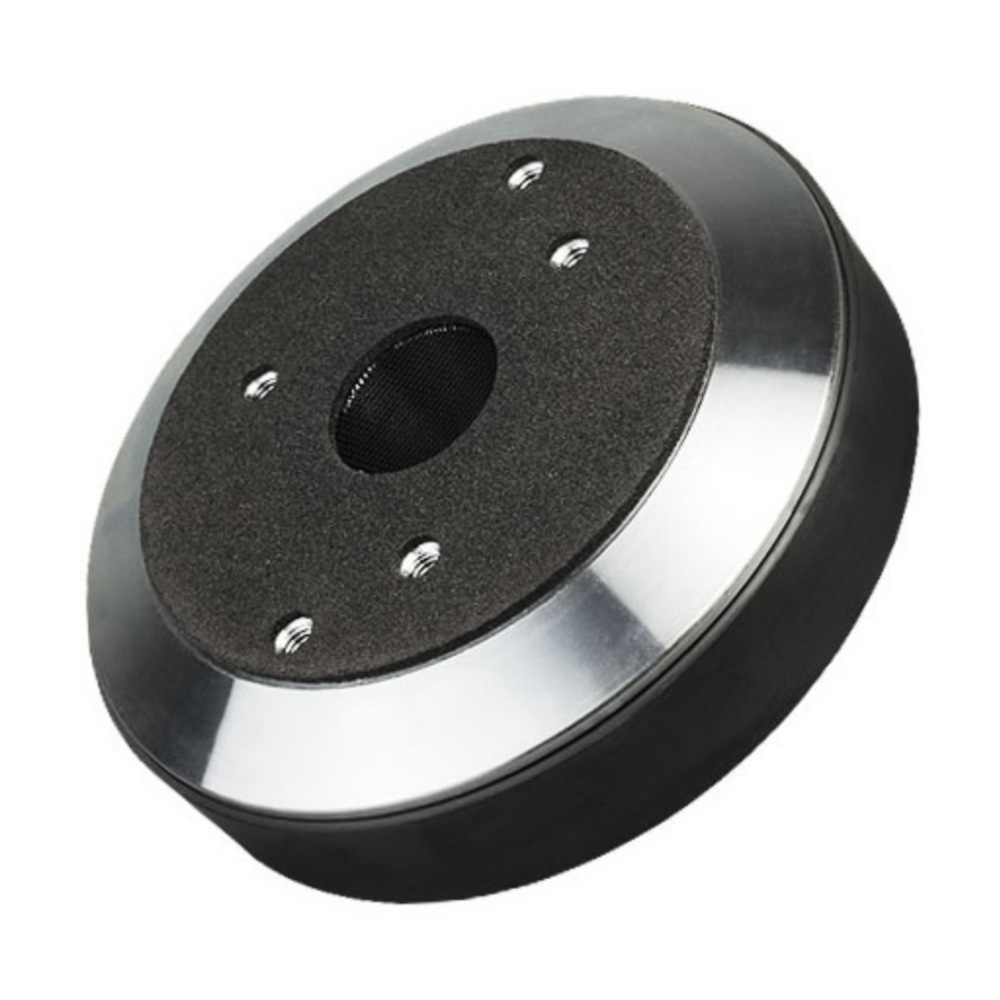

Faital Pro HF109 16ohm 1″ 60 watt Ferrite Compression Driver

Faital Pro HF109 16ohm 1″ 60 watt Ferrite Compression Driver

HF109 specifications:

• Nominal Impedance: 16 Ohm
• Minimum Impedance: 13.2 Ohm
• AES Power Handling: 60 W
• Maximum Power Handling: 120 W
• Minimum Crossover Frequency: 1.3 kHz
• Sensitivity (1W/1m): 108 dB
• Frequency Range: 1÷20 kHz
• Voice Coil Diameter: 44 mm (1.73 in)
• Winding Material: Al
• Former Material: Kapton
• Diaphragm Material: Ketone Polymer
• Diaphragm Shape: Dome
• Winding Depth: 2.9 mm (0.11 in)
• Magnetic Gap Depth: 2.85 mm (0.11 in)
• Flux Density: 1.8 T
• Magnet: Ferrite Ring
• Re: 10.5 Ohm
• Phase Plug Design: Annular
• Exit Angle: 13° Conical
• NET Air Volume filled by HF Driver: 0.43 dm^3 (0.015 ft^3)
• Nominal Specifications
• Throat Diameter: 25,4 mm (1 in)
• Overall Diameter: 121 mm (4.76 in)
• 180° Mounting Holes Diameter: (2xM6) 76 mm (2.99 in)
• Depth: 55 mm (2.17 in)
• Net Weight: 2.2 kg (4.9 lb)
• Shipping Box
• (Single carton box): 185 x 170 x 102 mm (7.3 x 6.7 x 4.0 in)
• Shipping Weight: 2.5 kg (5.5 lb)

Designed & manufactured in Italy and provided exclusively by Lean Business, this FaitalPRO compression driver comes complete with 2 years warranty.
