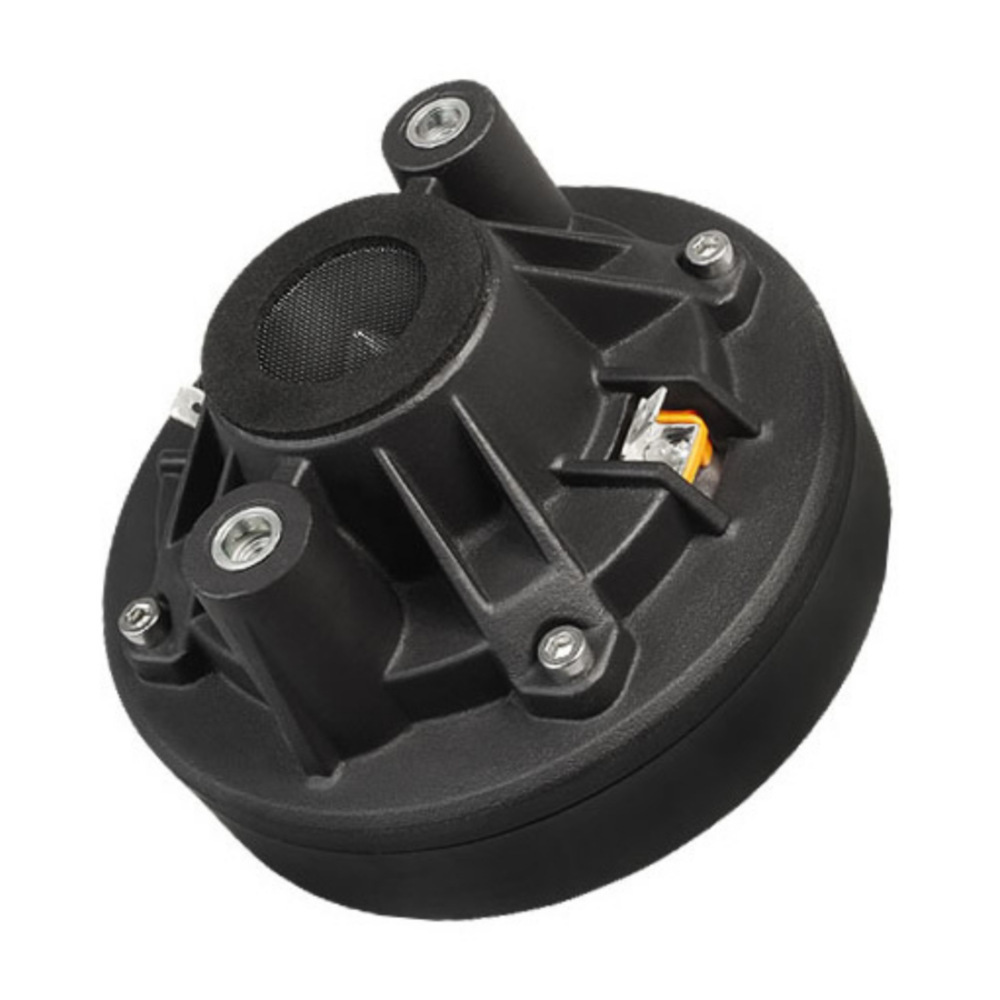

Faital Pro HF107 8ohm 1″ 70 watt Ferrite Compression Driver

Faital Pro HF107 8ohm 1″ 70 watt Ferrite Compression Driver

HF107 specifications:

• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.8 Ohm
• AES Power Handling: 70 W
• Maximum Power Handling: 140 W
• Minimum Crossover Frequency: 1.3 kHz
• Sensitivity (1W/1m): 109 dB
• Frequency Range: 1.3÷20 kHz
• Voice Coil Diameter: 44 mm (1.73 in)
• Winding Material: Al
• Former Material: Kapton
• Diaphragm Material: Ketone Polymer
• Diaphragm Shape: Annular
• Winding Depth: 2.3 mm (0.09 in)
• Magnetic Gap Depth: 2.6 mm (0.10 in)
• Flux Density: 1.9 T
• Magnet: Ferrite Ring
• Re: 5.4 Ohm
• Phase Plug Design: Annular
• Exit Angle: Combined Exit
• NET Air Volume filled by HF Driver: 0.5 dm^3 (0.018 ft^3)
• Nominal Specifications
• Throat Diameter: 25.4 mm (1 in)
• Overall Diameter: 121 mm (4.76 in)
• 180° Mounting Holes Diameter:  (2xM6) 76 mm (2.99 in)
• Depth: 75.4 mm (2.97 in)
• Net Weight: 2.5 kg (5.5 lb)
• Shipping Box
• (Single carton box): 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in)
• Shipping Weight: 2.7 kg (5.8 lb)
