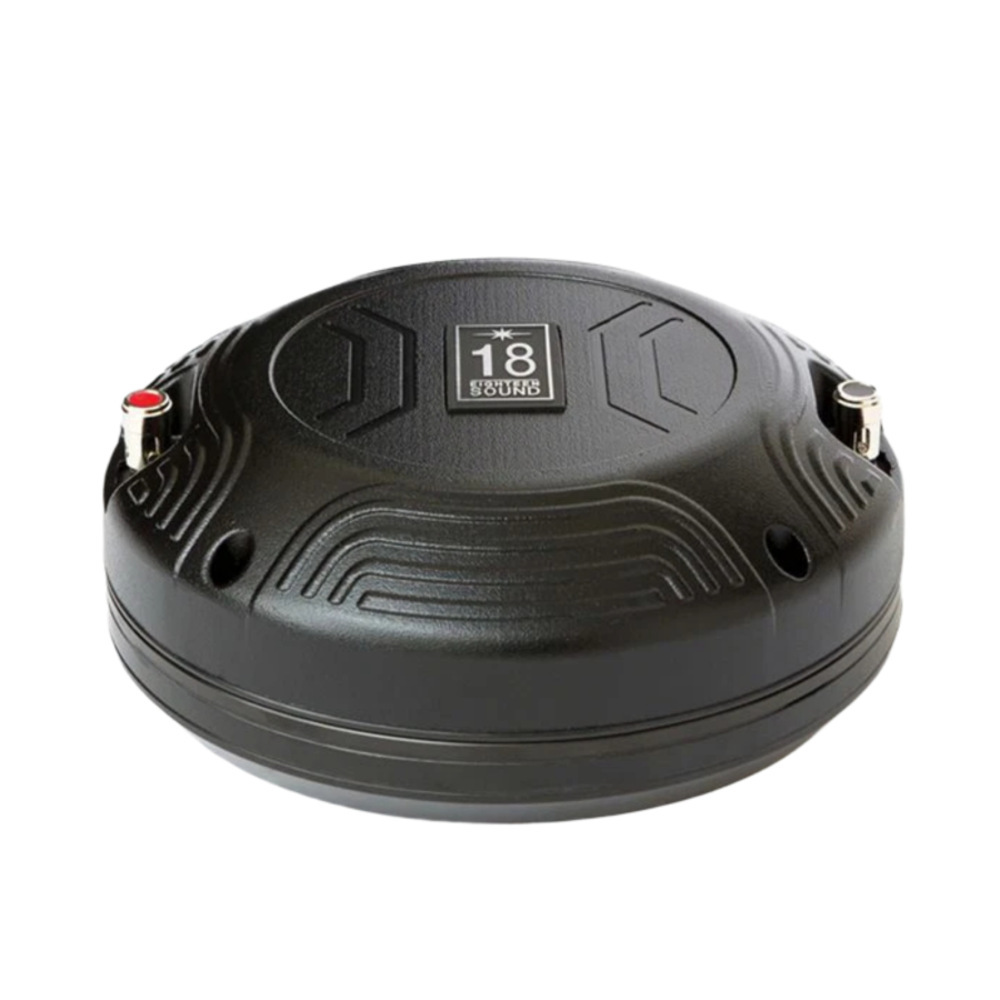

Eighteen Sound ND4014Ti2 8 Ohm 1.4″ 160W Compression Driver

Eighteen Sound ND4014Ti2 8 Ohm 1.4″ 160W Compression Driver

Product description:

Eighteen Sound ND4014Ti2 is a 1.5 inch exit neodymium compression driver designed for extremely high quality, high output sound system applications.
Featuring a four inch copper-clad aluminum voice-coil and dome, the pure titanium membrane with integral surround has been optimized for high sensitivity and efficiency and an extended high frequency region.
While maintaining a broad piston band and low distortion the results are maximum sound output with natural sound character and exceptional clarity up to the highest end of the frequency spectrum.

Key features:

• 113 dB 1W / 1m average sensitivity
• 1.5 inch throat exit
• 4 inch edgewound aluminium voice coil
• 320W max. program power handling
• HF copper sleeve for reduced distortion and increased output
• BEM optimized 4-slot metal alloy phase plug
• Available also in 1.4 and 2 exit version

ND4014Ti2 specifications:

• Throat Diameter: 38 mm (1,5 in)
• Rated Impedance: 8 Ohm
• DC Resistance: 4,7 Ohm
• Minimum Impedance: 6,9 Ohm at 5500 HzLe (at 1kHz)
• N/AContinuous Power: 160 W
• Maximum Program Power: 320 W
• Sensitivity: 113 dB
• Frequency Range: 800 Hz ÷ 20 kHz
• Minimum Xover Frequency: 800 Hz (24 dB/Oct High-Pass Filter)
• Diaphragm Material: Pure Titanium
• Voice Coil Diameter: 100 mm (4 in)
• Voice Coil Winding Material: Edge-wound CCAW
• Magnet Material: Neodymium

Mounting information:

• Overall diameter: 150 mm (5,9 in)
• N. of mounting holes and bolt: 4xM6 holes at 90° Ø 102 mm (4 in)
• Bolt circle diameter: 102 mm(4 in)
• Total depth: 57 mm (2,2 in)
• Net weight: 3.2 Kg (7,05 lb)
• Shipping weight: 3.6 Kg (7,94 lb)
• CardBoard Packaging dimensions: 170 x 170 x 80 mm (6,69 x 6,69 x 3,15 in)
