Eighteen Sound ND3ST 16 Ohm 1.4″ 120W Compression Driver

Eighteen Sound ND3ST 16 Ohm 1.4″ 120W Compression Driver

Key features:

• 1.4 inch exit Neodymium compression driver
• Very fast impulse response for excellent transient reproduction
• Natural Sound frequency response extended up to 20 kHz
• 240 W program power handling
• 112 dB 1W / 1mt sensitivity
• 75 mm (3 in) Edgewound CCAW voice coil
• Titanium diaphragm with proprietary suspension geometry
• Next gen 4-slot metal alloy phase plug design
• Copper sleeve for reduced distortion and reduced distortion and increased high end output

ND3S specifications:

• Throat Diameter: 36 mm (1.4 in)
• Nominal Impedance: 16 Ω
• Minimum Impedance: 10.6 Ω
• Nominal Power Handling: 120 W
• Continuous Power Handling:  240 W
• Sensitivity: 112.0 dB
• Frequency Range: 0.8 – 20.0 kHz
• Recommended Crossover: 1.2 kHz
• Voice Coil Diameter: 75 mm (3.0 in)
• Winding Material; Aluminum
• Diaphragm Material: Titanium
• Flux Density: 2.1 T
• Magnet Material: Neodymium

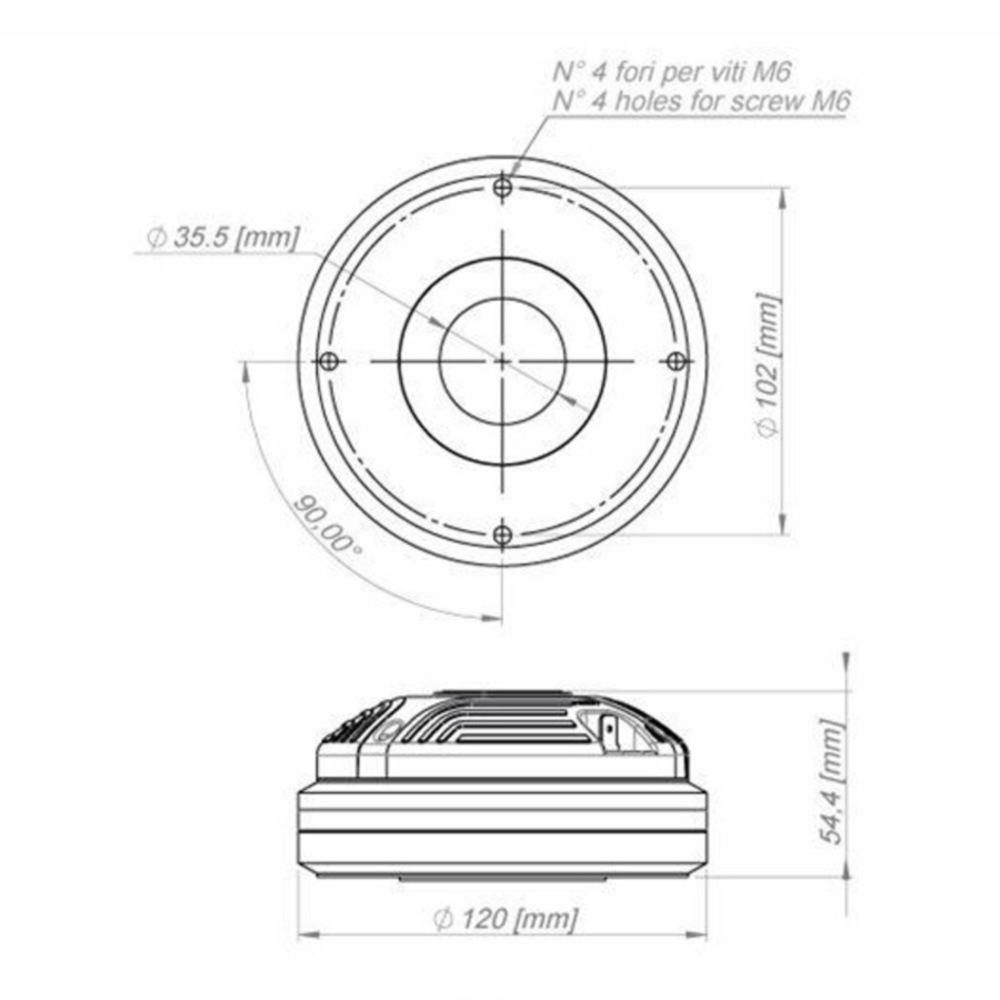

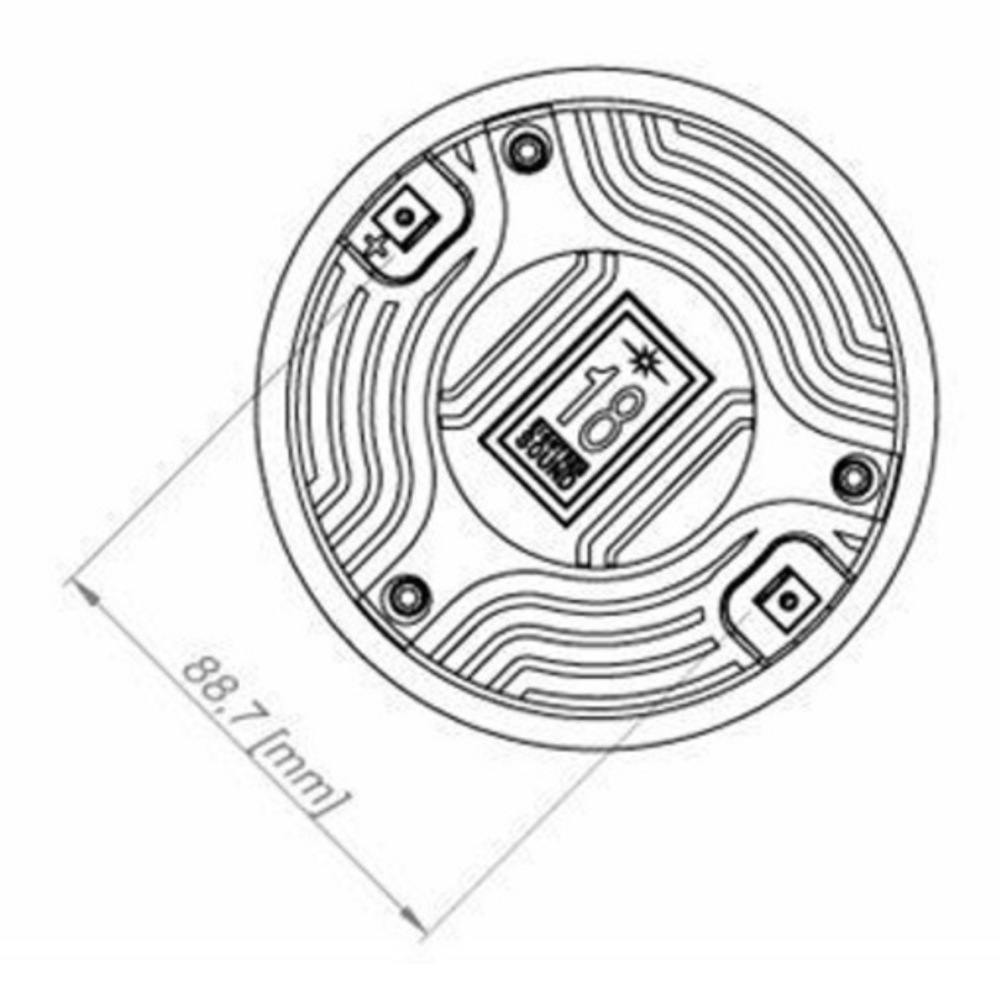

Mounting and Shipping Info:

• Overall Diameter: 120 mm (4.72 in)
• Depth :53 mm (2.09 in)
• Net Weight: 2.3 kg (5.07 lb)
• Shipping Box: 165x150x65 mm (6.50×5.91×2.5 6 in)
