Eighteen Sound ND3G 8 Ohm 1.4″ 110W GLASS Compression Driver
£288.50
• Glass PEN composite diaphragm assembly
• Ultra compact design (OD 109mm – 4.3 in)
• 112 dB SPL 1W-1m average sensitivity
• 1.4 inch exit throat
• 220W maximum program power handling
• frequency response extended up to 20 kHz

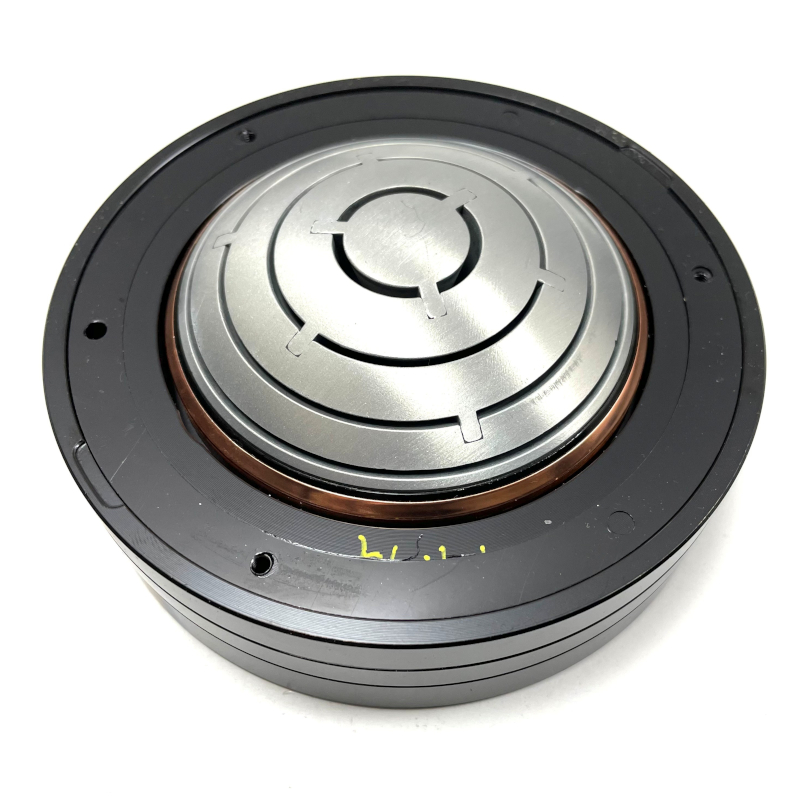

• Next-gen 4-slot metal alloy phase plug
• Edge-wound 75mm (3 in) CCAW voice coil
• Neodymium ring magnetic structure
• Copper ring for reduced distortion and increased output
• Self-centering d-kit for accurate and fast service
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands.
Available on back-order
Email when stock available

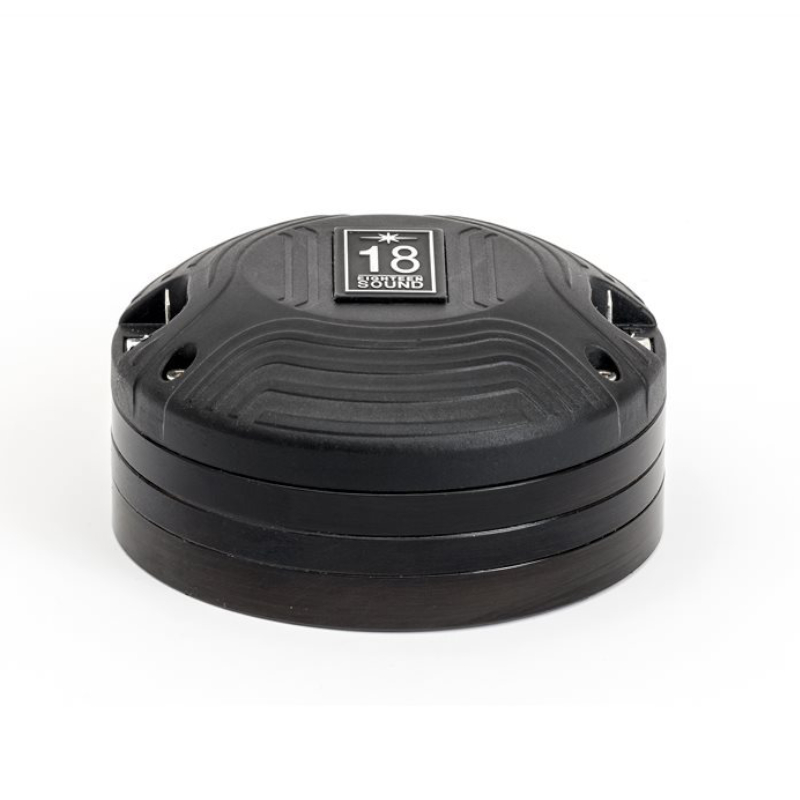

Eighteen Sound ND3G 8 Ohm 1.4″ 110W GLASS Compression Driver

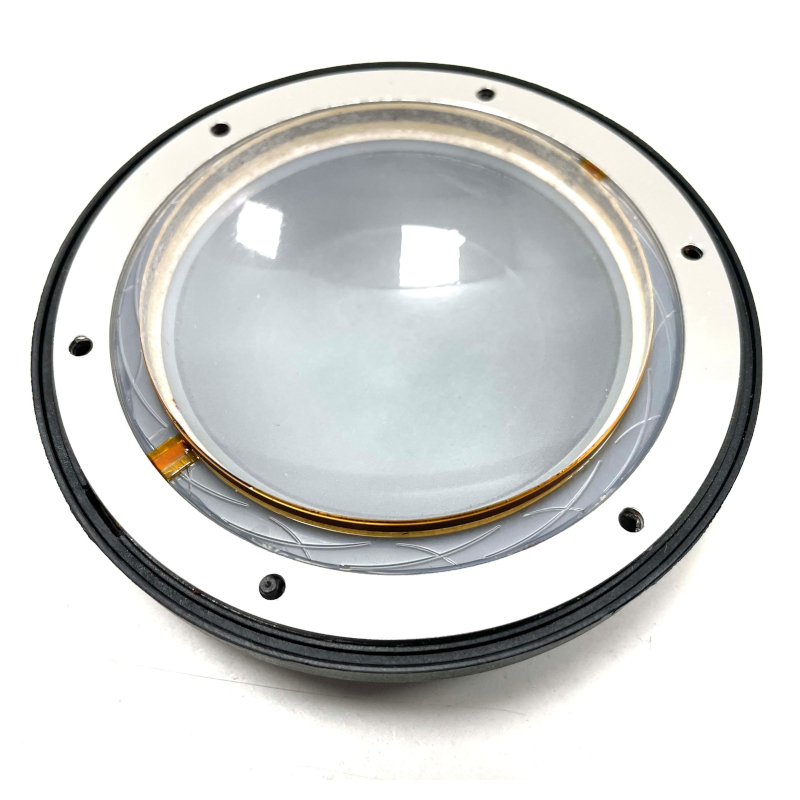

The 18 Sound ND3G 1.4‑inch neodymium compression driver uses a Glass‑and‑PEN composite diaphragm for fast transient response and reduced high‑frequency resonance.
A 75 mm edge‑wound aluminum coil on a treated Nomex former improves linearity, durability, and moisture resistance.
Its self‑centering diaphragm simplifies servicing.
The compact neodymium motor delivers a 20 KGauss gap, while a precision alloy phase plug and copper ring lower inductance and distortion.
Eighteen Sound applies a corrosion‑resistant treatment to the magnet and plates for long‑term reliability in harsh environments.
| SPECIFICATIONS | |
| Throat Diameter | 36 mm (1.4 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.9 Ω |
| Nominal Power Handling | 110 W |
| Continuous Power Handling | 220 W |
| Sensitivity | 112.0 dB |

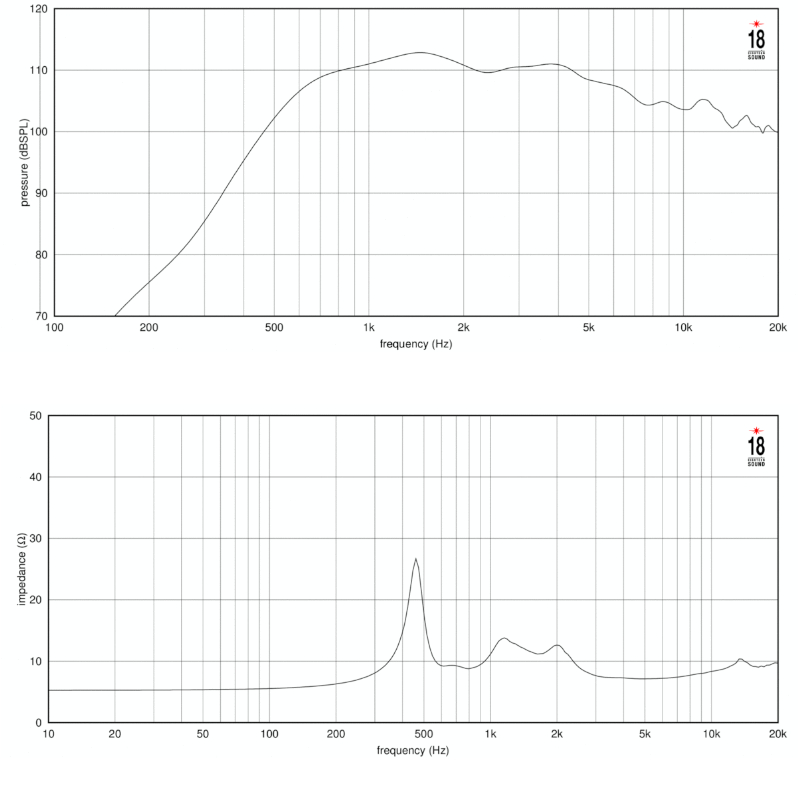

| Frequency Range | 0.8 – 20.0 kHz |
| Recommended Crossover | 1.2 kHz |
| Voice Coil Diameter | 75 mm (3.0 in) |
| Winding Material | Aluminum |
| Diaphragm Material | Glass |
| Flux Density | 2.0 T |
| Magnet Material | Neodymium |

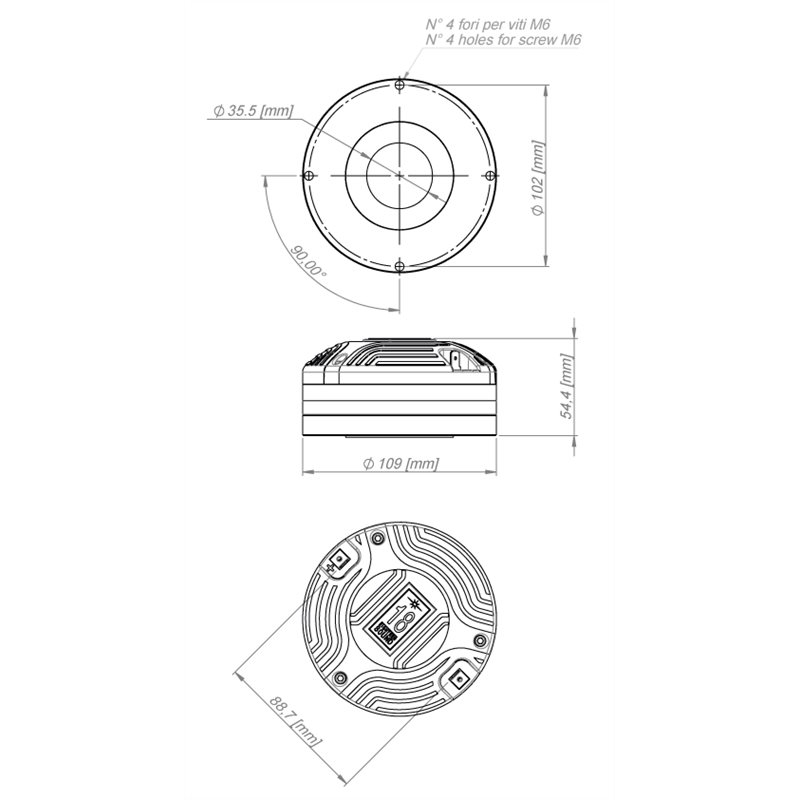

| MOUNTING AND SHIPPING INFO | |
| Overall Diameter | 09 mm (4.29 in) |
| Depth | 53 mm (2.09 in) |
| Net Weight | 1.65 kg (3.64 lb) |
| Shipping Box | 165x150x65 mm (6.50×5.91×2.56 in) |
Why Choose Lean Business Audio?
50 years of experience of designing, building and supplying Home, Car and Professional Audio.
Huge stocks of leading loudspeakers and audio brands
KEF, Celestion, Eminence, WGS, Montage, BMS Speakers, Faital Pro, Eighteen Sound, Ciare
Low Worldwide shipping rates.
Free Delivery on selected brands with the UK.
Price matching.
For more information please contact us at: +44(0)1473 744089
Or Email us at: sales@lean-business.co.uk
| Weight | 3 kg |
|---|---|
| Brand | Eighteen Sound |
| Size | 1.4" |
| Magnet type | Neodymium |
