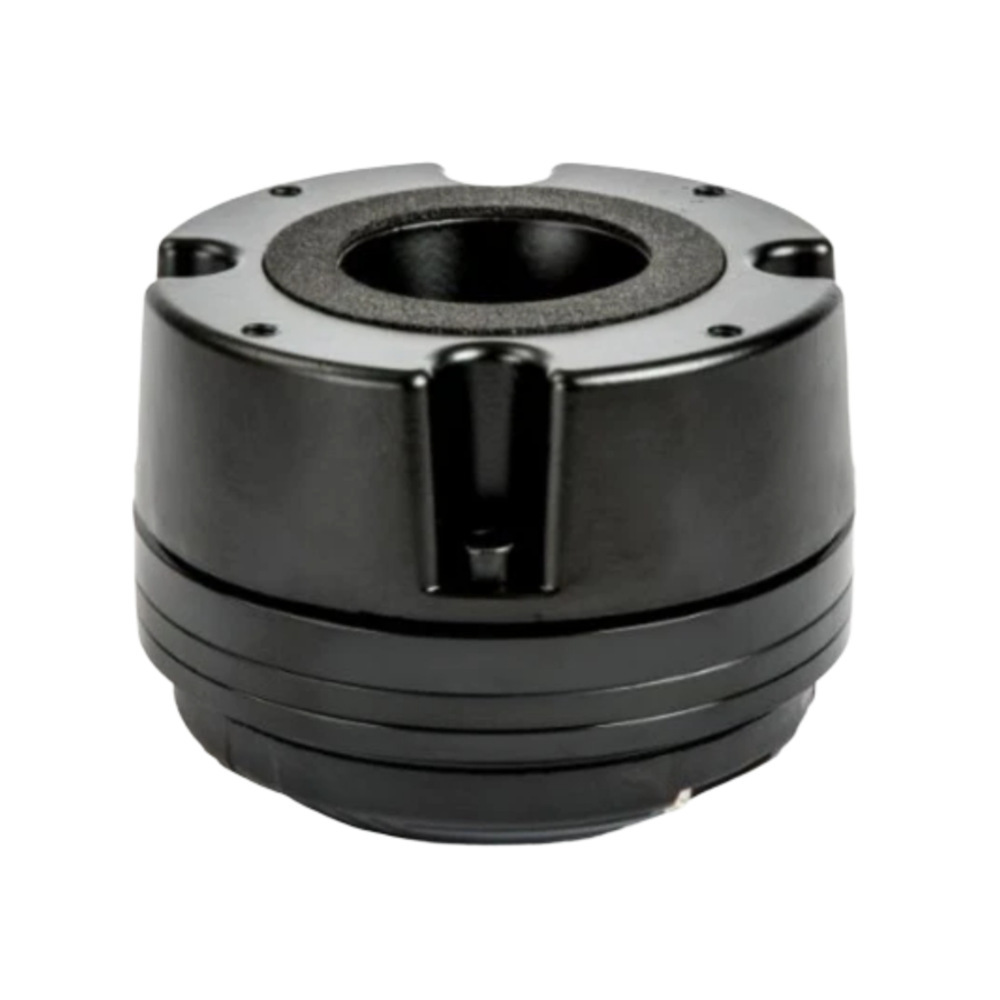

Eighteen Sound ND32ST 8 Ohm 2″ 120W Compression Driver

Eighteen Sound ND32ST 8 Ohm 2″ 120W Compression Driver

Key features:

• 2 inch exit Neodymium compression driver
• Very fast impulse response for excellent transient reproduction
• Natural Sound frequency response extended up to 20 kHz
• 240 W program power handling
• 112 dB 1W / 1mt sensitivity
• 75 mm (3 in) Edgewound CCAW voice coil
• Titanium diaphragm with proprietary suspension geometry
• Next gen 4-slot metal alloy phase plug design
• Copper sleeve for reduced distortion and increased high end output

 ND32ST specifications:

• Throat Diameter: 50 mm (2.0 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.4 Ω
• Nominal Power Handling: 120 W
• Continuous Power Handling: 240 W
• Sensitivity: 112.0 dB
• Frequency Range: 0.8 – 20.0 kHz
• Recommended Crossover: 1.2 kHz
• Voice Coil Diameter: 75 mm (3.0 in)
• Winding Material: Aluminum
• Diaphragm Material: Titanium
• Flux Density: 2.1 T
• Magnet Material: Neodymium

Mounting and Shipping Info:

• Overall Diameter: 120 mm (4.72 in)
• Depth: 53 mm (2.09 in)
• Net Weight: 2.8 kg (6.17 lb)
• Shipping Weight: 2.9 kg (6.39 lb)
• Shipping Box: 165x150x65 mm (6.50×5.91×2.5 6 in)

Designed & manufactured in Italy and provided exclusively on-line by Lean Business, this Eighteen Sound compression driver comes complete with 2 years warranty.
