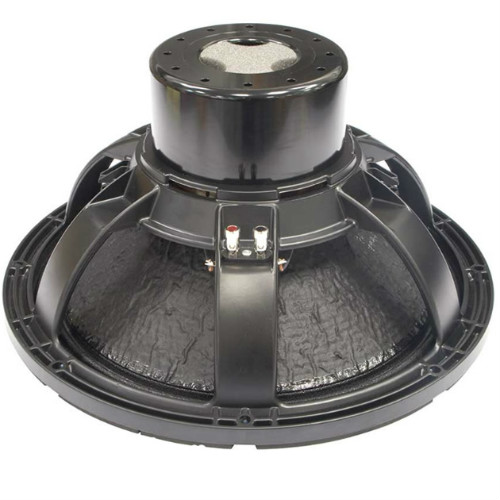

Eighteen Sound 18NLW9601 4 Ohm 18″ 1800W Loudspeaker

Eighteen Sound 18NLW9601 4 Ohm 18″ 1800W Loudspeaker

General Specifications:

• Nominal Diameter 18”, 462 mm
• Rated Impedance 4Ω
• AES Power 1800 W (rms)
• Program Power 3600 W (rms)
• Peak Power 10000 W (rms)
• Sensitivity 97 dB
• Frequency Range 30 – 2500 Hz
• Power Compression @-10 dB 0,7 dB
• Power Compression @-3 dB 1,5 dB
• Power Compression @Full Power 2,2 dB
• Max Recomm. Frequency 300 Hz
• Recomm. Enclosure Volume 3,88 ÷ 12,36 cuft, 110 ÷ 350 lt.
• Minimum Impedance 7,6Ω at 25°C
• Max Peak To Peak Excursion 2.75”, 70 mm
• Voice Coil Diameter 5.3”, 135 mm
• Voice Coil Height 1.26”, 32 mm
• Voice Coil Technology split winding, 4 layers copper clad Al wire
• Gap Depth 0.47”,12 mm
• Suspension Triple Roll Treated Polycotton
• Cone Straight ribbed carbon fiber loaded cellulose

Mounting Information:

• Overall Diameter 18.18”, 462 mm
• N. of Mounting Holes and Bolt 8 Mounting Holes Diameter 0.33”, 8,5 mm
• Bolt circle diameter 17.32”, 440 mm
• Front Mount Baffle Cutout ø 16.38”, 416 mm
• Rear mount baffle cutout ø 16.61”, 422 mm
• Total depth 9.29”, 236 mm
• Flange and gasket thickness 1.02”, 26 mm
• Net weight 27.6 lb, 12,5 kg
• Shipping weight 30.9 lb ,14 kg
• CardBoard packaging dimensions 19x19x10,1” , 482x482x257 mm

Thiele Small Informations:

• Fs 34 Hz
• Re 4,7Ω
• Sd 175.15” sq., 0,113 sq.mt.
• Qms 5
• Qes 0,28
• Qts 0,28
• Vas 5,8 cuft, 164 lt.
• Mms 0.6 lb, 270 gr.
• BL 30 Tm
• Linear Mathematical Xmax ±0,55”, ±14 mm
• Le (1 kHz) 2,10 mH
• Ref. Efficiency 1W @ 1m (half space) 94,6 dB

Key Features:

• 97 dB SPL 1W / 1m average sensitivity.
• 5.3”, 135 mm split winding four layers ISV aluminum voice coil.
• 3600 W (rms) program power handling.
• Carbon fiber reinforced cellulose cone.
• Double Silicon Spider (DSS) for improved excursion control.
• Aluminium demodulating ring (SDR) for lower distortion.
• High force neodymium magnet assembly.
• Weather protected cone and plates for outdoor usage.
• Suitable for reflex, bandpass or horn loaded high SPL subwoofer systems.

Designed & manufactured in Italy and provided exclusively by Lean Business, this Eighteen Sound speaker comes complete with 2 years warranty.
