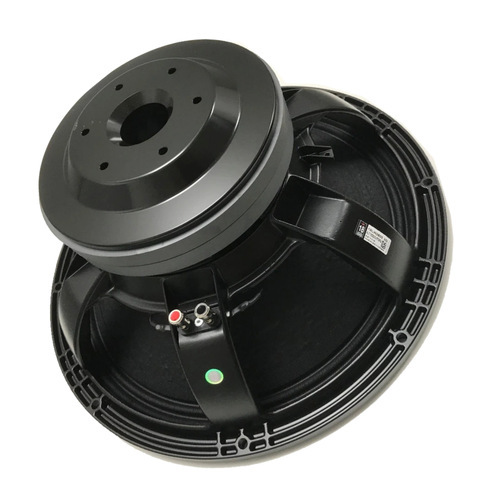

Eighteen Sound 18LW2600 “THE BEAST” 18″ 8ohm 1500 Watt Extended LF Ferrite speaker

Eighteen Sound 18LW2600 “THE BEAST” 18″ 8ohm 1500 Watt Extended LF Ferrite speaker

Key features:

• 97 dB SPL 1W / 1m average sensitivity
• 100 mm (4 in) Interleaved Sandwich Voice coil (ISV)
• 3000W program power handling
• 70 mm (2,76 in) peak to peak excursion
• Ultra linear dual magnet motor design
• Composite reinforced straight ribbed cone
• Optimized high grade ferrite magnet assembly
• Recommended for subwoofer usage in compact vented or bandpass enclosures
• Superb in Scoop designs

18LW2600 specifications:

• Nominal Diameter: 462 mm (18 in)
• Rated Impedance: 8 Ohm
• AES Power: 1500 W
• Program Power: 3000 W
• Sensitivity: 95 dB
• Frequency Range: 30 Hz – 800 Hz
• Max Peak To Peak Excursion: 60 mm
• Voice Coil Diameter: 100 mm (4 in)
• Voice Coil winding material: Copper wire
• Suspension: Triple roll, Heavy Polycotton
• Cone: Curved ribbed fiber loaded cellulose

Thiele Small Parameters:

• Fs 31 Hz
• Re 4.9 Ohm
• Sd 1225.0 sq.m (189,15 sq.in)
• Qms 11.7
• Qes 0.3
• Qts 0.29
• Vas 187.0
• Mms 303.0 g
• BI 31.0
• Le 3.42 mH

Mounting information:

• Overall diameter: 462 mm (18,18 in)
• N. of mounting holes: 8
• Mounting holes diameter: 8,5 mm (0,33 in)
• Bolt circle diameter: 440 mm (17,32 in)
• Front mount baffle cutout: ø 416 mm (16,38 in)
• Rear mount baffle cutout: ø 422 mm (16,61 in)
• Total depth: 231 mm (9,.09 in)
• Flange and gasket thickness: 23 mm (1,02 in)
• Net weight: 16.1 kg (36,8 lb)
• Shipping weight: 16.5 kg (35.49 lb)
