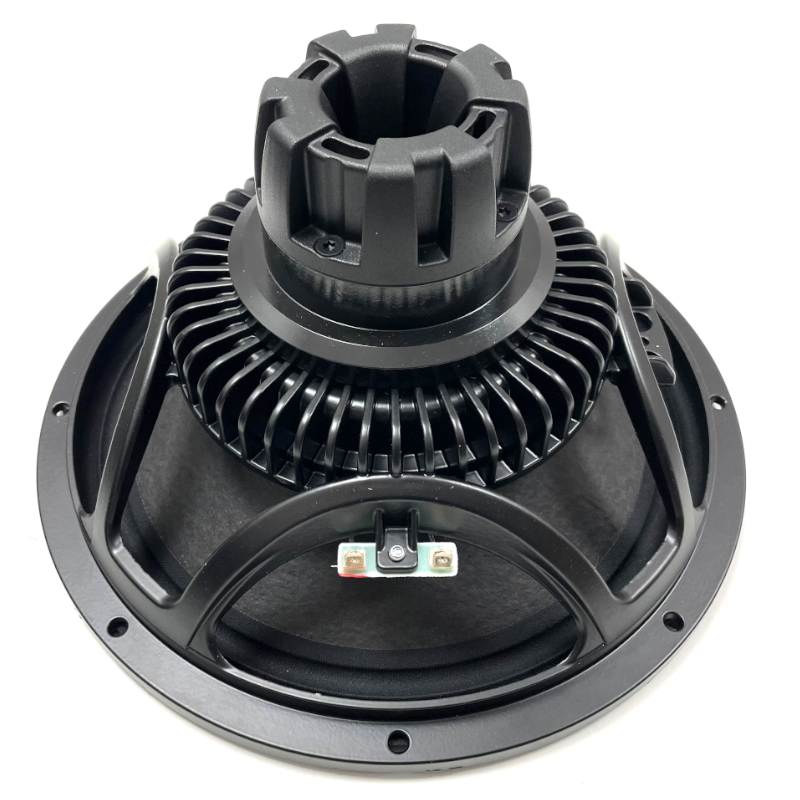

Eighteen Sound 12NTLW2500 8 Ohm 12″ 500W Loudspeaker
£204.35
98.5 dB SPL 1W / 1m average sensitivity
64 mm (2.5 in) Dual voice coil
500 W AES power handling
Extremely balanced BL shape for maximum SPL
Optimized thermal conductivity
Maximum linearity and inductance symmetry for extended mid-band clarity
Ideal for two-ways and line array applications
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands.
In stock (can be backordered)
Eighteen Sound 12NTLW2500 8 Ohm 12″ 500W Loudspeaker
| SPECIFICATIONS | |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 5.5 Ω |
| Nominal Power Handling | 500 W |
| Continuous Power Handling | 1000 W |
| Sensitivity | 98.5 dB |
| Frequency Range | 55 – 4500 Hz |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Winding Depth | 19.7 mm (0.78 in) |
| Magnetic Gap Depth | 9.0 mm (0.35 in) |
| PARAMETERS | |
| Resonance Frequency | 60 Hz |
| Re | 5.0 Ω |
| Qes | 0.39 |
| Qms | 8.4 |
| Qts | 0.38 |
| Vas | 45.0 dm3 (1.59 ft |
| Sd | 531.0 cm2 (82.31 in |
| η₀ | 2.40% |
| Xmax | 7.6 mm |
| Xvar | 8.0 mm |
| Mms | 62.0 g |
| Bl | 17.4 Txm |
| Le | 0.44 mH |
| EBP | 153 Hz |
| DESIGN | |
| Surround Shape | M-roll |
| Cone Shape | Curvilinear |
| Magnet Material | Neo |
| Woofer Cone Treatment | Weather protected |
| Recommended Enclosure | 35.0 dm3 (1.24 ft |
| Recommended Tuning | 65 Hz |
| MOUNTING AND SHIPPING INFO | |
| Overall Diameter | 310 mm (12.2 in) |
| Bolt Circle Diameter | 295 mm (11.61 in) |
| Baffle Cutout Diameter | 283.0 mm (11.14 in) |
| Depth | 175 mm (6.89 in) |
| Depth Flange and Gasket Thickness | 13 mm (0.51 in) |
| Net Weight | 3.6 kg (7.94 lb) |
Designed & manufactured in Italy and provided exclusively by Lean Business, this Eighteen Sound speaker comes complete with 2 years warranty.
Why Choose Lean Business Audio?
50 years of experience of designing, building and supplying Home, Car and Professional Audio.
Huge stocks of leading loudspeakers and audio brands
KEF, Celestion, Eminence, WGS, Montage, BMS Speakers, Faital Pro, Eighteen Sound, Ciare
Low Worldwide shipping rates.
Free Delivery on selected brands with the UK.
Price matching.
For more information please contact us at: +44(0)1473 744089
Or Email us at: sales@lean-business.co.uk
| Weight | 8 kg |
|---|---|
| Brand | Eighteen Sound |
| Size | 12" |
| Magnet type | Neodymium |
