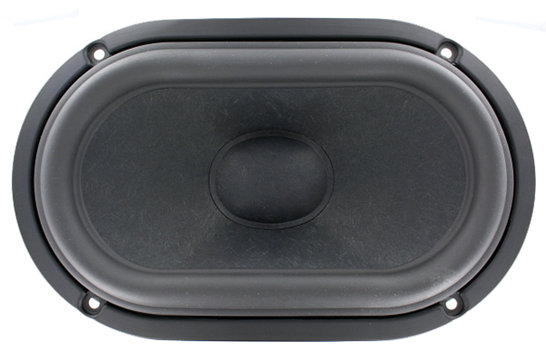

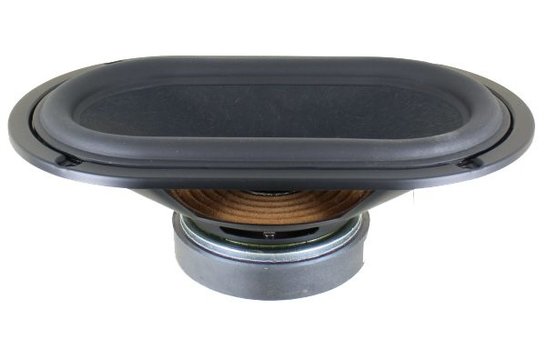

SB ACOUSTICS SB15SFCR39-8 5×8” 8ohm Ferrite Racetrack SFCR Midwoofer Loudspeaker

SB ACOUSTICS SB15SFCR39-8 5×8” 8ohm Ferrite Racetrack SFCR Midwoofer Loudspeaker

Product Description:

SB Acoustics SB15SFCR39-8 5×8″ Paper Cone Midwoofer.
Racetrack design. Hard paper cone (made in-house). Optimized motor system.
Non-conductive reinforced vented coil former. Symmetric suspension.
Low damping rubber surround. Long-life silver lead wires. Vented chassis

Key Features:

• Racetrack design
• Hard paper cone (made in-house)
• Optimized motor system
• Non-conductive reinforced vented coil former
• Symmetric suspension
• Low damping rubber surround
• Long life silver lead wires
• Vented chassis

SB15SFCR39-8 Specifications:

• Woofer Type: Midwoofer
• Nominal Diameter: 5×8″
• Power Handling (RMS): 50 W
• Impedance (Z): 8 Ohms
• Sensitivity: 87 dB (2,83V; 1m)
• Voice Coil Diameter: 38,5 mm
• DC Resistance (Re): 6,2 Ohm
• Voice Coil Inductance (Le): 1,3 mH
• Resonant Frequency (Fs): 32 Hz
• Mechanical Q (Qms): 7.11
• Electromagnetic Q (Qes): 0.45
• Total Q (Qts): 0.42
• Diaphragm Mass Inc. Airload (Mms): 23 g
• Surface Area of Cone (Sd): 178 cm2
• BL Product (BL): 8,0 N/A
• Compliance Equivalent Volume (Vas): 48,3 l
• Overall Outside Diameter: 219,3 x 120,6 mm
