Faital Pro W8N8-150 16ohm 8″ 150 watt Neo Speaker

Faital Pro W8N8-150 16ohm 8″ 150 watt Neo Speaker

W8N8-150 specifications:

• Nominal Impedance: 16 Ohm
• Minimum Impedance: 12.7 Ohm
• AES Power Handling: 150 W
• Maximum Power Handling: 300 W
• Sensitivity (1W/1m): 93 dB
• Frequency Range: 80÷6300 Hz
• Voice Coil Diameter: 52 mm (2 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 13.7 mm (0.54 in)
• Magnetic Gap Depth: 8 mm (0.31 in)
• Flux Density; 1 T
• Magnet: Neodymium Slug
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround: M-Roll
• NET Air Volume filled by Loudspeaker: 1 dm^3 (0.035 ft^3)
• Spider Profile: 1x variable height waves

Thiele and small parameters

• Fs: 76 Hz
• Re: 11.8 Ohm
• Qes: 0.88
• Qms: 19.5
• Qts: 0.84
• Vas: 12.7 dm^3 (0.45 ft^3)
• Sd: 222 cm^2 (34.41 in^2)
• Xmax: 5.52 mm
• Xdamage: 12 mm
• Mms: 23.8 g
• Bl: 12.3 N/A
• Le: 0.9 mH
• Mmd: 20.1 g
• Cms: 0.18 mm/N
• Rms: 0.6 kg/s
• Eta Zero: 0.61 %
• EBP: 86 Hz

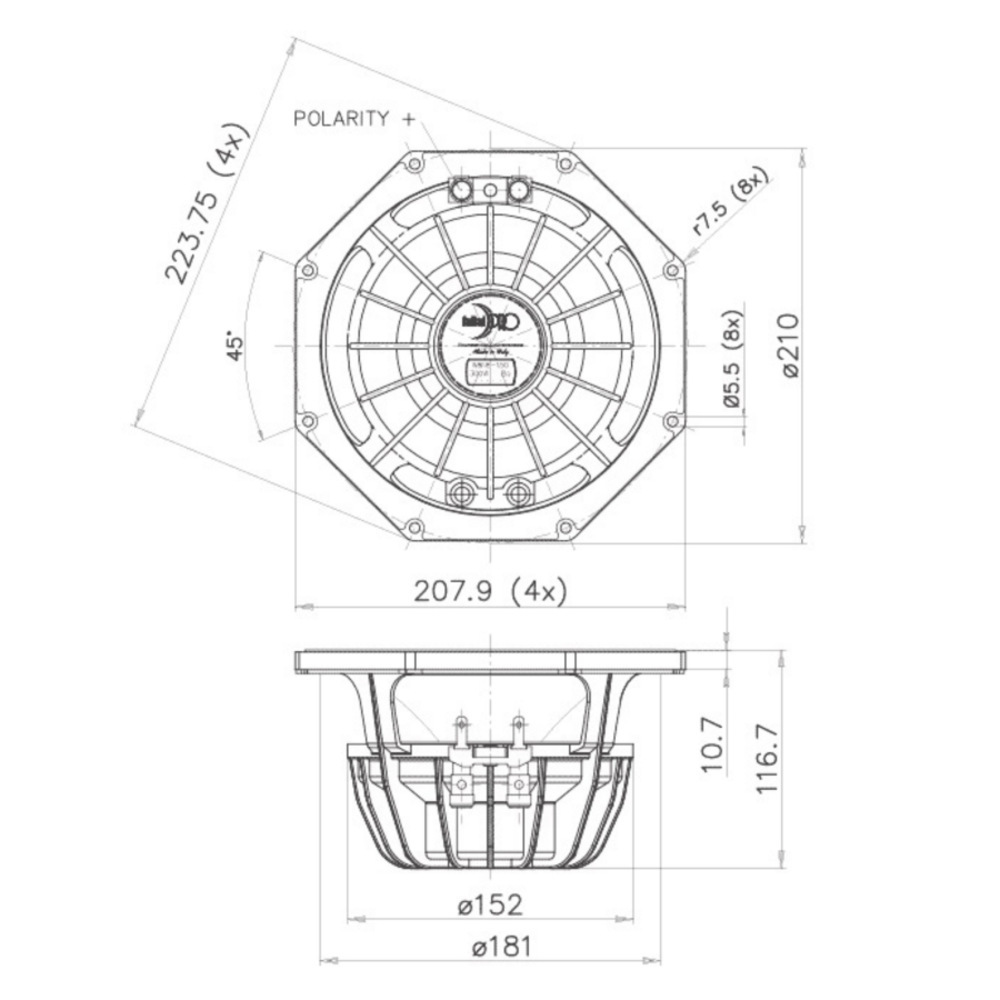

Dimensions:

• Nominal Specifications
• Nominal Diameter:200 mm (8 in)
• Overall Diameter: 223.75/207.9 mm (8.81/8.18 in)
• Bolt Circle Diameter: 210 mm (8.27 in)
• Baffle Cutout Diameter: 183 mm (7.20 in)
• Depth: 116.7 mm (4.59 in)
• Flange and Gasket Thickness: 10.7 mm (0.42 in)
• Net Weight: 1.7 kg (3.7 lb)
