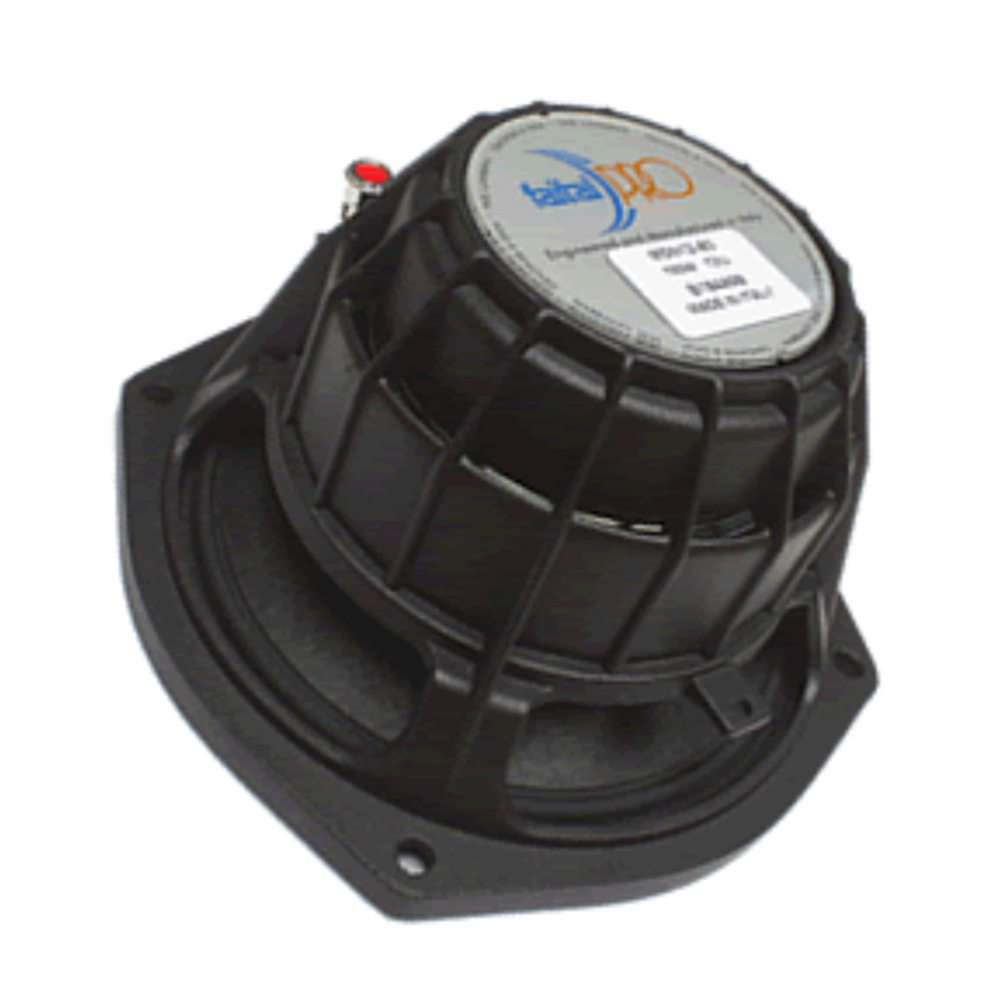

Faital Pro M5N12 12ohm 80 5″ 80 watt Neo Speaker

Faital Pro M5N12 12ohm 80 5″ 80 watt Neo Speaker

Product description:

From the FaitalPRO Professional Series, the M5N12-80 is designed for heavy-duty professional audio line-array applications – offering premium sound quality and value.
The Lange Loudspeaker’s small L205 line array unit contains the brand new FaitalPRO M5N12-80 driver because of the M5’s efficiency is extremely high and the diaphragm area is notable, around 25% more than the 5″ previously used.
The M5N12-80 makes a very impressive and responsive mid range driver in a bass guitar cabinets

Product specifications:

• Nominal Basket Diameter:5″ / 130mm
• Impedance: 12 ohms
• AES Power Rating: 80 Watts
• Program Power: 160 Watts
• Frequency Response: 180Hz – 6.3kHz
• Sensitivity (1W/1m): 99dB SPL
• Voice Coil Diameter: 1.26″ / 32mm
• Voice Coil Length: 7.5 mm
• Air Gap Height; 6.0 mm
• X Damage (peak to peak): 15.2 mm
• BL Factor: 11.3 N/A

Mounting Information:

• Overall Diameter: 6.02″/5.51″ / 153mm/140mm
• Bolt Circle Diameter: 5.5″ / 139mm
• Baffle Cutout Diameter-Front Mount: 5.0″ / 127mm
• No. Of Mounting Holes: 4
• Overall Depth: 3.1″ /79mm
• Flange & gasket Thickness: 0.29″ / 7.5mm
• Net Weight: 2.1 lb. / .09 kg.
• Shipping Weight: 2.4 lb. / 1.1 kg.

Materials:

• Basket: Cast Aluminum
• Cone: Paper Pulp (Weather Proof)
• Surround: Treated Cloth
• Former Material: Glass Fiber
• Voice Coil: Copper
• Magnet: Neodymium

Thiele-Small Parameters:

• Resonant Frequency (fs): 180 Hz
• Impedance (Re): 8.8 ohms
• Coil Inductance (Le): 0.15 mH
• Mechanical Q (Qms): 2.7
• Electrical Factor (Qes): .54
• Total Q (Qts): .45
• Comp. Equivelant Vol. (Vas): 0.04 ft3 / 1.2 Liters
• Voice Coil Overhang (Xmax): 2.75 mm
• Surface Area of Cone (Sd)m2: 0.0146m2
• Reference Efficiency: 1.29%
• Diaphragm Mass (Mms): 7.5 Grams
• Mechanical Compliance (Cms): .09 mm/N
• Mechanical Resistance (Rms): 3.45 Kg/s

Designed & manufactured in Italy and provided exclusively by Lean Business, this FaitalPRO speaker comes complete with 2 years warranty.
