Faital Pro HF148 16ohm 1.4″ 100 watt Neo Compression Driver

Faital Pro HF148 16ohm 1.4″ 100 watt Neo Compression Driver

HF148 specifications:

• Nominal Impedance: 16 Ohm
• Minimum Impedance: 10.1 Ohm
• AES Power above 0.9 kHz: 100 W
• AES Power above: 0.65 kHz 50 W
• Maximum Power above: 0.9 kHz 200 W
• Maximum Power above: 0.65 kHz 100 W
• Minimum Crossover Frequency: 0.9 kHz
• Sensitivity (1W/1m): 109 dB
• Frequency Range: 0.5÷18 kHz
• Voice Coil Diameter: 74 mm (2.91 in)
• Winding Material: Al
• Former Material: Kapton
• Diaphragm Material: Titanium
• Diaphragm Shape: Dome
• Winding Depth: 2.7 mm (0.11 in)
• Magnetic Gap Depth: 3.2 mm (0.13 in)
• Flux Density: 1.75 T
• Magnet: Neodymium RIng
• Re: 8.2 Ohm
• Phase Plug Design: Annular
• Exit Angle: 12° Conical
• NET Air Volume filled by HF Driver: 0.45 dm^3 (0.016 ft^3)

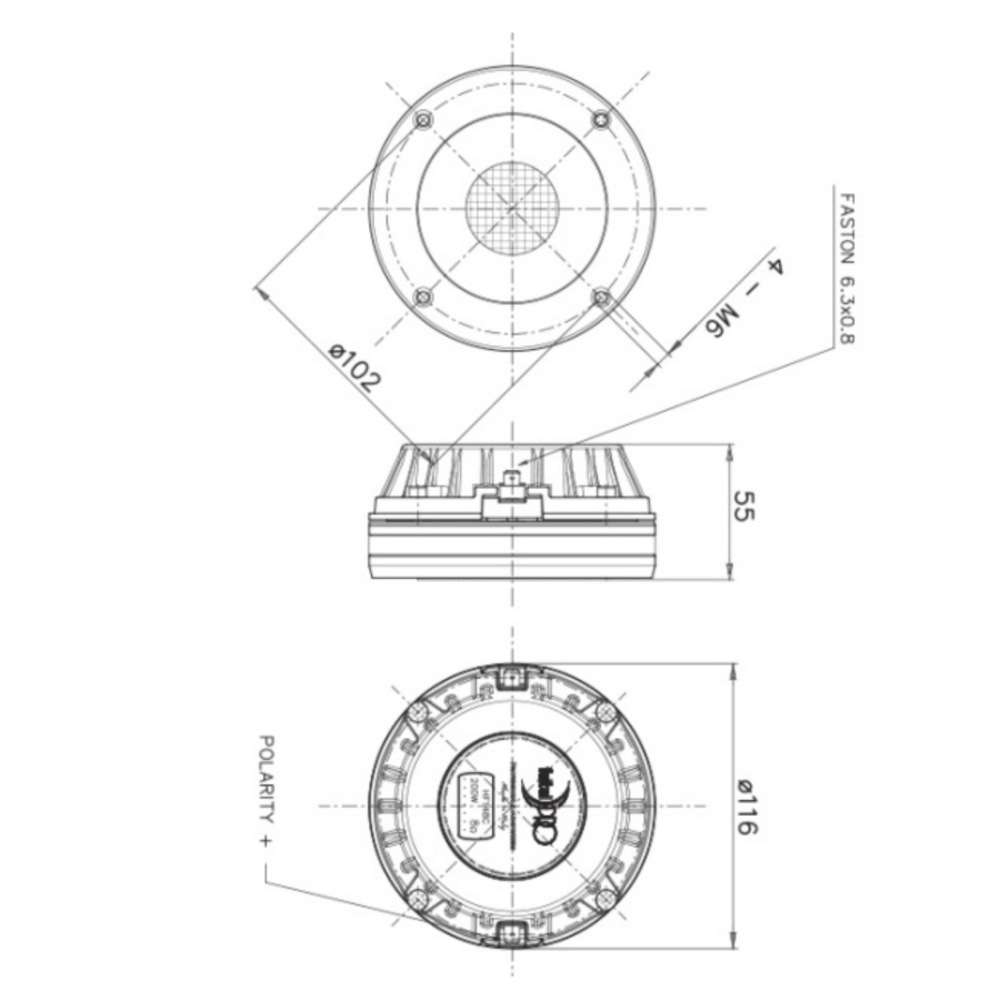

Nominal Specifications:

• Throat Diameter: 35.6 mm (1.4 in)
• Overall Diameter: 125 mm (4.92 in)
• 90° Mounting Holes Diameter: (4xM6) 102 mm (4.02 in)
• Depth: 55 mm (2.17 in)
• Net Weight: 2.32 kg (5.1 lb)
• Shipping Box: 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in)
  Shipping Weight: 2.6 kg (5.7 lb)

Designed & manufactured in Italy and provided exclusively by Lean Business, this FaitalPRO compression driver comes complete with 2 years warranty.
