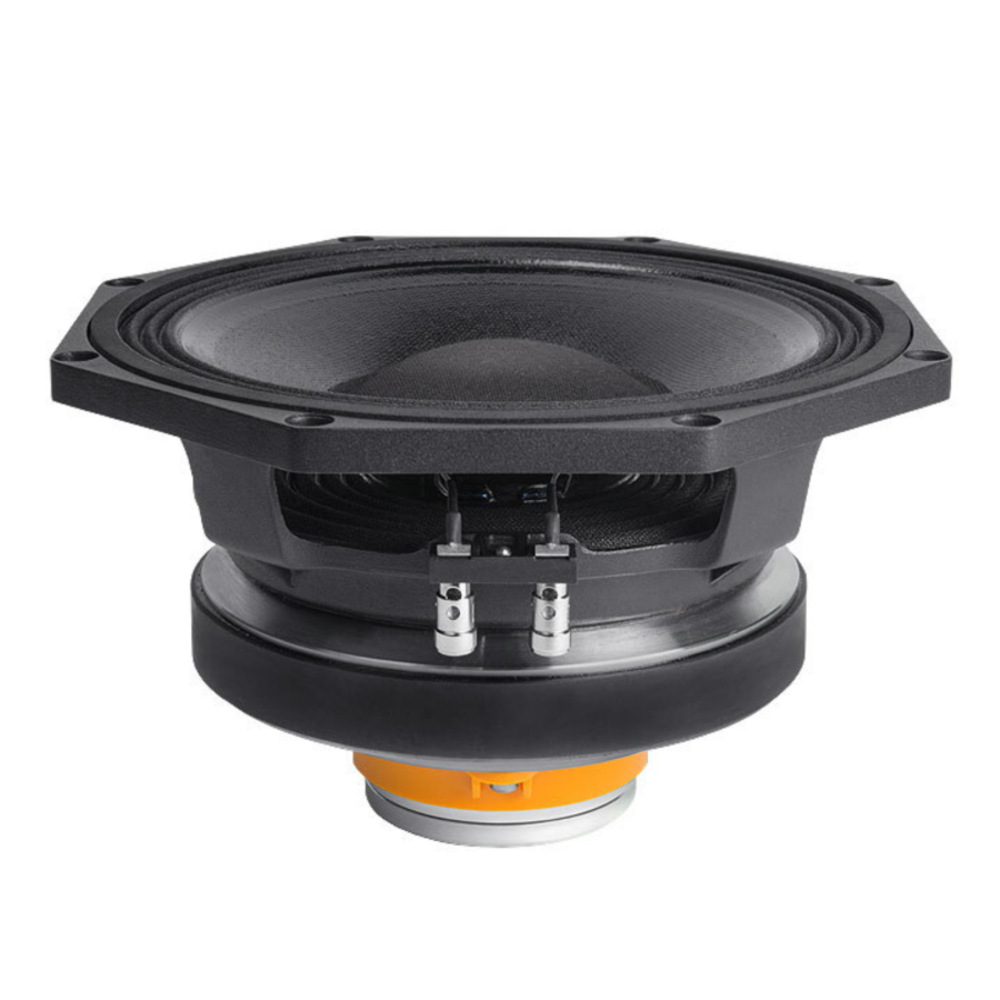

Faital Pro 8HX230 8ohm 8″ 250 watt 30 watt Coaxial Speaker

Faital Pro 8HX230 8ohm 8″ 250 watt 30 watt Coaxial Speaker

Technical Parameters { LF }

• Nom. Impedance: 8 Ohm
• Minimum Impedance: 8 Ohm
• AES Power Handling: 250 W
• Max Power Handling: 500 W
• Sensitivity (1W/1m) :94 dB
• Frequency Range: 70÷4000 Hz
• Voice Coil Diameter: 65 mm (2.56 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 15 mm (0.59 in)
• Magnetic Gap Depth: 8 mm (0.31 in)
• Flux Density: 1.12 T
• Min. Cross. Freq: –
• Dispersion Angle: –
• Diaphragm Material:  –
• Diaphragm Shape: –
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround: Triple Roll
• NET Air Volume filled by Loudspeaker: 1 dm^3 (0.035 ft^3)
• Spider Profile: 1x variable height waves

• Nom. Impedance: 8 Ohm
• Minimum Impedance: 7 Ohm
• AES Power Handling:  30 W
• Max Power Handling: 60 W
• Sensitivity (1W/1m): 105 dB
• Frequency Range: 1200÷20000 Hz
• Voice Coil Diameter:  37 mm (1.46 in)
• Winding Material: Al
• Former Material: Kapton
• Winding Depth: 2.1 mm (0.08 in)
• Magnetic Gap Depth: 2.6 mm (0.10 in)
• Flux Density:1.85 T
• Min. Cross. Freq: 1.7 kHz
• Dispersion Angle: 100°
• Diaphragm Material: Ketone Polymer
• Diaphragm Shape: Annular
• Magnet: Neodymium Ring

Thiele and small parameters { LF }

• Fs: 70 Hz
• Re [LF]: 6.5 Ohm
• Re [HF]: 5.5 Ohm
• Qes: 0.31
• Qms: 6.0
• Qts: 0.29
• Vas: 14.7 dm^3 (0.52 ft^3)
• Sd: 223 cm^2 (34.57 in^2)
• Xmax: 6.17 mm
• Xdamage: 15.5 mm
• Mms: 24.4 g
• Bl: 15 N/A
• Le: 0.59 mH
• Mmd: 20.6 g
• Cms: 0.21 mm/N
• Rms: 1.8 kg/s
• Eta Zero: 1.58 %
• EBP: 226 Hz

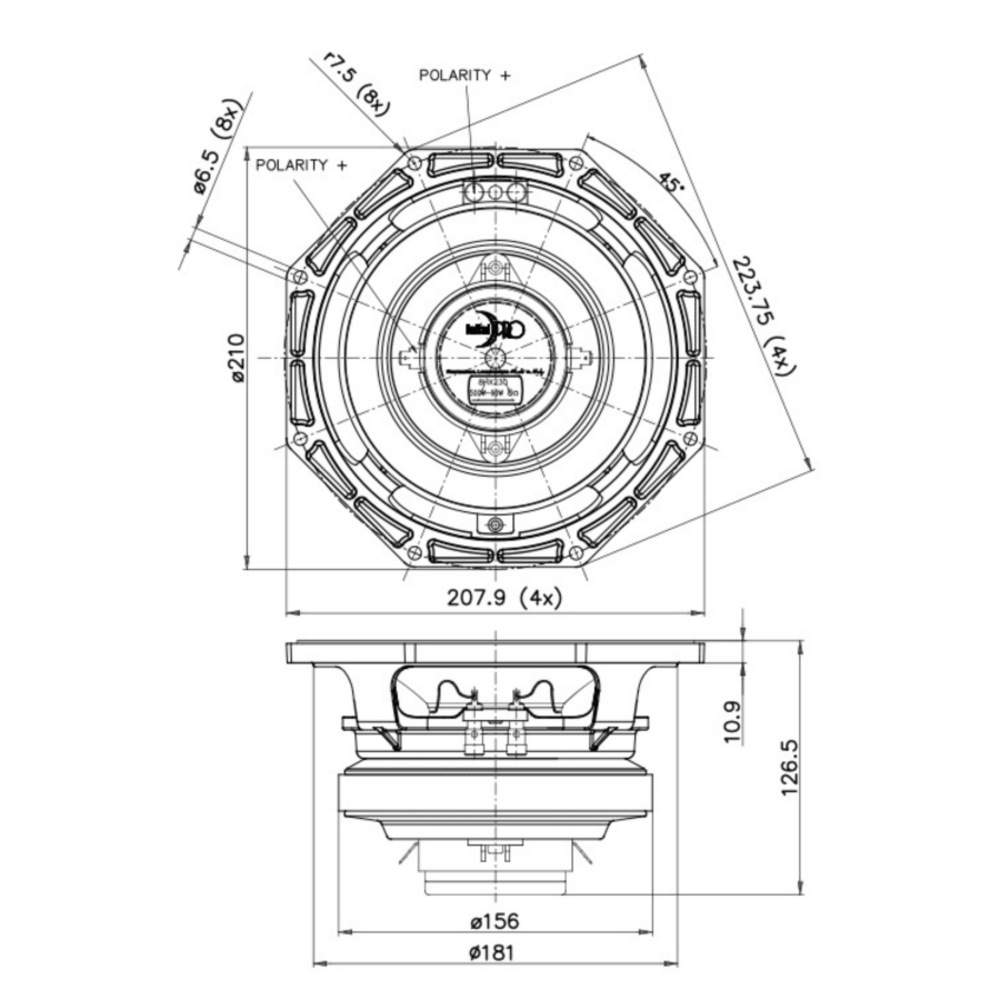

Dimensions:

• Nom. Diameter: 200 mm (8 in)
• Overall Diameter: 223.75/207.9 mm (8.81/8.18 in)
• Bolt Circle Diameter: 210 mm (8.27 in)
• Baffle Cutout Diameter: 183 mm (7.20 in)
• Depth: 126.5 mm (4.98 in)
• Flange and Gasket Thickness: 10.7 mm (0.42 in)
• Net Weight: 4.7 kg (10.4 lb)
• Shipping Box
• (Single Carton Box): 235 x 235 x 155 mm (9.3 x 9.3 x 6.1 in)
• Shipping Weight: 5 kg (11.0 lb)
