Faital Pro 12HP1030 4ohm 12″ 1000 watt Ferrite Speaker

Faital Pro 12HP1030 4ohm 12″ 1000 watt Ferrite Speaker

Product specifications:

• Nominal Impedance: 4 Ohm
• Minimum Impedance: 4 Ohm
• AES Power Handling: 1000 W
• Maximum Power Handling: 2000 W
• Sensitivity (1W/1m): 94 dB
• Frequency Range: 45÷1600 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 28.9 mm (1.14 in)
• Magnetic Gap Depth: 12 mm (0.47 in)
• Flux Density: 1.1 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround: Triple Roll
• NET Air Volume filled by Loudspeaker: 3.7 dm^3 (0.131 ft^3)
• Spider Profile: 2x non-adjacent symmetrical variable height waves

Thiele and small parameters:

• Fs: 45 Hz
• Re: 2.9 Ohm
• Qes: 0.28
• Qms: 9.4
• Qts: 0.27
• Vas: 33.2 dm^3 (1.17 ft^3)
• Sd: 518 cm^2 (80.29 in^2)
• Xmax: 12.45 mm
• Xdamage: 20.5 mm
• Mms: 141.0 g
• Bl: 20.5 N/A
• Le: 0.96 mH
• Mmd: 127.7 g
• Cms: 0.09 mm/N
• Rms: 4.3 kg/s
• Eta Zero: 1.07 %
• EBP: 161 Hz

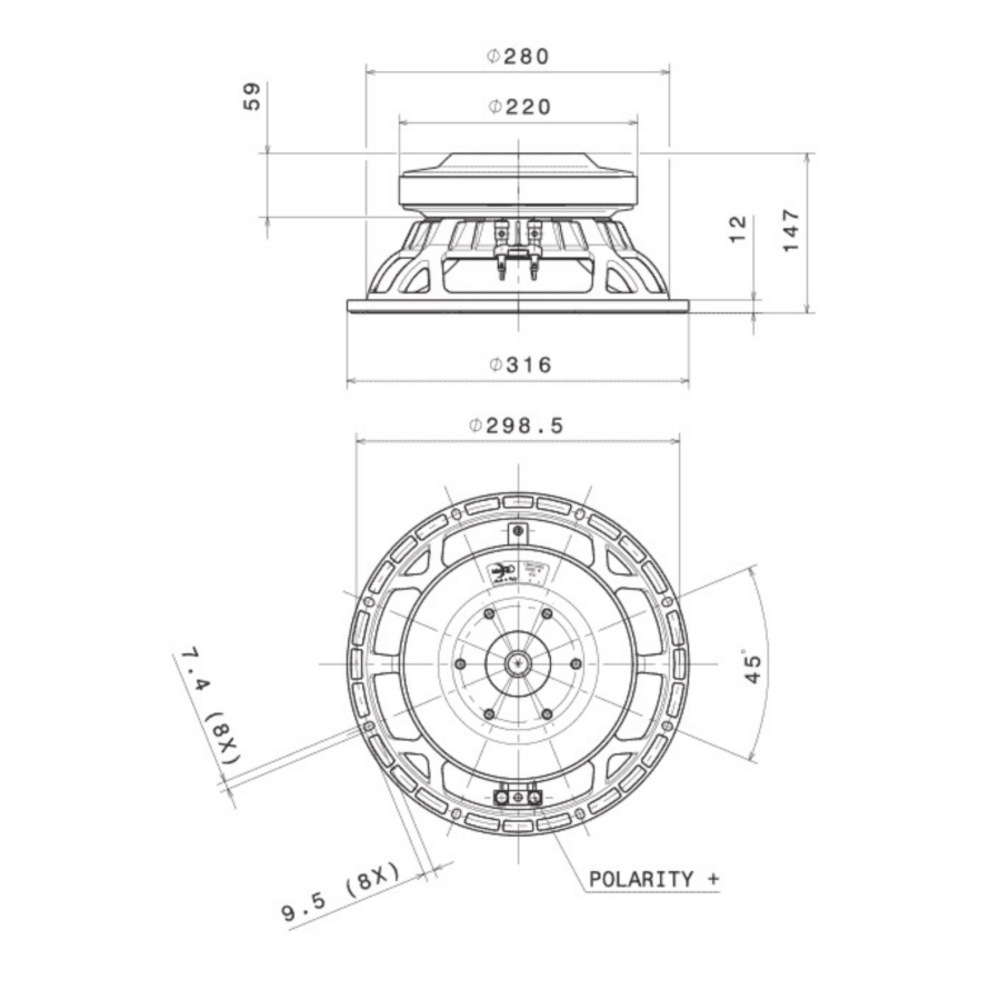

Mounting information:
