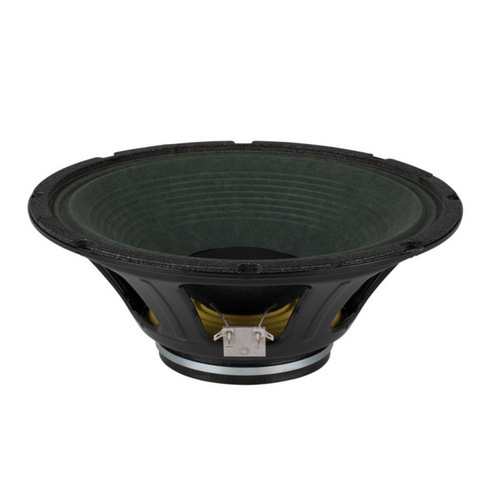

Eminence WheelHouse 200 15″ 200W 8 Ohm Bass Guitar Speaker

Eminence WheelHouse 200 15″ 200W 8 Ohm Bass Guitar Speaker

Product specifications:

• Nominal Basket Diameter 15″, 381 mm
• Nominal Impedance* 8 ohms
• Power Rating* Program Power N/A Watts 200 W
• Resonance 51 Hz
• Usable Frequency Range 60 Hz – 3.5 kHz
• Sensitivity* 101.5 dB
• Magnet Weight 11 oz.
• Gap Height 0.375″, 9.5 mm
• Voice Coil Diameter 2.5″, 64 mm

Thiele & small parameters:

• Resonant Frequency (fs) 51 Hz
• DC Resistance (Re) 7.49 ohms
• Coil Inductance (Le) 0.46m H
• Mechanical Q (Qms) 16.85
• Electromagnetic Q (Qes) 0.46
• Total Q (Qts) 0.45
• Compliance Equivalent Volume (Vas) 182.73 liters / 6.45 cu.ft.
• Peak Diaphragm Displacement Volume (Vd) 175.8 cc
• Mechanical Compliance of Suspension (Cms) 0.21 mm/N
• BL Product (BL) 15.58 T-M
• Diaphragm Mass Inc. Airload (MMs) 47 grams
• Efficiency Bandwidth Product (EBP) 111 Maximum Linear Excursion (Xmax) 2.22 mm
• Surface Area of Cone (Sd) 791.7 cm2
• Maximum Mechanical Limit (Xlim) 0 mm

Mounting information:

• Recommended Enclosure Volume Sealed N/a Vented N/a
• Driver Volume Displaced 0.128 cu.ft. / 3.62 liters
• Overall Diameter 15.16″, 385.1 mm
• Baffle Hole Diameter 13.87″, 352.3 mm
• Front Sealing Gasket Yes
• Rear Sealing Gasket N/A
• Mounting Holes Diameter 0.25″, 6.4mm
• Mounting Holes B.C.D. 14.56″, 369.8mm
• Depth 5.63″, 142.9 mm
• Net Weight 8.2 lbs, 3.72 kg
• Shipping Weight 10.4 lbs, 4.72 kgs

Materials:

• Coil Construction Edge Wound Aluminum
• Coil Former Polyimide former
• Magnet Composition Neodymium Magnet
• Core Details Vented core
• Basket Materials Pressed steel basket
• Cone Composition Cone Edge Composition Full molded paper
• Dust Cap Composition Treated paper
