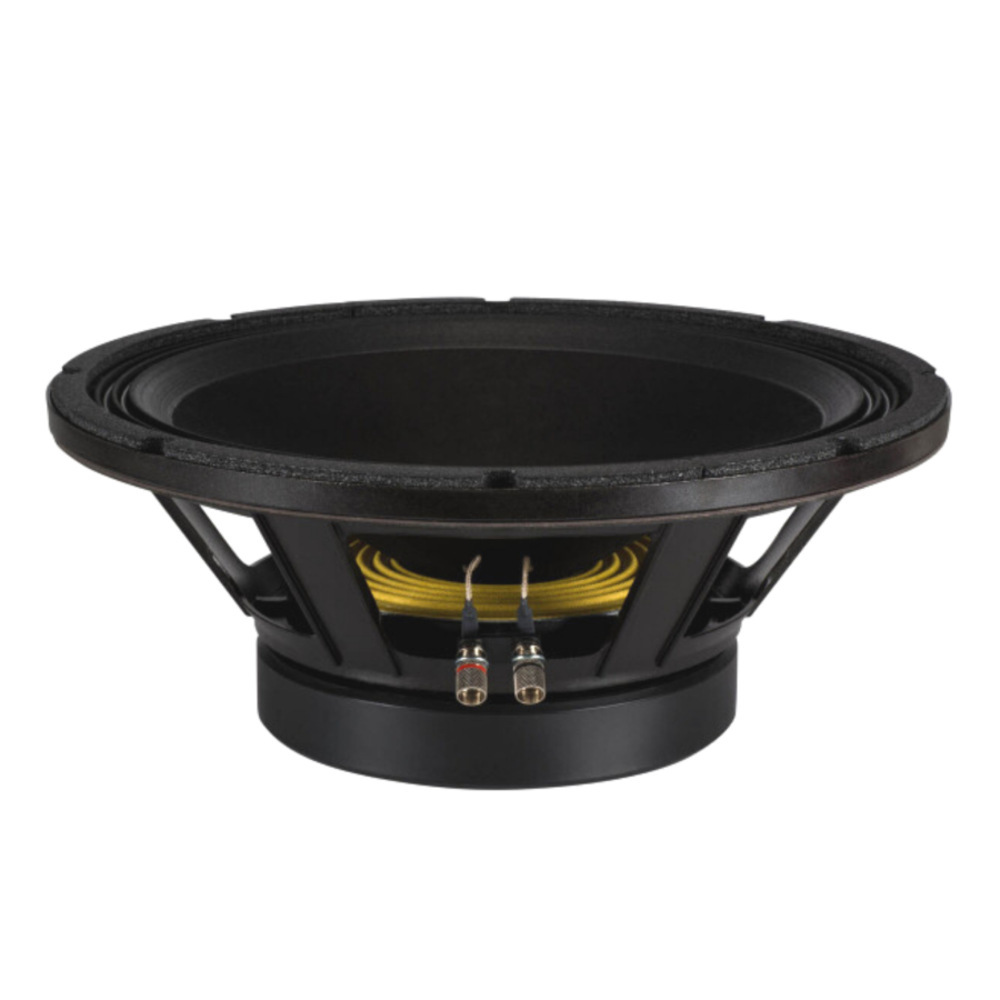

Eminence Kappa Pro 15LFC – 15″ 600W 4 Ohm

Key Features

• High power handling combined with high sensitivity
• Vented pole piece for motor cooling
• 4 ohm impedance
• RMS Power Rating: 600 Watts
• Program Power Rating: 1,200 Watts

Pro 15LFC specifications:

• Nominal Basket Diameter: 15″ / 381mm
• Impedance: 4 ohms
• RMS Power Rating: 600 Watts
• Program Power Rating: 1,200 Watts
• Frequency Response: 38Hz – 1.8kHz
• Sensitivity: (1W/1m) 96.8dB
• Voice Coil Diameter: 3″ / 76.2mm
• Gap Height: .375″ / 9.52mm
• Magnet Weight: 120 oz.
• Rec. Enclosure Volume(Vented): 2.7-5.8cu. ft./76.5-164 Liters

Thiele-Small Parameters:

• Resonant Frequency: (fs) 37 Hz
• Impedance (Re): 3.34 ohms
• Coil Inductance (Le): .94mH
• Electromagnetic Q (Qes): .33
• Mechanical Q (Qms): 10
• Total Q (Qts): .32
• Diaphragm Mass (Mms): 99 Grams
• Compliance Equivalent Vol. (Vas): 183.23 Liters/6.47cu. ft.
• Voice Coil Overhang (Xmax): 7.9mm
• BL Factor (BL): 15.4T-M
• Surface Area of Cone (Sd): .08563 m2

Materials:

• Cone: Paper
• Former Material: Kapton
• Voice Coil: Copper
• Magnet: Ferrite
• Core: Vented & Extended
• Basket: Die-Cast Aluminum
• Surround: Cloth
• Dust Cap: Solid Composition Paper

Mounting information:

• Overall Diameter: 15.21″ / 386.3mm
• Bolt Circle Diameter: 14.56″ / 369.8mm
• Baffle Cutout Diameter: 14.0″ / 355.6mm
• No. Of Mounting Holes: 8
• Mounting Hole Diameter: 0.28″ / 7.1mm
• Overall Depth: 6.57″ / 166.9mm
• Net Weight: 22.3 lbs. / 10.1kg.
• Shipping Weight: 24.8 lbs. / 11.2kg
