Eighteen Sound ND1020 8 Ohm 1″ 30W Compression Driver
£110.07
- 108,5 dB SPL 1W / 1m average sensitivity 1 inch exit throat
- 34,4 mm (1 1/3 inch) voice coil diameter
- Polyethylene Diaphragm
- 60W Program Power Handling
- Compact Lightweight Neodymium
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands.
Available on back-order
Email when stock available

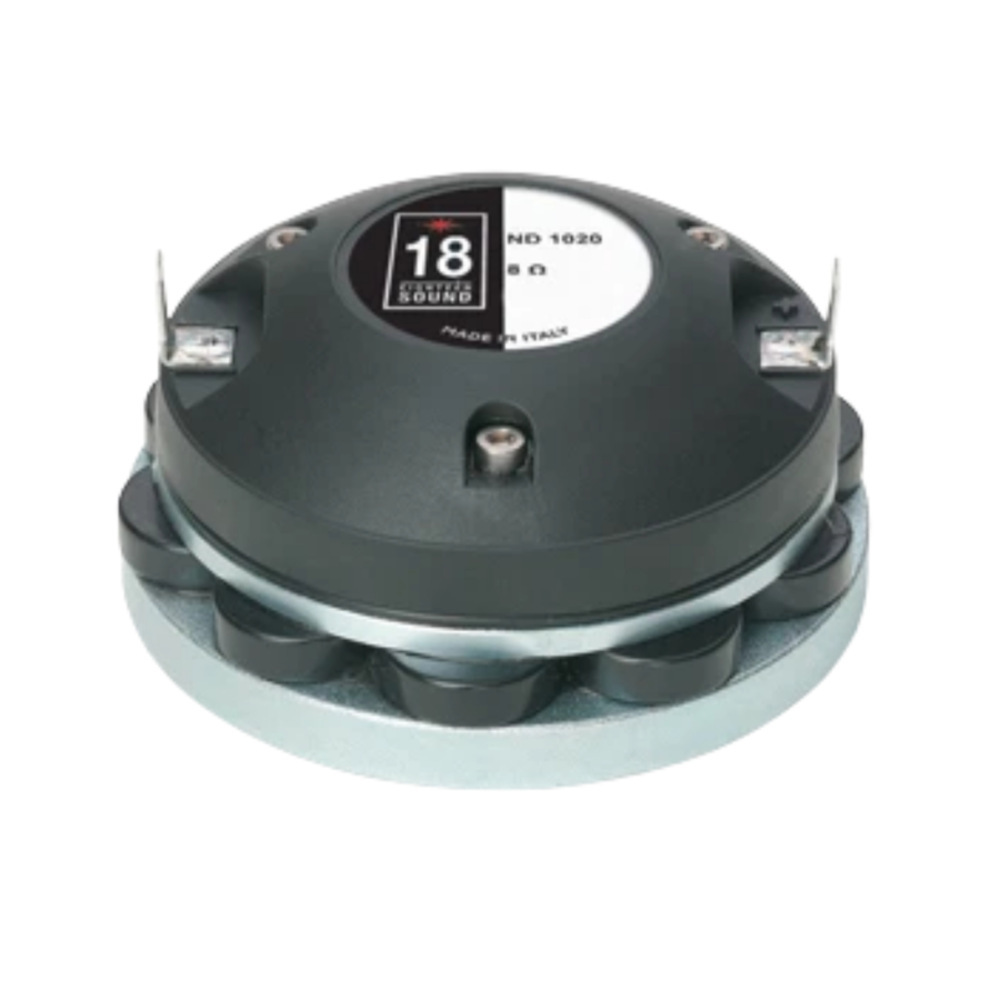

Eighteen Sound ND1020 8 Ohm 1″ 30W Compression Driver
Product description:
Eighteen Sound ND1020 1-inch exit high frequency compression driver has been designed for use in situations where the highest possible sound quality is required. Polyethylene Naphthalate (PEN) has been used for the diaphragm assembly, giving to ND1020 a superior diaphragm dimensional stability compared to conventional Mylar film (160°C as a thermal rating compared to 105°C for PET) and maintaining a constant performance during its whole working life.
PEN film, with its very high value of elasticity modulus (6000MPa compared to 4000MPa for PET and 2800MPa for polyimide film), is capable of a superior
PEN film, with its very high value of elasticity modulus (6000MPa compared to 4000MPa for PET and 2800MPa for polyimide film), is capable of a superior
transient and intermodulation distortion response.
The flat punched suspension shape has been designed to maintain low stiffness for superior low mid band distortion and response.
The flat punched suspension shape has been designed to maintain low stiffness for superior low mid band distortion and response.
Key features:
- 108,5 dB SPL 1W / 1m average sensitivity 1 inch exit throat
- 34,4 mm (1 1/3 inch) voice coil diameter
- Polyethylene Diaphragm
- 60W Program Power Handling
- Compact Lightweight Neodymium
- Structure Proprietary Phase Plug design
ND1020 specifications:
- Throat Diameter: 25 mm (1.0 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.5 Ω
- Nominal Power Handling: 30 W
- Continuous Power Handling: 60 W
- Sensitivity: 108.5 dB
- Frequency Range: 1.6 – 20.0 kHz
- Recommended Crossover: 1.6 kHz
- Voice Coil Diameter: 34 mm (1.34 in)
- Winding Material: Aluminum
- Diaphragm Material: Treated polyethylene
- Magnet Material: Neodymium
Mounting information:
- Overall Diameter: 85 mm (3.35 in)
- Depth: 40 mm (1.57 in)
- Net Weight: 0.7 kg (1.54 lb)
- Shipping Weight: 0.75 kg ( lb)
- Shipping Box: 97x97x58 mm (3.82×3.82×2.2 8 in)
Why Choose Lean Business Audio?
50 years of experience of designing, building and supplying Home, Car and Professional Audio.
Huge stocks of leading loudspeakers and audio brands
KEF, Celestion, Eminence, WGS, Montage, BMS Speakers, Faital Pro, Eighteen Sound, Ciare
Low Worldwide shipping rates.
Free Delivery on selected brands with the UK.
Price matching.
For more information please contact us at: +44(0)1473 744089
Or Email us at: sales@lean-business.co.uk
| Weight | 1 kg |
|---|---|
| Brand | Eighteen Sound |
| Magnet type | Neodymium |
| Size | 1" |
