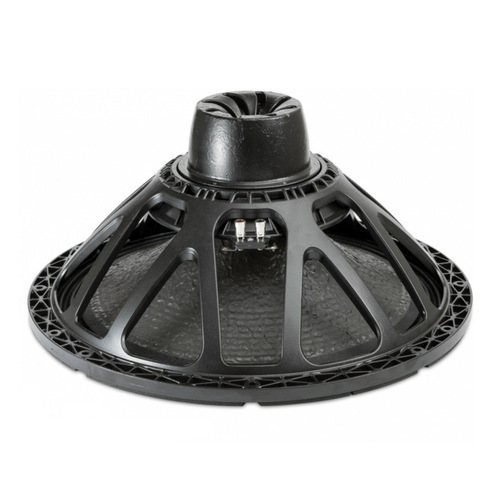

Eighteen Sound 21NLW4000 4 Ohm 21″ 1500W Loudspeaker

Eighteen Sound 21NLW4000 4 Ohm 21″ 1500W Loudspeaker

Key features:

• 94 dB SPL 1W / 1m sensitivity
• 100 mm (4 in) Interleaved Sandwich Voice coil (ISV)
• 3200 W program power handling
• 70 mm (2,76 in) peak to peak excursion
• Single Demodulating Ring (SDR) for lower distortion
• Composite reinforced straight ribbed cone
• Optimized high grade neodymium magnet assembly
• Recommended for subwoofer usage in vented enclosure

21NLW4000 specifications:

• Nominal Diameter: 533 mm ( in)
• Nominal Impedance: 4 Ω
• Minimum Impedance: 3.0 Ω
• Nominal Power Handling1: 1600 W
• Continuous Power Handling2: 3200 W
• Sensitivity3: 94.0 dB
• Frequency Range 30 – 1800 Hz
• Voice Coil Diameter 100 mm (4.0 in)

Thiele Small parameters:

• Resonance Frequency: 27 Hz
• Re: 2.6
• Qes: 0.39
• Qms: 16.3
• Qts: 0.38
• Vas: 380.0
• Dm3: (13.42 ft3)
• Sd: 1660.0 cm2 (257.3 in2 )
• η₀: 1.9 %
• Xmax: 15.0 mm
• Mms: 355.0 g
• Bl: 20.0
• Txm Le: 1.3 mH
• EBP: 69 Hz

Mounting information:

• Overall Diameter: 545 mm (21.46 in)
• Bolt Circle Diameter: 520 mm (20.47 in)
• Baffle Cutout Diameter: 492.0 mm (19.37 in)
• Depth: 245 mm (9.65 in)
• Flange and Gasket Thickness: 18 mm (0.71 in)
• Net Weight: 11.6 kg (25.57 lb)
• Shipping Weight: 13.1 kg (28.88 lb)
• Shipping Box: 570x570x290 mm (22.44×22.44x 11.42 in)
